3M Products & Supplies

Scotch® Linerless Rubber Splicing Tape 130C, 1 in x 30 ft, Black, 1 roll/carton, 24 rolls/Case - 7000006090

Sold As: 24-Pack
SKU: 7000006090
MPN: 7000006090
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007417538
3M ID: 80610833750
5 Digit UPC: 41753
$776.57 ($32.36 / Count)
Hurry up! Current stock:

Product Description

Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.

Features

  • Withstands temperatures up to 194 °F (90 °C)
  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Provides an excellent thermal dissipation of splice heat
  • ASTM Approved and RoHS 2011/65/EU Compliant
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Elongation at Break850
Overall Length (Metric) UOMm
Specifications MetASTM D-4325, ASTM D-4388 Type 1, 2 & 3, HH-I-553C, RoHS 2011/65/EU
Overall Width (Imperial)1.0
Backing (Carrier) MaterialEthylene Rubber
Tensile Strength (Imperial)250.0
Insulation Resistance>10^15 ohms
Tensile Strength (Metric) UOMkPa
Application/IndustryAppliance and Fixture; Commercial Construction; Communications; Industrial Construction; Maintenance and Repair Operations; Mining; Solar; Utility; Wind Power
Minimum Operating Temperature (Celsius) UOMDegree

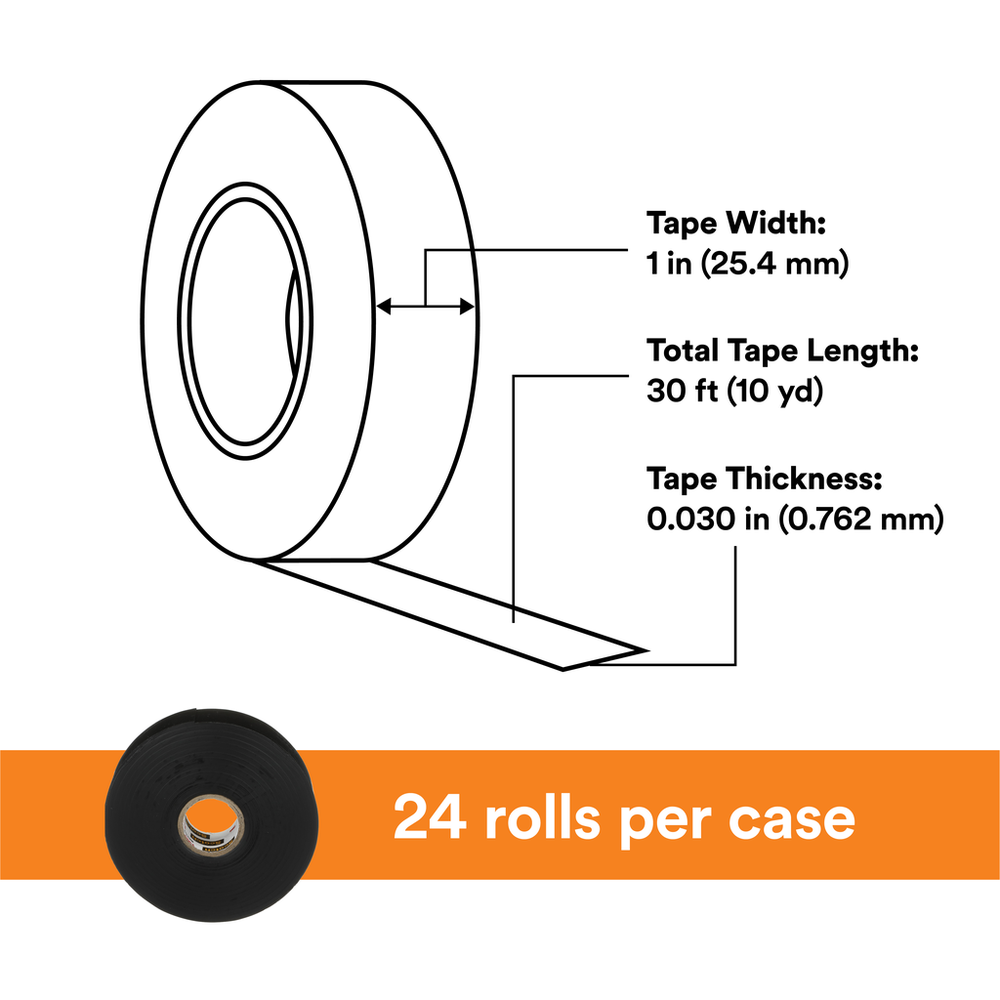

Total Tape Thickness without Liner (Metric)0.76
Minimum Operating Temperature (Celsius)0.0
ApplicationInsulation
Tape GradeProfessional
Adhesive TypeRubber
Product MarketsElectrical Construction
Overall Width (Metric)25.4

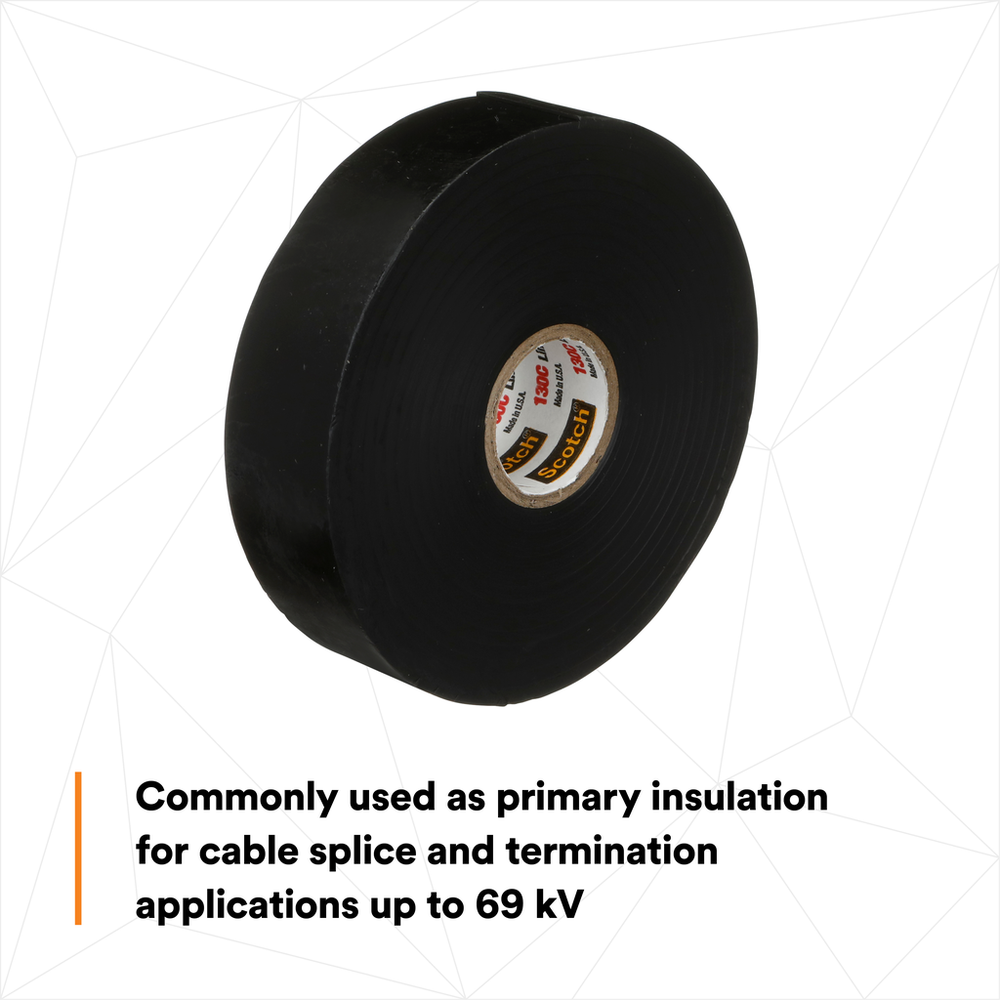

Voltage Rating69 kV
Overall Length (Metric)9.1
Total Tape Thickness without Liner (Imperial)30.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)30.0
Overall Length (Imperial) UOMft
Backing (Carrier) Thickness (Imperial) UOMmil
Rolls per Case24.0
Shelf Life UOMYear
Dielectric Strength UOMV/mil
Dielectric Strength750.0

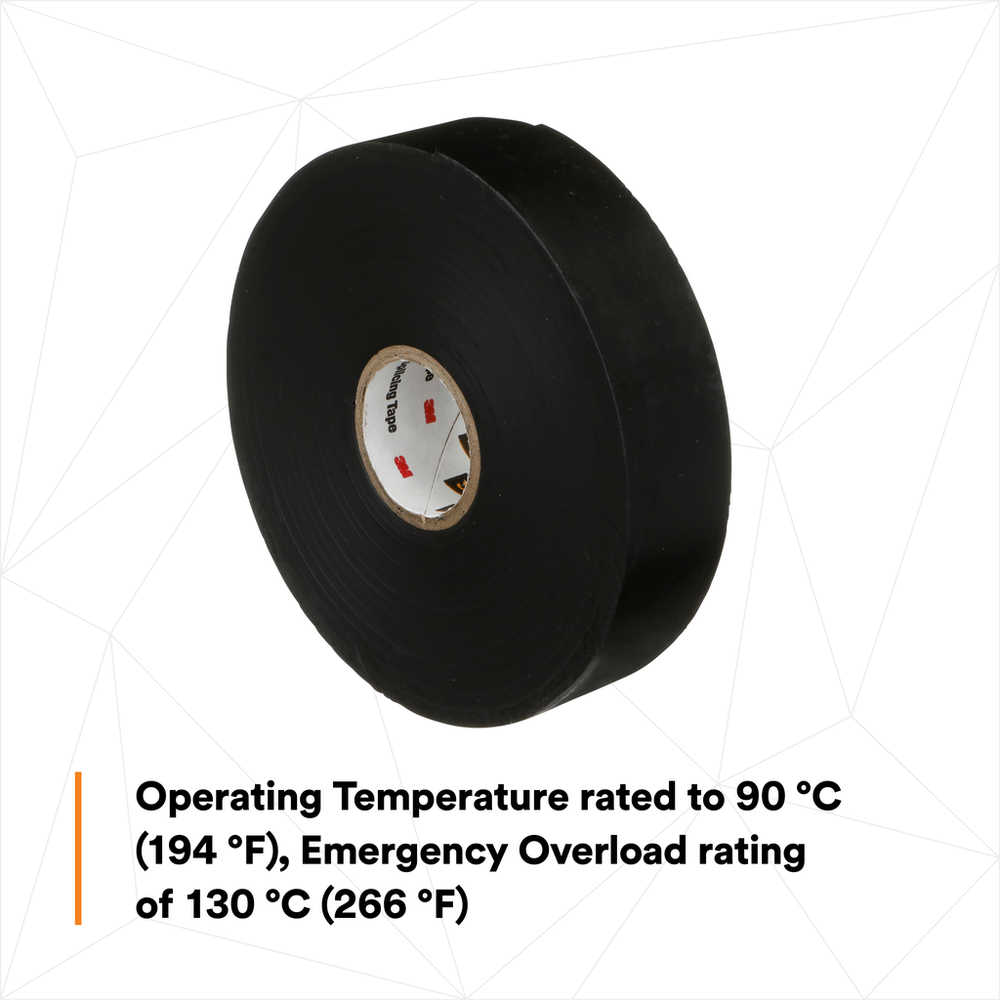

Maximum Operating Temperature (Fahrenheit)194.0
Backing (Carrier) Thickness (Metric)0.76
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)1723.0
Rolls per Carton1.0
Product ColorBlack
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)90.0
FeaturesSelf-sticking; UV-resistant; Vulcanizing
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)30.0
