3M Products & Supplies

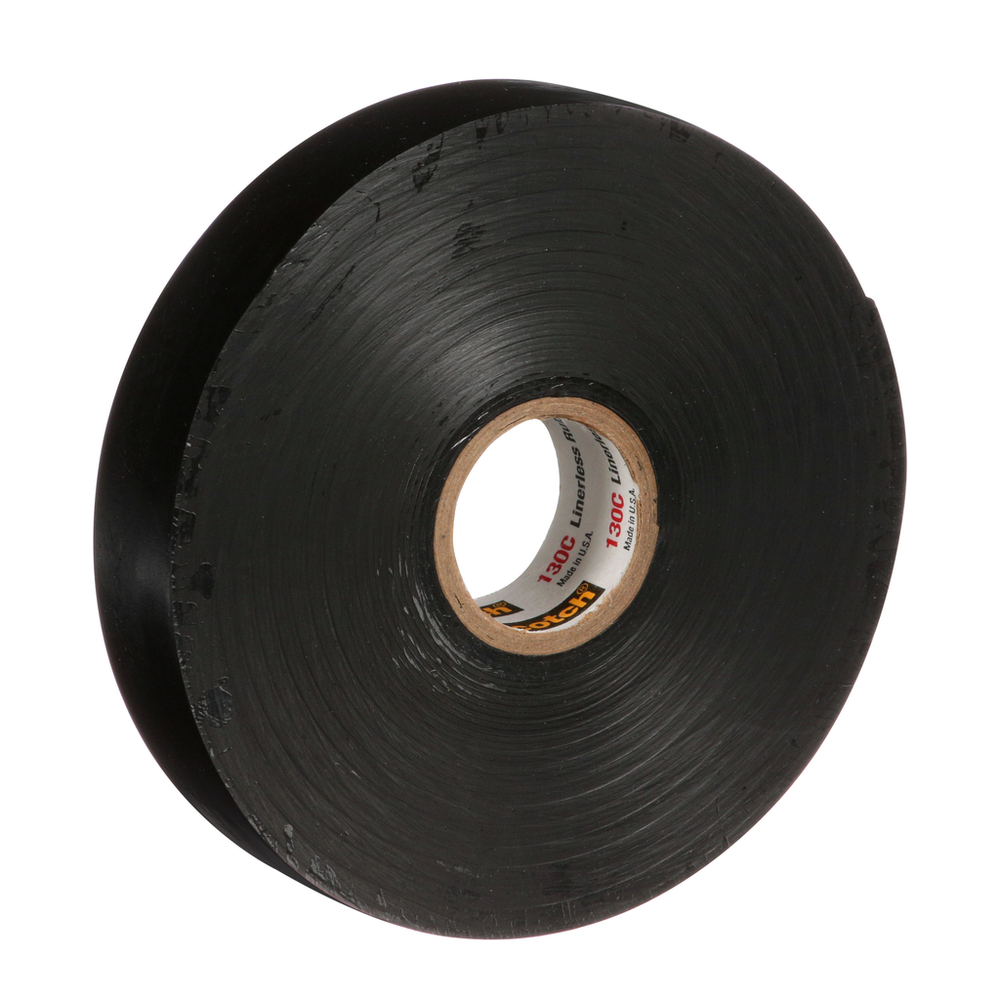

Scotch® Linerless Rubber Splicing Tape 130C, 3/4 in x 30 ft, Black, 1 roll/carton, 24 rolls/Case - 7000006085

Sold As: 24-Pack
SKU: 7000006085
MPN: 7000006085
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007417170
3M ID: 80610833404
5 Digit UPC: 41717
$593.35 ($24.72 / Count)
Hurry up! Current stock:

Product Description

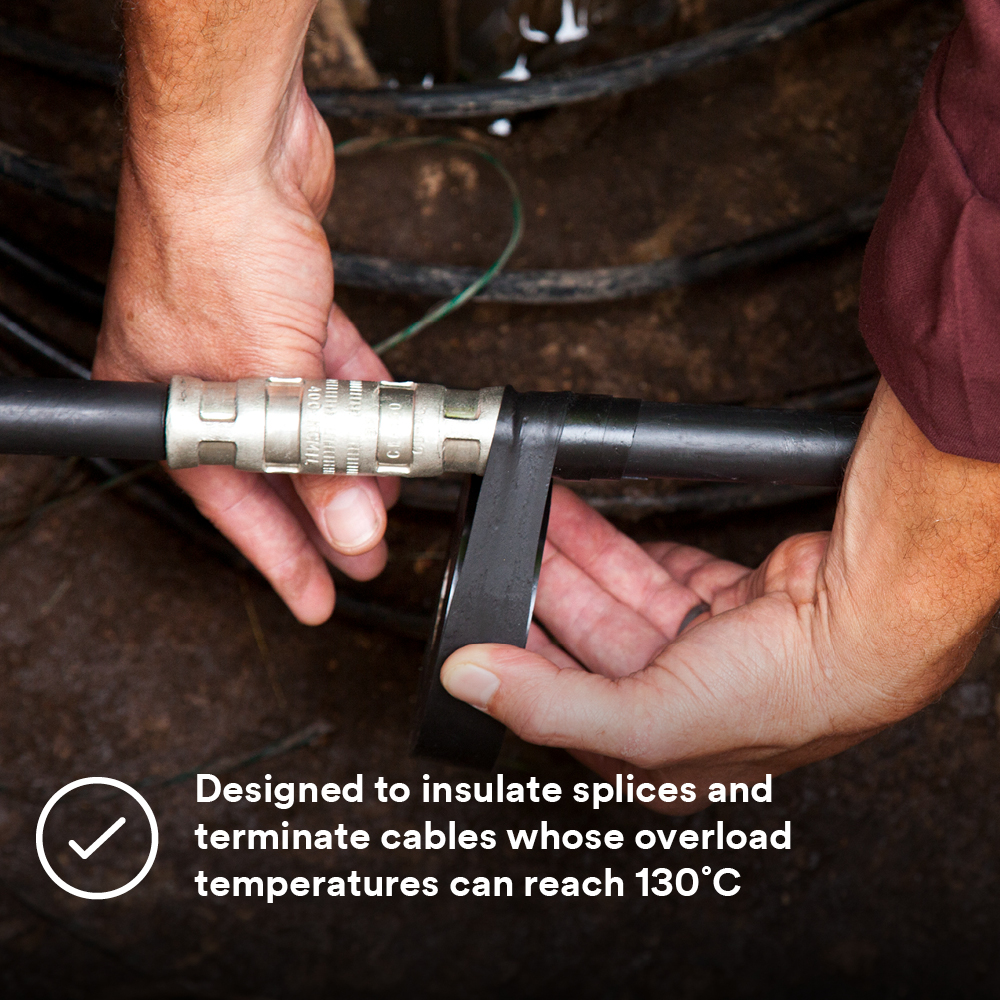

Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.

Features

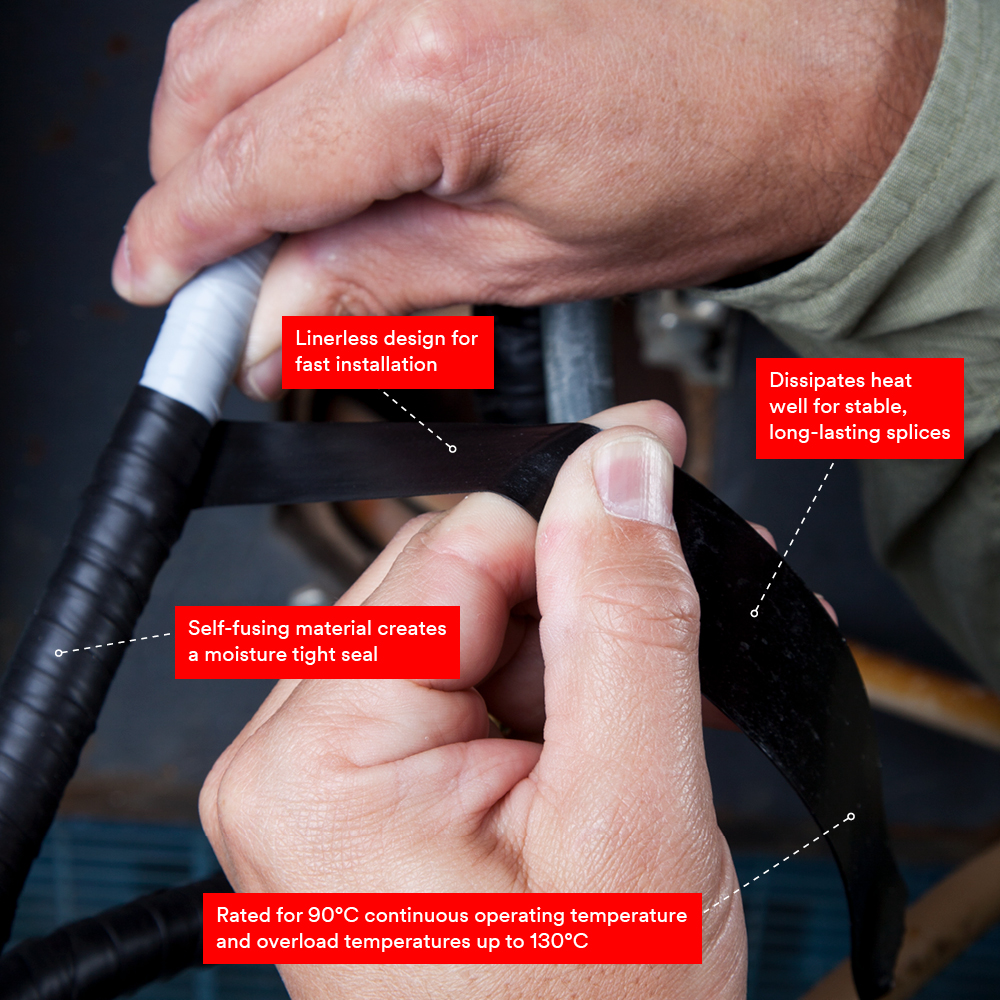

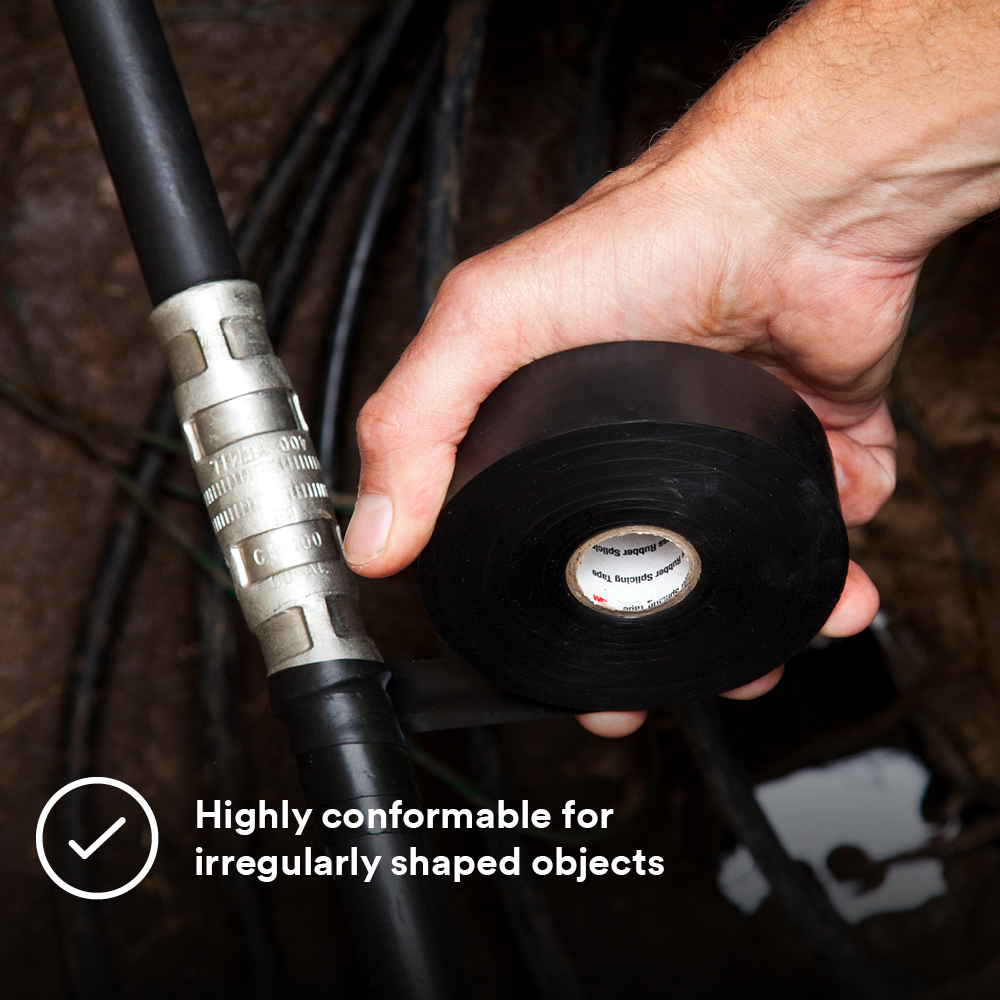

  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance

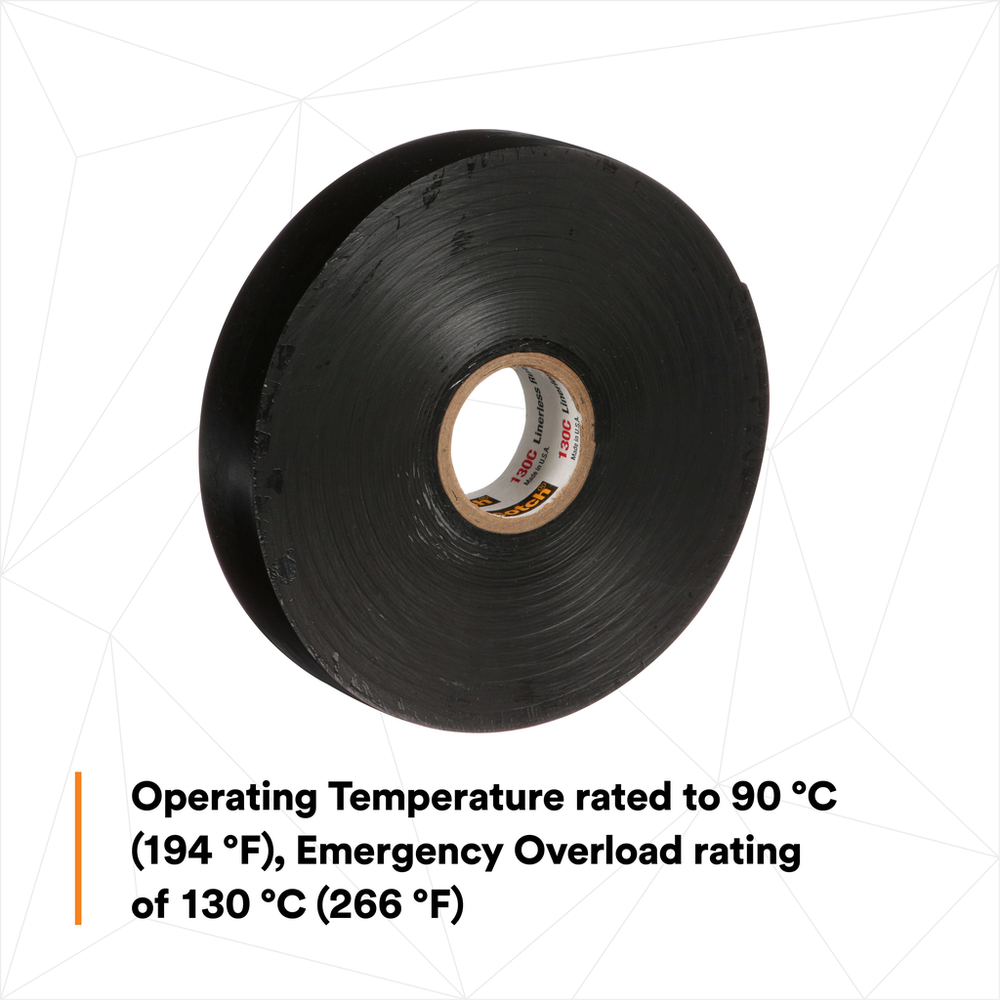

  • Withstands temperatures up to 194 °F (90 °C)
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • Provides an excellent thermal dissipation of splice heat

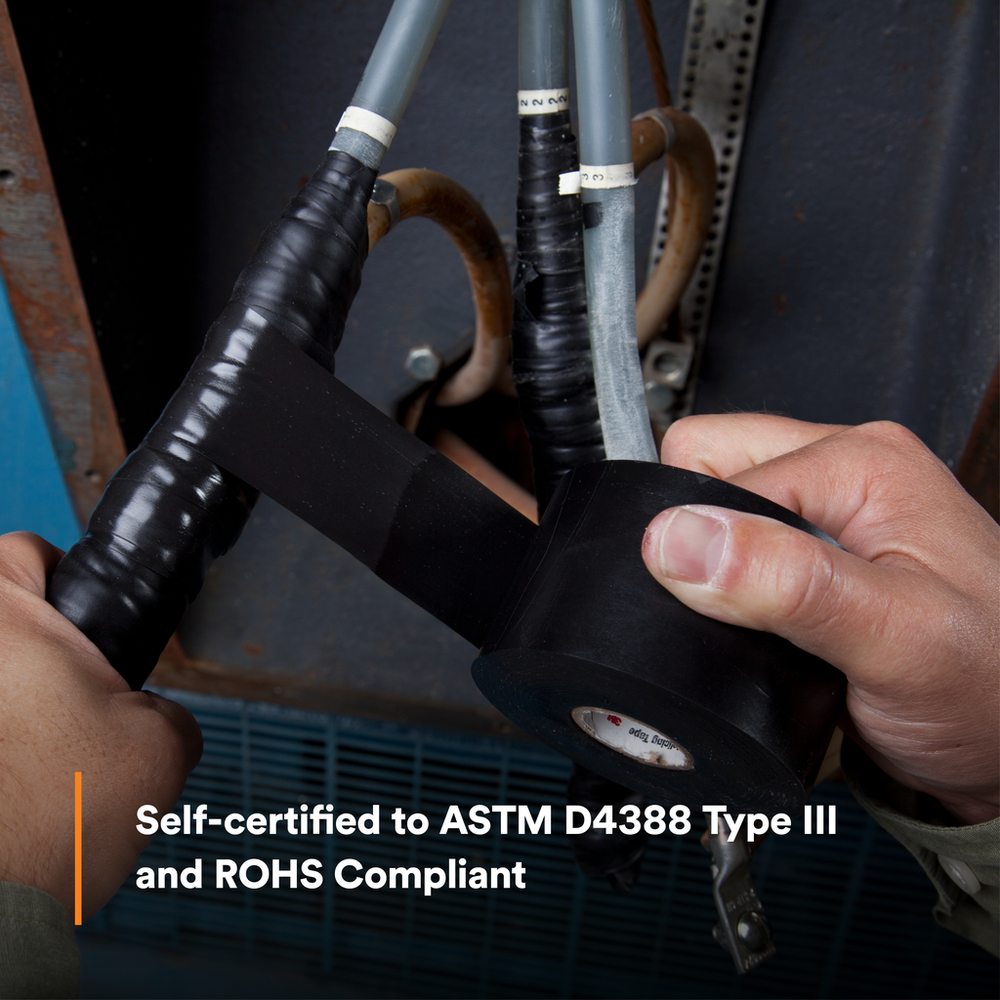

  • ASTM Approved and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)30.0
Elongation at Break850
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life1825
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)194.0
Insulation Resistance>10^15 ohms
Application/IndustryAppliance and Fixture; Commercial Construction; Communications; Industrial Construction; Maintenance and Repair Operations; Mining; Solar; Utility; Wind Power
Overall Length (Metric)9.1
Tensile Strength (Imperial)250.0
Overall Width (Imperial)0.75
Adhesive TypeRubber
FeaturesSelf-sticking; UV-resistant; Vulcanizing
Voltage Rating69 kV
Backing (Carrier) MaterialEthylene Rubber
Product MarketsElectrical Construction
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial)30.0
Overall Length (Imperial) UOMft
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Imperial)30.0
Rolls per Carton1.0
Specifications MetASTM D-4325, ASTM D-4388 Type 1, 2 & 3, HH-I-553C, RoHS 2011/65/EU
Product ColorBlack
Minimum Operating Temperature (Celsius)0.0
Total Tape Thickness without Liner (Metric)0.76
Shelf Life UOMYear
Overall Width (Metric)19.0
Tape GradeProfessional
ApplicationInsulation
Dielectric Strength UOMV/mil
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)90.0
Units per Case24.0
Overall Width (Imperial) UOMin
Tensile Strength (Metric)1723.0
Backing (Carrier) Thickness (Metric)0.76
Rolls per Case24.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Dielectric Strength750.0
Tensile Strength (Metric) UOMkPa
