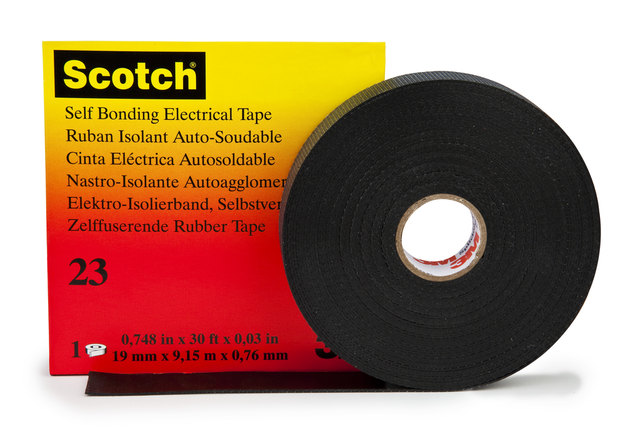

Scotch® Rubber Splicing Tape 23, 25 mm x 9.15 m - 7000090118

Sold As: 32-Pack
SKU: 7000034850
MPN: 7000090118
Stock Item: Stock items typically ship within 2-3 business days
UPC: 07891040003969
3M ID: HT002001283
5 Digit UPC: 396
$1,271.87 ($39.75 / Count)
Hurry up! Current stock:

Product Description

At a Glance

Scotch 23 is a 30 mil, self-fusing ethylene propylene rubber (EPR) splicing tape. Stretched and wrapped, it fuses into a solid rubber layer that insulates and seals electrical splices and terminations, rated up to 69 kV.

Best for

  • Insulating splices and terminations on power cables
  • Moisture-sealing electrical connections
  • Electrical maintenance in construction, mining, solar and wind power

Specifications

Backing Ethylene propylene rubber, self-fusing
Thickness 30 mil (0.76 mm)
Voltage rating Up to 69 kV
Continuous temperature 194°F (90°C)
Roll size 1 in x 30 ft, black
Liner Polyester, won't stick to the tape on unwind
Pack 32 rolls per case

FAQ

How do I apply self-fusing tape? Remove the liner, stretch the tape and wrap with a half-lap so each turn overlaps the one before. The layers fuse together into one piece.

Do I need to cover it with vinyl tape? Usually, yes. Rubber splicing tape is normally overwrapped with a vinyl electrical tape for abrasion and UV protection.

Shop more rubber electrical tapes.

Scotch® Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 °F (90 °C).

Features

  • Temperature rated for continuous adhesion to 194°F (90°C)
  • Special polyester liner keeps tape protected and clean during application
  • Self-fusing, ethylene propylene rubber backing and highly conformable, rubber-resin adhesive
  • ASTM Approved & RoHS 2002/65/EC Compliant
Spec Sheet



Downloads

Spec Sheet

Specifications

Shelf Life1825
Country of OriginBrazil
Tensile Strength (Metric)55.0
Overall Width (Metric) UOMmm
Backing (Carrier) MaterialEthylene Propylene Rubber
FeaturesSelf-sticking; Vulcanizing
Insulation Resistance> 10^6 megohms
Adhesive TypeRubber
Maximum Operating Temperature (Fahrenheit)194.0
Specifications MetRoHS 2011/65/EU
Overall Width (Metric)25.0
Product MarketsElectrical Construction
Overall Length (Metric)9.15
Backing (Carrier) Thickness (Metric)0.76
Tape GradeProfessional
ApplicationElectrical Maintenance; Insulation; Sealing
Shelf Life UOMYear
Overall Width (Imperial)0.984
Maximum Operating Temperature (Celsius)130.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius)0.0
Dielectric Strength UOMV/mil
Dielectric Strength800.0
Tensile Strength (Imperial)8.0
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Voltage Rating69 kV
Total Tape Thickness without Liner (Imperial)30.0
Total Tape Thickness without Liner (Metric) UOMmm
Application/IndustryCommercial Construction; Industrial Construction; Maintenance and Repair Operations; Mining; Residential Construction; Solar; Wind Power
Overall Length (Imperial)30.019
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Imperial) UOMft
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.76
Tensile Strength (Metric) UOMkPa
Product ColorBlack
Elongation at Break800
