3M Products & Supplies

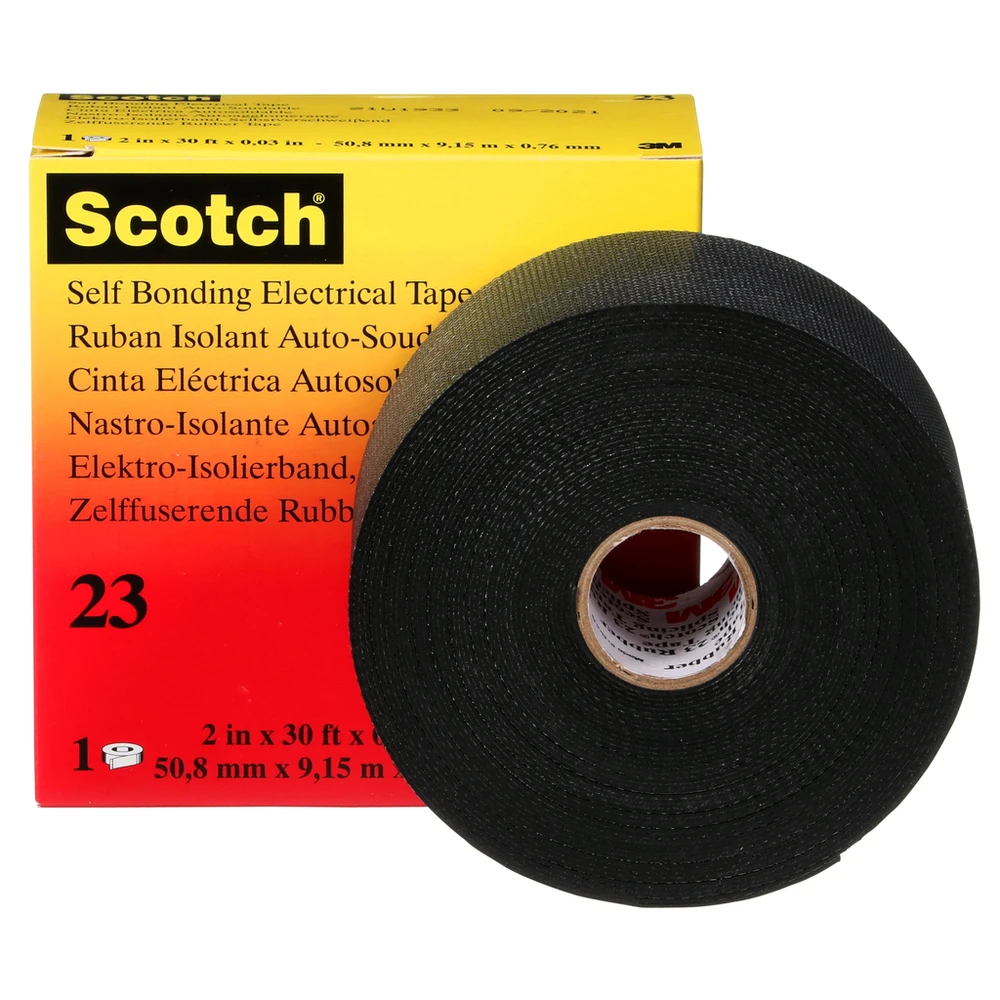

Scotch® Rubber Splicing Tape 23, 2 in x 30 ft, Black, 1 roll/carton, 16 rolls/Case - 7000138512

Sold As: 16-Pack
SKU: 7000138512
MPN: 7000138512
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007150336
3M ID: HC000599767
5 Digit UPC: 15033
$1,342.06 ($83.88 / Count)
Hurry up! Current stock:

Product Description

Scotch® Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 °F (90 °C).

Features

  • ASTM Approved & RoHS 2002/65/EC Compliant
  • Temperature rated for continuous adhesion to 194°F (90°C)

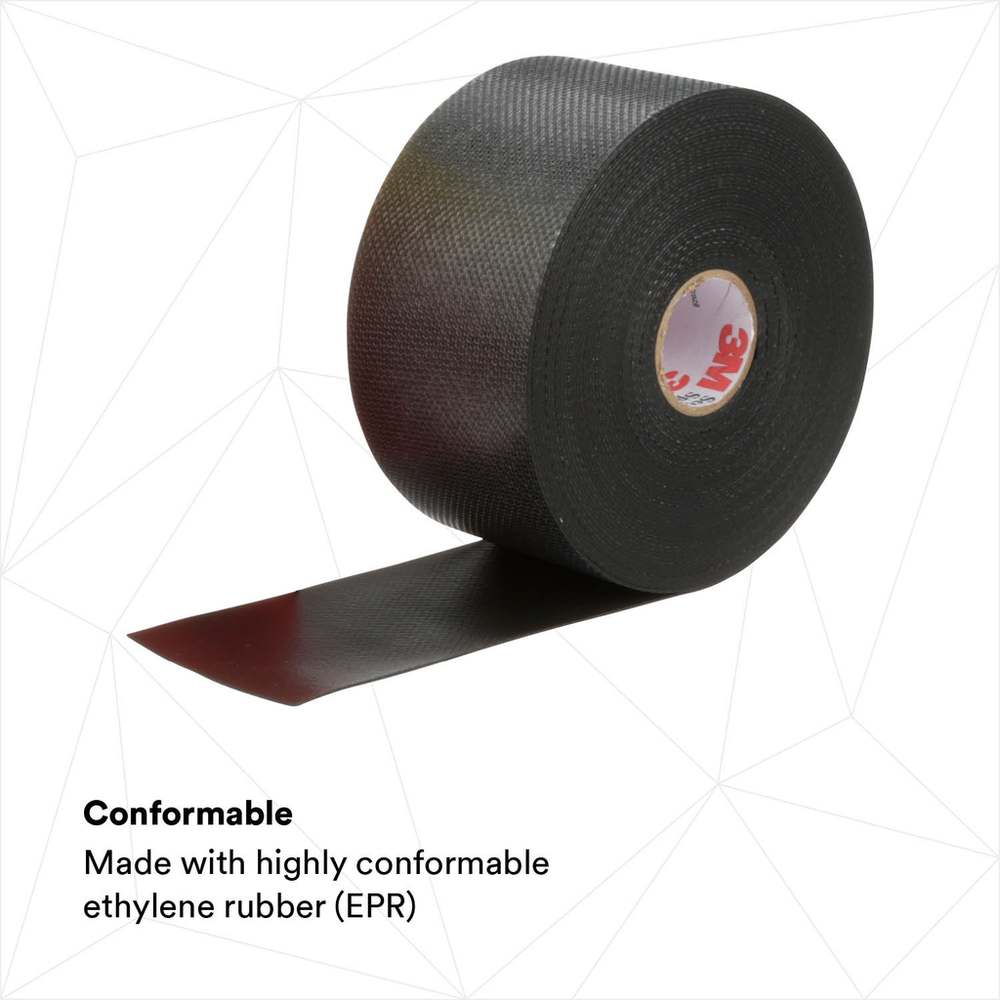

  • Self-fusing, ethylene propylene rubber backing and highly conformable, rubber-resin adhesive
  • Special polyester liner keeps tape protected and clean during application
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginBrazil
Total Tape Thickness without Liner (Imperial)30.0
Overall Length (Metric)9.1
Product MarketsElectrical Construction
Overall Width (Imperial)2.0
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Elongation at Break1000
Insulation Resistance> 10^6 megohms
Backing (Carrier) MaterialEthylene Propylene Rubber
Maximum Operating Temperature (Celsius)90.0
Total Tape Thickness without Liner (Metric)0.76
Specifications MetASTM D-4388 Type 1, 2 & 3, RoHS 2011/65/EU
Adhesive TypeNon-adhesive
Shelf Life UOMYear
Dielectric Strength UOMV/mil
Rolls per Carton1.0
Tensile Strength (Metric)55.0
ApplicationElectrical Maintenance; Insulation
Application/IndustryCommercial Construction; Industrial Construction; Maintenance and Repair Operations; Mining; Residential Construction; Solar; Wind Power
Dielectric Strength800.0
Minimum Operating Temperature (Celsius) UOMDegree

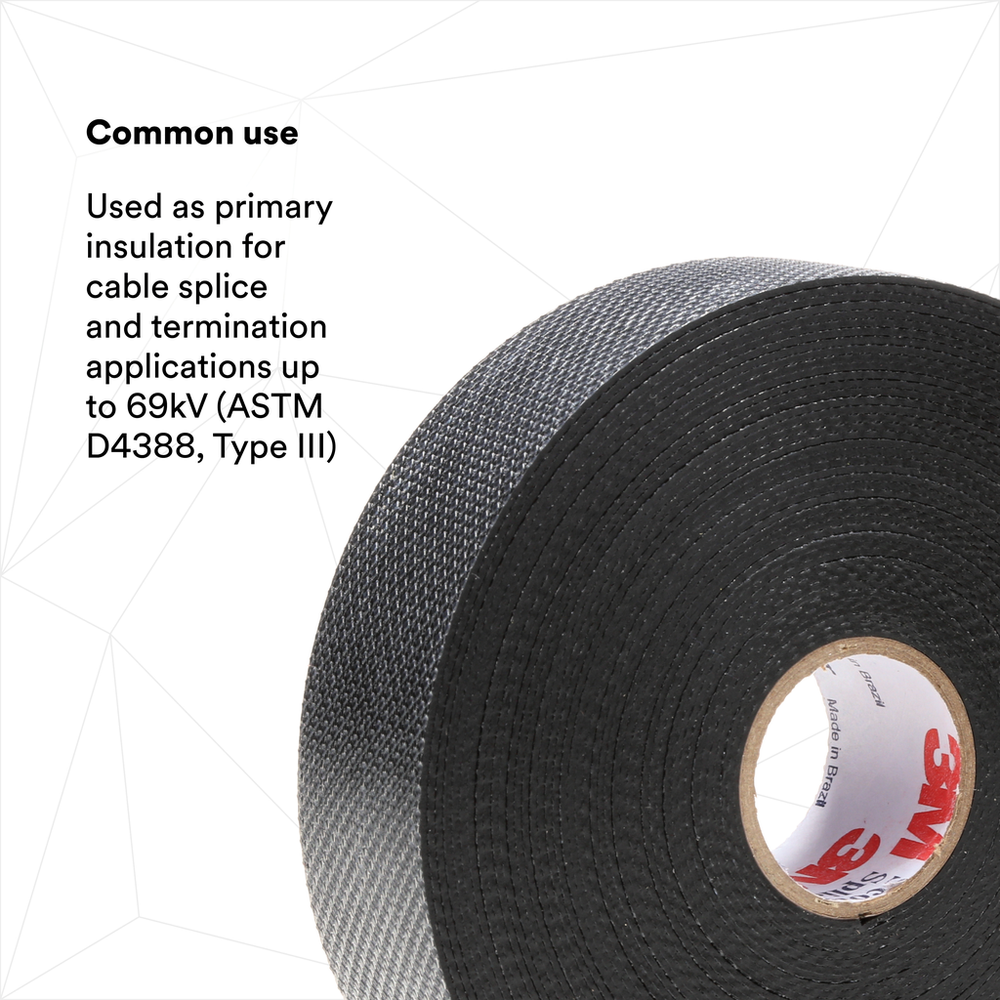

Voltage Rating69 kV
Units per Case16.0
Backing (Carrier) Thickness (Metric)0.76
Overall Length (Imperial)30.0
Maximum Operating Temperature (Fahrenheit)194.0
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric) UOMmm
Tape GradeProfessional
FeaturesSelf-sticking
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorBlack
Tensile Strength (Metric) UOMkPa
Minimum Operating Temperature (Celsius)0.0
Rolls per Case16.0
Overall Width (Metric)50.8
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMft
Overall Width (Metric) UOMmm
Tensile Strength (Imperial)8.0
Tensile Strength (Imperial) UOMlb/in
