3M Products & Supplies

Scotch® Rubber Splicing Tape 23, 3/4 in x 30 ft, Black, 1 roll/carton, 20 rolls/case - 7000007286

Sold As: 20-Pack
SKU: 7000007286
MPN: 7000007286
Stock Item: Stock items typically ship within 2-3 business days
UPC: 07891040003860
3M ID: HT002001309
5 Digit UPC: 386
$629.01 ($31.45 / Count)
Hurry up! Current stock:

Product Description

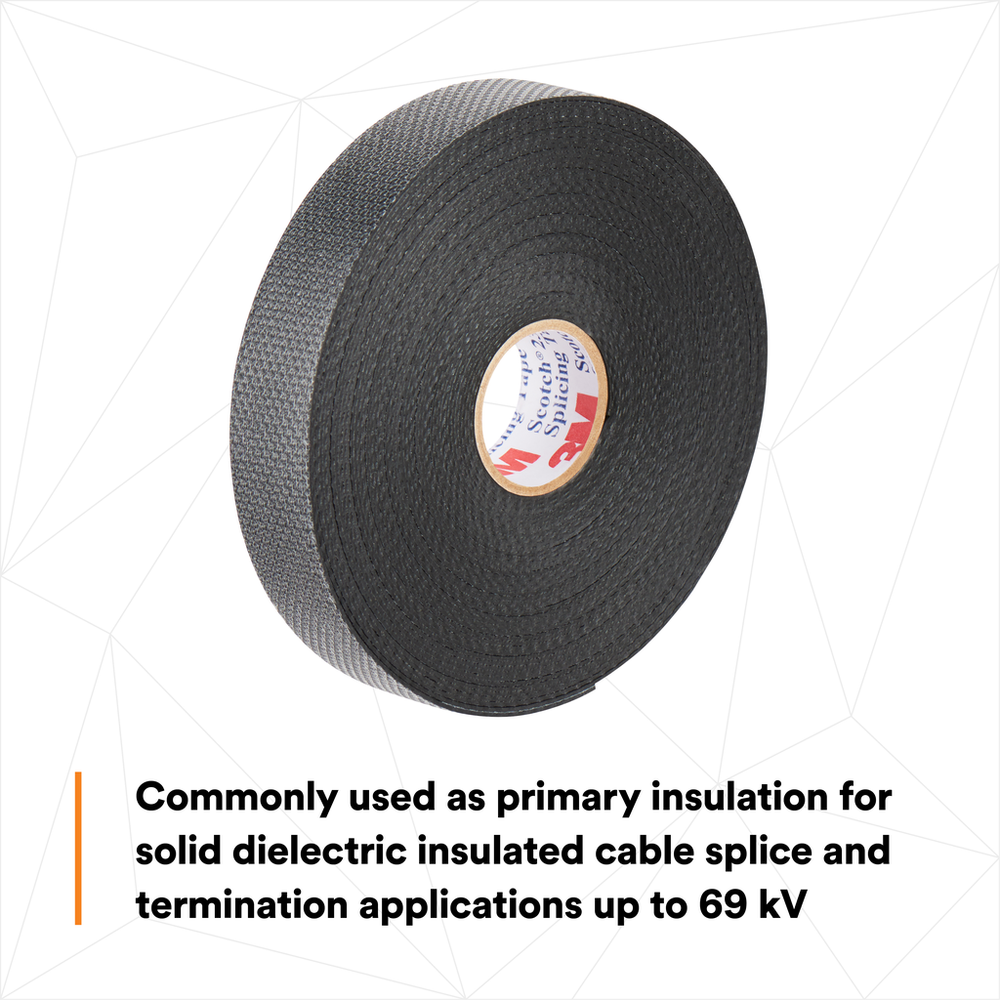

Scotch® Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 °F (90 °C).

Features

  • Self-fusing, ethylene propylene rubber backing and highly conformable, rubber-resin adhesive
  • Special polyester liner keeps tape protected and clean during application

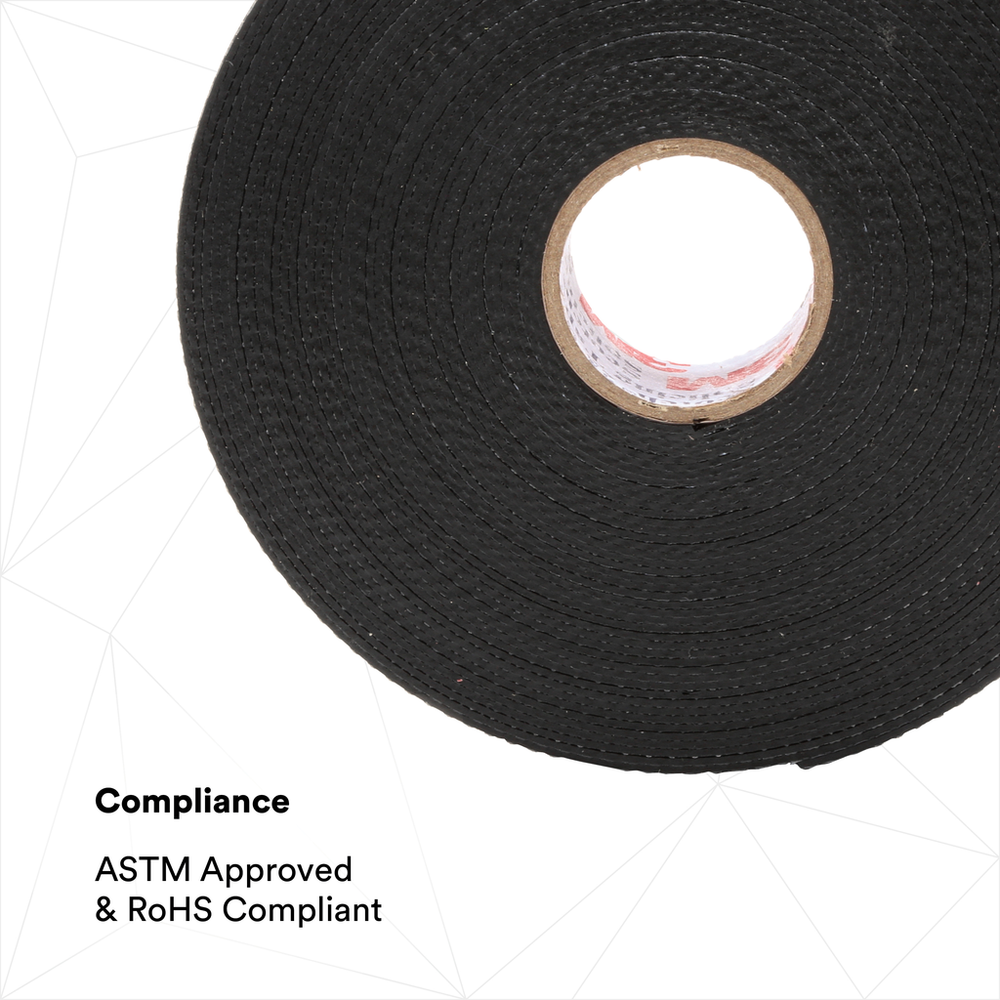

  • ASTM Approved & RoHS 2002/65/EC Compliant

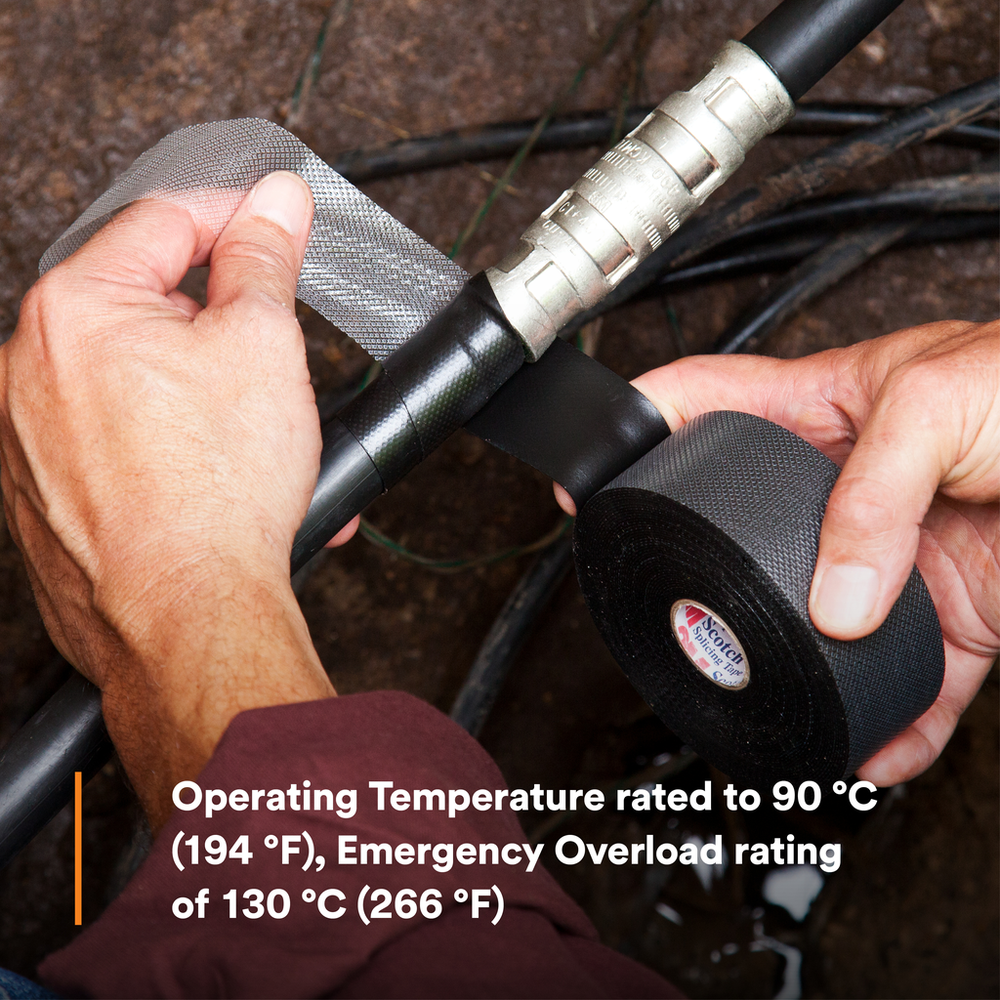

  • Temperature rated for continuous adhesion to 194°F (90°C)
Spec Sheet



Downloads

Specifications

Country of OriginBrazil
Dielectric Strength800.0
Minimum Operating Temperature (Celsius)0.0
Rolls per Carton1.0
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit)194.0
Overall Width (Imperial) UOMin
Tape GradeProfessional
Application/IndustryCommercial Construction; Industrial Construction; Maintenance and Repair Operations; Mining; Residential Construction; Solar; Wind Power
FeaturesSelf-sticking; Vulcanizing
Maximum Operating Temperature (Celsius)130.0
Maximum Operating Temperature (Celsius) UOMDegree
Specifications MetASTM D-4388 Type 1, 2 & 3, RoHS 2011/65/EU
Tensile Strength (Imperial)8.0
Tensile Strength (Metric) UOMkPa
Overall Length (Imperial) UOMft
Overall Width (Metric)19.0
Total Tape Thickness without Liner (Metric)0.76
Product MarketsElectrical Construction
Tensile Strength (Metric)55.0
Backing (Carrier) Thickness (Metric)0.76
Backing (Carrier) MaterialEthylene Propylene Rubber
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)9.15
Rolls per Case20.0
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life UOMYear
Product ColorBlack
Total Tape Thickness without Liner (Metric) UOMmm
ApplicationElectrical Maintenance; Insulation; Sealing
Overall Length (Imperial)30.0
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeRubber Resin
Elongation at Break800
Units per Case20.0
Total Tape Thickness without Liner (Imperial) UOMmil
Insulation Resistance> 10^6 megohms
Total Tape Thickness without Liner (Imperial)30.0
Overall Width (Imperial)0.75
Dielectric Strength UOMV/mil
Overall Length (Metric) UOMm
Voltage Rating69 kV
