3M Products & Supplies

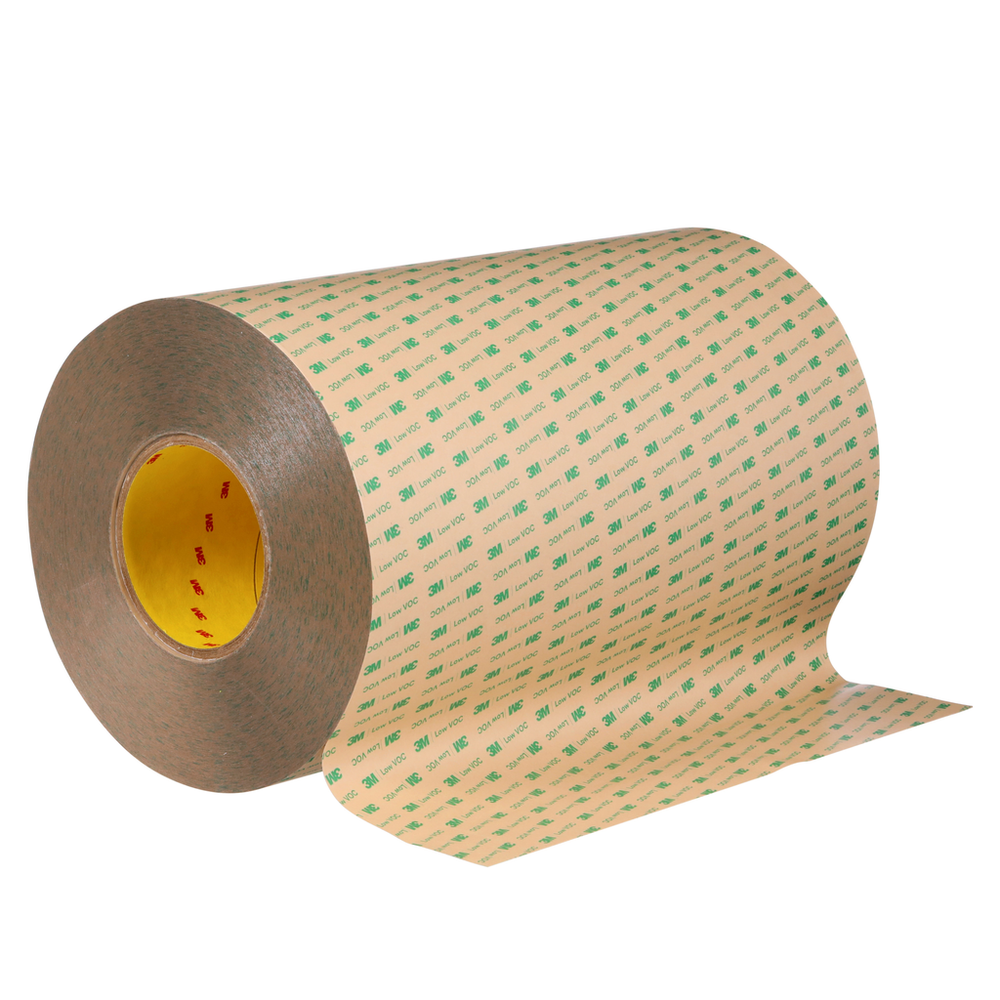

3M™ Low VOC Adhesive Transfer Tape 59812LVC, Clear, 5 mil, 54 in X 180 yd, 1 Roll/Case - 7100377473

SKU: 7100377473
MPN: 7100377473
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060762474
3M ID: 70011146100
$2,977.45
Hurry up! Current stock:

Product Description

3M™ Low VOC Adhesive Transfer Tape 59812LVC represents the future of 3M™ pressure sensitive adheasive design. From the blistering heat of summer to the harsh cold of winter, vehicle interior components are designed to withstand everything the environment can throw at them. This creates bonding challenges for many hard-to-bond substrates-such as plastics, fabrics, and foams. 3M™ Low VOC Adhesive Transfer Tape 59812LVC has been engineered to perfrom through challenging conditions while offering the design flexibility to compliment your assembly process. In addition, this tape's properties ensure clean aesthetics while bonding to dissimilar materials. Don't limit your design creativity-make it a reality throught the power of 3M™ Low VOC Adhesive Transfer Tape 59812LVC.

Features

  • Bonds after exposure to 100˚F (38˚C)/100% Humidity
  • Adheres to difficult-to-bond substrates, including low surface energy (LSE) plastics, fabrics, and foams
  • Short term temperature resistance up to 300˚F/149˚C
  • Reduces VOC emissions compared to current standard 3M pressure-sensitive adhesives
  • Enables dissimilar material bonding while delivering clean aesthetics
  • Long term temperature resistance up to 250˚F/121˚C
Spec Sheet



Downloads

Specifications

Minimum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Primary Liner Thickness (Imperial) UOMmil
ApplicationBonding
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner58# Polycoated Kraft Paper (PCK)
Minimum Operating Temperature (Fahrenheit)-40.0
IndustriesAutomotive
Overall Length (Imperial)180.0
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life730
Overall Length (Metric)164.59
Maximum Operating Temperature (Celsius) UOMDegree
Adhesive TypeLow VOC Acrylic
Overall Width (Metric)1371.6
Total Tape Thickness without Liner (Imperial)5.0
Primary Liner ColorTan
Maximum Operating Temperature (Fahrenheit)250.0
Primary Liner Thickness (Metric)0.107
Maximum Operating Temperature (Celsius)121.0
Overall Width (Imperial)54.0
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Imperial) UOMin
Indoor/OutdoorIndoor/Outdoor
Overall Width (Metric) UOMmm
Product ColorTransparent
Country of OriginUnited States
Primary Liner Thickness (Imperial)4.2
Total Tape Thickness without Liner (Metric)0.13
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
