3M Products & Supplies

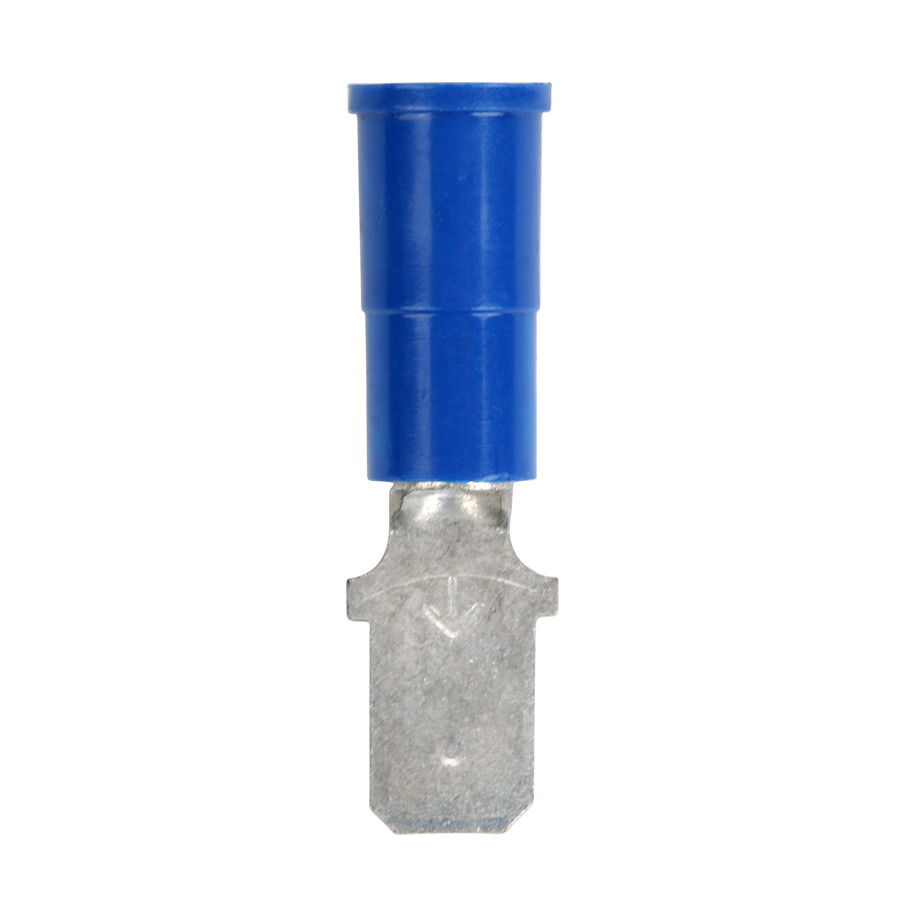

3M™ Male Disconnect, Vinyl Insulated Butted Seam 16-14 AWG, 94825, 72M-187-20-P - 7010397410

Sold As: 10-Pack
SKU: 7010397410
MPN: 7010397410
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007948254
3M ID: 80611253255
MPN: 94825
$146.84 ($14.68 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
  • This male disconnect terminal offers excellent holding force

Downloads

Specifications

Maximum Conductor Size (Metric)2.5 mm²
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.187
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Country of OriginUnited States
Connection Width (Imperial) UOMin
Connection Width (Metric)4.75
Maximum Conductor Size (Imperial)14 AWG
Disconnect TypeMale
Minimum Conductor Size (Metric)1.5 mm²
Minimum Conductor Size (Imperial)16 AWG
Terminal TypeDisconnect
