3M Products & Supplies

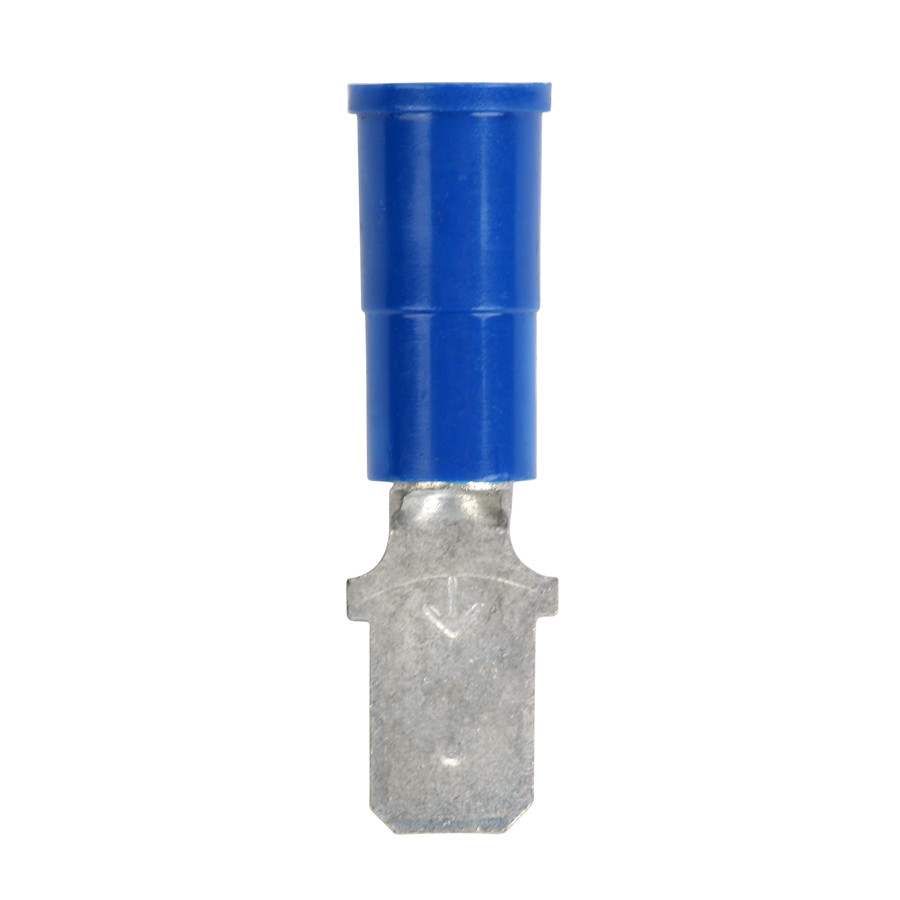

3M™ Male Disconnect, Vinyl Insulated Butted Seam 16-14 AWG, 94829, 72M-250-32-P - 7010349262

Sold As: 10-Pack
SKU: 7010349262
MPN: 7010349262
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007948292
3M ID: 80611253297
MPN: 94829
$146.84 ($14.68 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • This male disconnect terminal offers excellent holding force
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
  • Allows for quick and easy disconnect of wires

Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)1.5 mm²
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Terminal TypeDisconnect
Connection Width (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Imperial)0.25
Maximum Conductor Size (Metric)2.5 mm²
Disconnect TypeMale
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Metric)6.35
