3M Products & Supplies

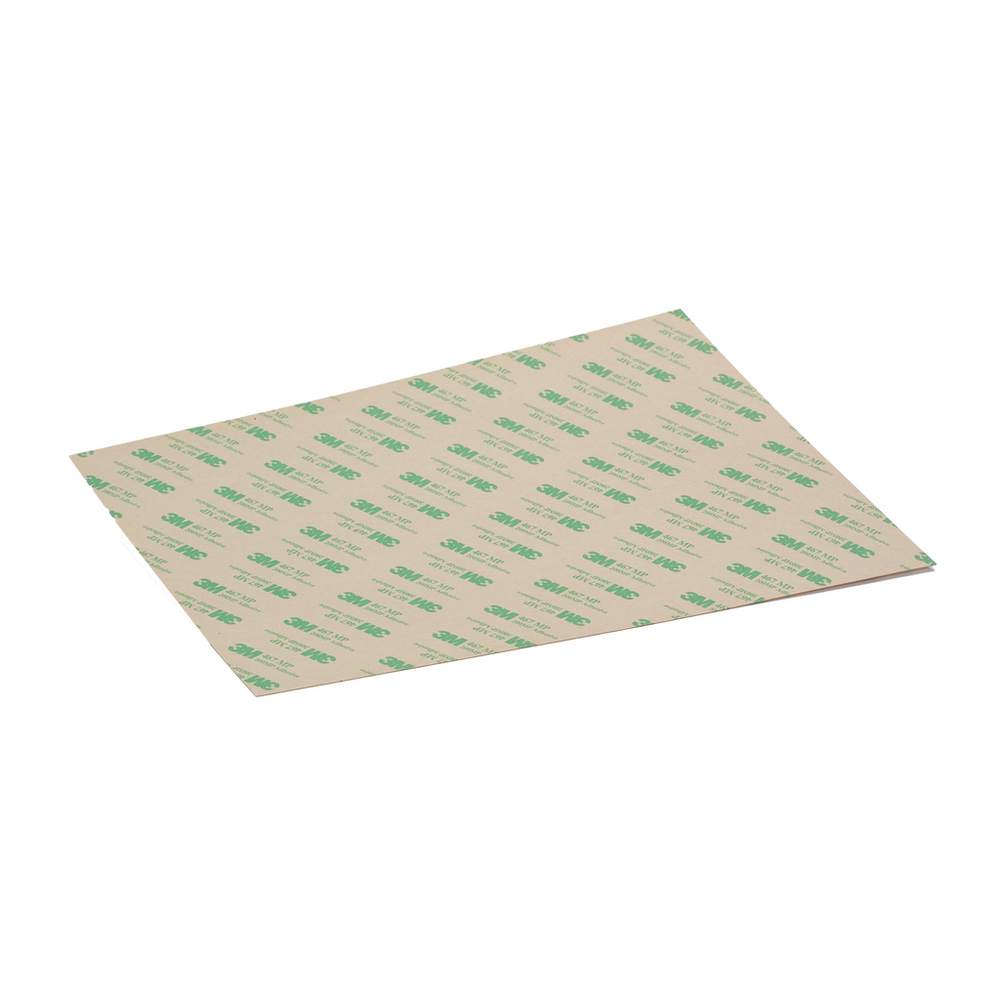

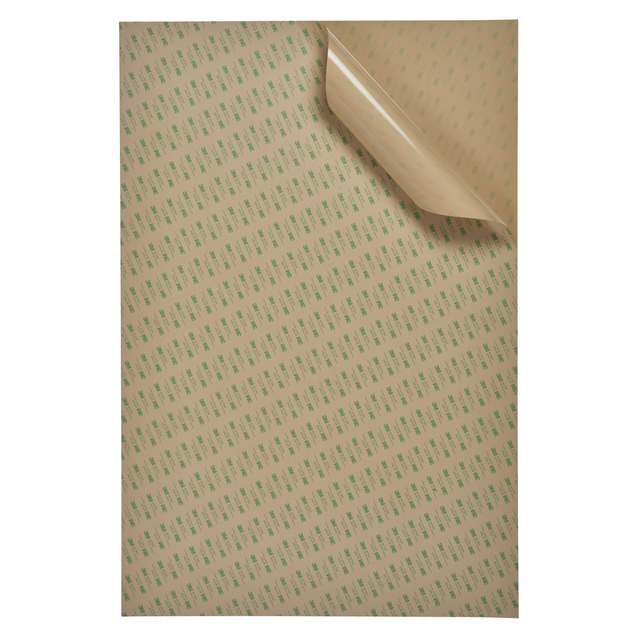

3M™ Membrane Switch Spacer 7966WDL, 24 in x 36 in, 9 mil, (50 sheets) Case - 7000049683

Sold As: 2-Pack
SKU: 7000049683
MPN: 7000049683
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115634741
3M ID: 70006734316
5 Digit UPC: 63474
$2,097.63 ($1048.82 / Count)
Hurry up! Current stock:

Product Description

3M™ Membrane Switch Spacer 7966WDL features a 2 mil white PET film carrier with a metallized vapor coat for added opacity, ideal for graphics. 3M™ High Performance Acrylic Adhesive 200MP delivers excellent shear strength during repeated switch actuation and forms clean edges for precise slitting and die-cutting. A PCK paper liner resists humidity and adds stability for improved sheet processing.

Features

  • Acrylic adhesive delivers excellent shear strength, resists slippage and edge lifting
  • Metallized vapor coat on white polyester carrier creates outstanding opacity for graphics
  • 2 mil white polyester carrier provides strength and stability
  • Adhesive resists oozing at edges and die-cuts for faster part processing
  • 9 mil double-coated spacer is ideal for withstanding repeated stress of switch actuation
  • Designed with 2 mil adhesive on face side and 5 mil adhesive on the back side
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Backing (Carrier) Thickness (Metric) UOMmm
Secondary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial) UOMmil
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, MRO, Medical, Metalworking, Military and Government, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation, Woodworking
Primary Liner Thickness (Metric)0.11
Secondary Liner Thickness (Imperial)4.2
Primary Liner Thickness (Metric) UOMmm
Overall Width (Imperial)24.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Face Side Adhesive Thickness (Imperial)2.0
Product ColorWhite
Maximum Operating Temperature (Fahrenheit)400.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Shelf Life UOMMonth
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Imperial) UOMmil
Face Side Adhesive Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric)610.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Metric)0.13
Secondary Liner58# Polycoated Kraft Paper
Total Tape Thickness without Liner (Imperial)9.0
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric)0.05
Primary Liner ColorTan
Overall Width (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.05
Units per Case50.0
Back Side Adhesive Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric)0.11
Overall Length (Metric)914.0
Backing (Carrier) Thickness (Imperial)2.0
Adhesive TypeHigh Performance Acrylic Adhesive 200MP
Backing (Carrier) MaterialPolyester Film
Primary Liner Thickness (Imperial)4.2
Total Tape Thickness without Liner (Metric)0.23
Number of Adhesive SidesDouble-sided
Secondary Liner Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Primary Liner58# Polycoated Kraft Paper
Minimum Operating Temperature (Fahrenheit)-40.0
Back Side Adhesive Thickness (Imperial)5.0
Secondary Liner ColorTan
