3M Products & Supplies

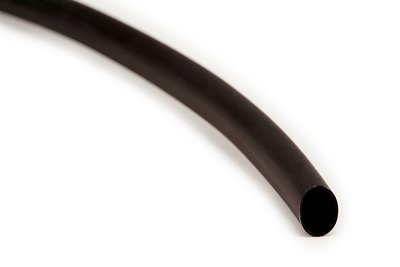

3M Modified Polychloroprene Tubing NST-5/8-Black, 100 ft Length per spool, 3 spools per carton - NST-5/8-100'-BLACK-SPOOL

Sold As: 900-Pack
SKU: 7100079469
MPN: 7100079469
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007586012
3M ID: 80610675599
5 Digit UPC: 58601
$4,221.92 ($4.69 / Count)
Hurry up! Current stock:

Product Description

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Manufacturing Origin: USA
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

  • Withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C)
  • 3M™ NST Tubing provides high abrasion and cut-through resistance, making it ideal for highly flexible covering applications. This tubing has a 2:1 shrink ratio and provides insulation for 600V-rated applications. The flexible modified chlorinated polyolefin construction offers superior resistance to heat and hydrocarbon oils.
  • Expanded I.D. of 5/8 in
  • UL Listed, SAE-AMS-DTL-23053/1 Class 1, 2, AMS-R46846 and AMS-3623 Certified
  • Suitable for applications requiring a tough, highly flexible covering
  • Made of black flexible modified chlorinated polyolefin
  • 100-ft spool
  • Highly resistant to cut-through and abrasion
  • Flame-retardant tubing is rated for 600V applications
  • 3 spools/carton
  • 3M™ NST Tubing is color-coded for quick and easy identification of the wire. The wide operating temperature range and superior mechanical properties of the tubing make it an ideal choice for jacketing cable harnesses. It's also well-suited for military aircraft or vehicle applications and covering hydraulic couplings, as well as the fabrication and repair of flexible harnesses and wire bundles. Using hot-stamp or print-wheel methods, this tubing is easily markable. It withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C). UL Listed, SAE-AMS-DTL-23053/1 Class 1,2, AMS-R46846 and AMS-3623 Certified.
  • Ideal for use in jacketing cable harnesses with its superior mechanical properties and wide operating temperature range
Spec Sheet



Specifications

Minimum Expanded Tubing I. D.5 Inch
Tubing TypeSpecial Purpose, Modified Neoprene
Operating Temperature Range (Fahrenheit)-94 °F to 250 °F
RoHS EU CommentsContact 3M for information
Operating Temperature Range (Celsius)-70 °C to +121 °C
Mil SpecAMS-DTL-23053/1, Class 1 and 2
Shrink Ratio2:1
MaterialModified Neoprene
Non-CorrosiveYes
RoHS 2011/65/EU CompliantNo
Tensile Strength2100 Pound-Force Per Square Inch
Brand3M
Flammability RatingSelf-Extinguishing
Agency ApprovalsAMS-R46846 and AMS 3623
Dielectric Strength800 Volt
Length (Metric)30.5 m
Elongation500 %
ColorBlack
Recovered Inner Diameter5 Inch
Length100 Linear Foot
