3M Products & Supplies

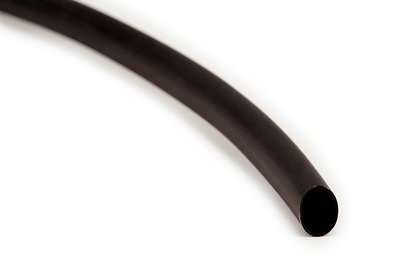

3M Modified Polychloroprene Tubing NST-7/8-Black: 100 ft spool length, 3 spools per carton - NST-7/8-100'-BLACK-SPOOL

Sold As: 900-Pack
SKU: 7010396625
MPN: NST-7/8-100'-BLACK-SPOOL
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007586029
3M ID: 80610675607
5 Digit UPC: 58602
$6,112.33 ($6.79 / Count)
Hurry up! Current stock:

Product Description

Legal Disclaimer

  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.

Overview

  • 3M™ NST Tubing is color-coded for quick and easy identification of the wire. The wide operating temperature range and superior mechanical properties of the tubing make it an ideal choice for jacketing cable harnesses. It's also well-suited for military aircraft or vehicle applications and covering hydraulic couplings, as well as the fabrication and repair of flexible harnesses and wire bundles. Using hot-stamp or print-wheel methods, this tubing is easily markable. It withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C). UL Listed, SAE-AMS-DTL-23053/1 Class 1,2, AMS-R46846 and AMS-3623 Certified.
  • Highly resistant to cut-through and abrasion
  • UL Listed, SAE-AMS-DTL-23053/1 Class 1, 2, AMS-R46846 and AMS-3623 Certified
  • Ideal for use in jacketing cable harnesses with its superior mechanical properties and wide operating temperature range
  • Withstands temperatures of -94 to 250 degrees F (-70 to 121 degrees C)
  • 100-ft spool
  • Suitable for applications requiring a tough, highly flexible covering
  • Expanded I.D. of 7/8 in
  • Made of black flexible modified chlorinated polyolefin
  • 3M™ NST Tubing provides high abrasion and cut-through resistance, making it ideal for highly flexible covering applications. This tubing has a 2:1 shrink ratio and provides insulation for 600V-rated applications. The flexible modified chlorinated polyolefin construction offers superior resistance to heat and hydrocarbon oils.
  • 3 spools/carton
  • Flame-retardant tubing is rated for 600V applications
Spec Sheet



Specifications

Non-CorrosiveYes
Operating Temperature Range (Celsius)-70 °C to +121 °C
MaterialModified Neoprene
Shrink Ratio2:1
Minimum Expanded Tubing I. D.7 Inch
RoHS EU CommentsContact 3M for information
Tubing TypeSpecial Purpose, Modified Neoprene
Mil SpecAMS-DTL-23053/1, Class 1 and 2
RoHS 2011/65/EU CompliantNo
Flammability RatingSelf-Extinguishing
Tensile Strength2100 Pound-Force Per Square Inch
Recovered Inner Diameter7 Inch
ColorBlack
Brand3M
Agency ApprovalsAMS-R46846 and AMS 3623
Elongation500 %
Dielectric Strength800 Volt
Length100 Linear Foot
