3M Products & Supplies

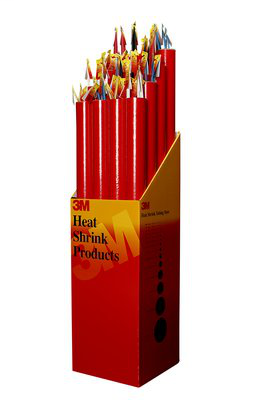

3M MFP Heat Shrink Thin-Wall Tubing MFP-3/8-48-Clear, 4 ft Length sticks, 12 sticks per box - 80611600067

Sold As: 12-Pack
SKU: 7000133592
MPN: 80611600067
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597453
3M ID: 80611600067
5 Digit UPC: 59745
$295.10 ($24.59 / Count)
Hurry up! Current stock:

Product Description

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
  • Manufacturing Origin: USA

Overview

  • Withstands temperatures of -67 to 347 degrees F (-55 to 175 degrees C)
  • Expanded I.D. of 3/8 in
  • 4-ft stick
  • 3M™ Heat Shrink Tubing MFP is transparent for easy, see-through inspection and identification. This flame-retardant tubing is used for shrink-fit protection and strain relief of wires, solder joints, terminals, as well as connections. The high-expansion-ratio tubing is mechanically tough, easily markable and resists cold flow. It is perfect for use in military aircraft or vehicles and jacketing components like resistors or capacitors. It withstands temperatures of -67 to 347 degrees F (-55 to 175 degrees C). UL Listed, SAE-AMS-DTL-23053/8, AMS-3632, CSA, OFT Certified and RoHS 2011/65/EU Compliant.
  • Flame-retardant tubing is rated for 600V applications
  • Suitable for marking electronics and appliances
  • Transparent insulation for easy, see-through inspection and identification
  • Made of clear semi-rigid, modified polyvinylidene fluoride
  • Offers shrink-fit protection and strain relief of wires, solder joints, terminals and connections
  • 3M™ MFP Heat Shrink Tubing is a thin-wall tubing that provides a high degree of mechanical strength and high-temperature resistance. This tubing has a 2:1 shrink ratio and provides flame-retardant insulation for 600V-rated applications. It has semi-rigid, modified polyvinylidene fluoride construction that offers superior abrasion resistance and cut-through properties.
  • 12 sticks/box
  • UL Listed, SAE-AMS-DTL-23053/8, AMS-3632, CSA, OFT Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Specifications

ColorClear
RoHS 2011/65/EU CompliantYes
Recovered Inner Diameter (metric)4.75 mm
Non-CorrosiveYes
UL Bug Temperature (Fahrenheit)301 Degrees Fahrenheit
Product Form48 in (1.22 m) sticks, Stick
Length4 Linear Foot
Size0.375 Inch
Elongation350 %
Expanded Inner Diameter (metric)9.53 mm
Expanded Inner Diameter0.375 Inch
Flammability RatingUL 224 VW-1 / CSA Oft
Agency ApprovalsUL Recognized, CSA Certified and AMS 3632, UL, CSA
Size (metric)9.52 mm
Tubing TypeSpecial Purpose, Polyvinylidene Fluoride
MaterialPolyvinylidene Fluoride
Recovered Inner Diameter0.187 Inch, 3 Inch
Trademark3M™
Brand3M
Shrink Ratio2:1
Operating Temperature Range (Celsius)-55 °C to +135 °C
Length (Metric)1219 mm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mil SpecAMS-DTL-23053/8 and AMS-DTL-23053/18, Class 1
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Dielectric Strength900 Volt
Minimum Expanded Tubing I. D.0.375 Inch, 3 Inch
UL Bug Voltage600 Volt
