3M™ Motor Lead Pigtail or V-Stub Splice 5382, 5-8 kV, Feeder: 2-1/0 AWG, Motor Lead: 4-1/0 AWG , 1/Case - 7000133144

SKU: 7000133144
MPN: 7000133144
For an accurate lead time please contact us
UPC: 00051128559529
3M ID: 80611425408
5 Digit UPC: 55952
$819.07 each
Hurry up! Current stock:

Product Description

3M™ Motor Lead Pigtail Splicing Kits 5380 Series are designed for splicing motor lead cables to incoming feeder cables. These kits are removable and reusable.

Features

  • Withstands an operating temperature of 90° C and an emergency overload of 130° C (194° F to 266° F)
  • Rated for 5/8 kV applications
  • For use with shielded and non-shielded cables

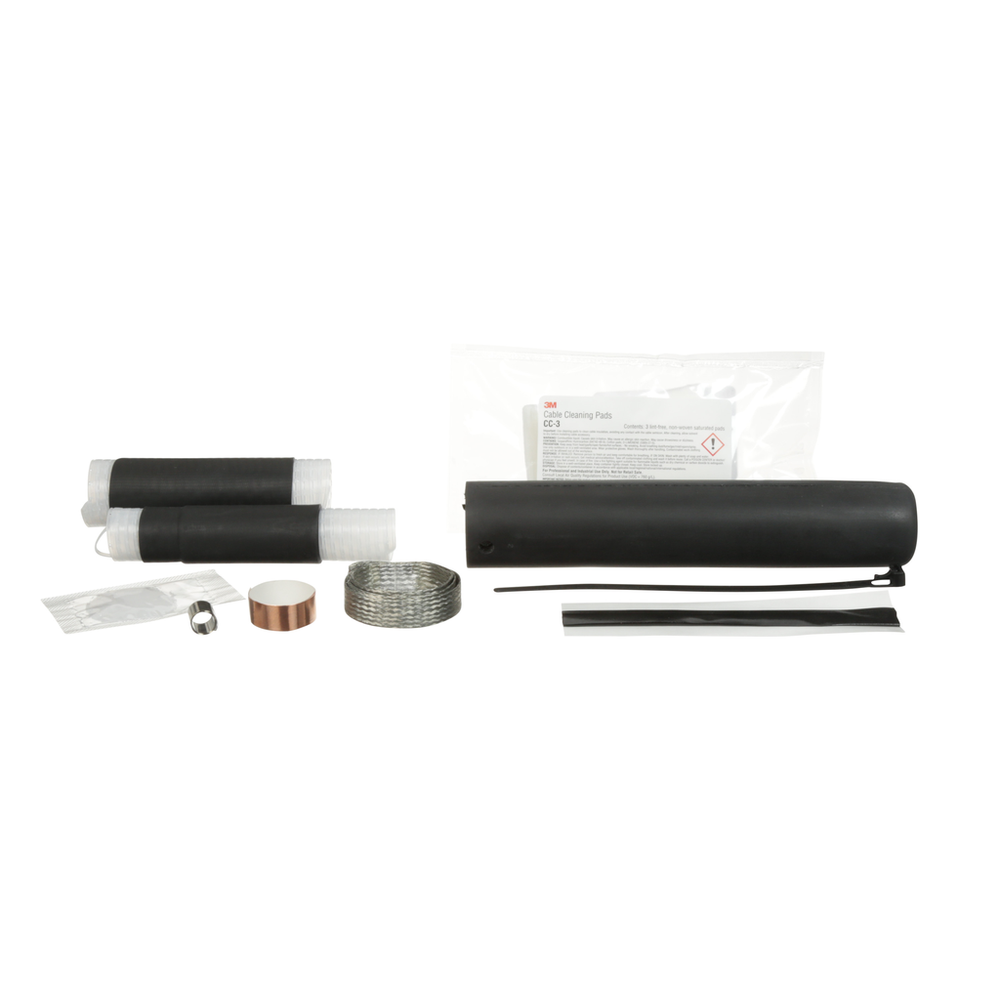

  • Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet
  • Designed for use with 3M™ Scotchlok™ Copper One Hole Lug Series 30000 or other UL Listed copper lugs
  • The lug or splice cover is made of EPDM rubber to help resist punctures and abrasion damage
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
ApplicationCable Connection
Maximum Lug Length (Metric)69.9 mm
Maximum Feeder Lead Size1/0 AWG
Maximum Motor Lead Size1/0 AWG
Maximum Bolt Length (Metric)19.1 mm
Number of Conductors1.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Product TypeSplice
Maximum Operating Voltage8 kV
Maximum Conductor Size (Metric)240 mm²
Voltage ApplicationMedium Voltage
Splice TypePigtail or V-stub
Units per Case3.0
Maximum Lug Length2-3/4 in
Inner Diameter of Boot to Size of Cables (Metric)29.5 mm
Range Feeder Cable (AWG & kcmil)2-0
Insulation Outside Diameter0.43-0.65 Inch
Insulation Outside Diameter Range (Metric)10.9-16.5 mm
Inner Diameter of Boot to Size of Cables1.16 in
Connector IncludedNo
Minimum Conductor Size (Metric)120 mm²
Cable TypeConcentric Neutral (CN)
Insulation Outside Diameter Range0.43-0.65 in
Maximum Bolt Length3/4 in
Minimum Conductor Size (Imperial)250 kcmil
