3M Products & Supplies

3M™ Motor Lead Inline Pigtail Splice 5312, 1 kV, 2-1/0 AWG (feeder), 4-1/0 AWG (motor lead), 1/case - 7000132309

SKU: 7000132309
MPN: 7000132309
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007122685
3M ID: 80610123319
5 Digit UPC: 12268
$138.16 each
Hurry up! Current stock:

Product Description

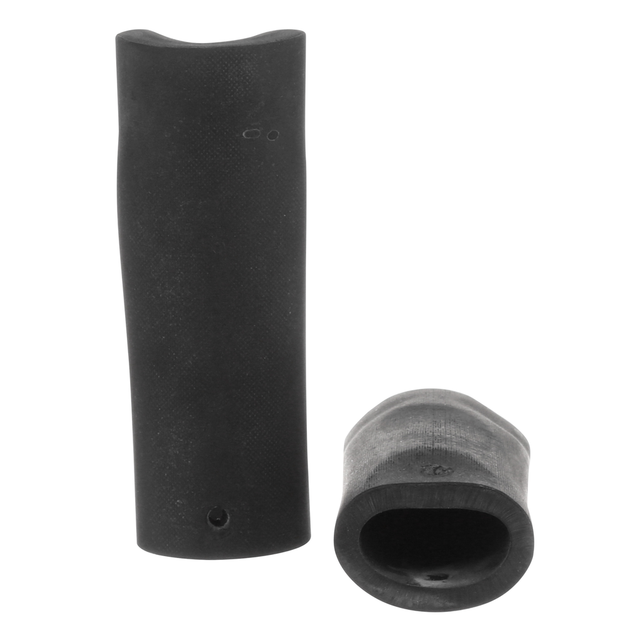

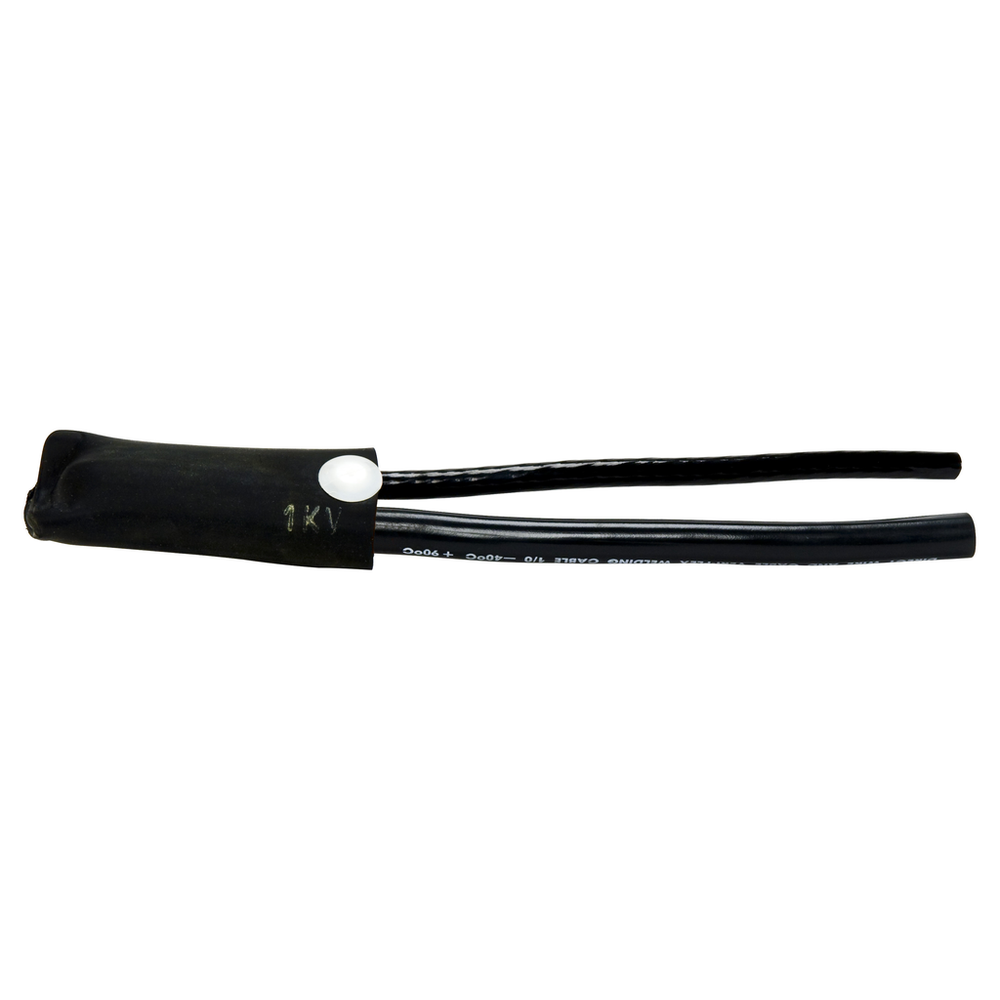

3M™ Motor Lead Inline Splicing Kits 5311-5314 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of inline connections at 1000 volts and less. The splice’s main component, the slip on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal.

Features

  • Designed for use with copper compression, 1 or 2 hole lugs
  • Has a durable EPDM rubber construction
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
ApplicationUsed on Cables with a Rated Operating Temperature of 90 deg C and an Emergency Overload Rating of 130 deg C. To Splice (Insulate and Seal) Motor Lead Connections for 1000V and Less Cables Sized 16 AWG to 500 kcmil
Splice Cover Inner Diameter (Metric)7.6 mm
Range Feeder Cable (AWG & kcmil)2-1/0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation Outside Diameter0.34-0.54 Inch
Application/IndustryCommercial Construction
Splice Cover Inner Diameter0.30 in
Maximum Motor Lead Size1/0 AWG
Connection TypeInline
Insulation Outside Diameter Range0.34-0.54 in
Splice Cover Length8-9 in
Maximum Bolt Length3/4 in
Splice Cover Length (Metric)203.2-228.6 mm
Units per Case1.0
Splice TypeInline
Maximum Feeder Lead Size1/0 AWG

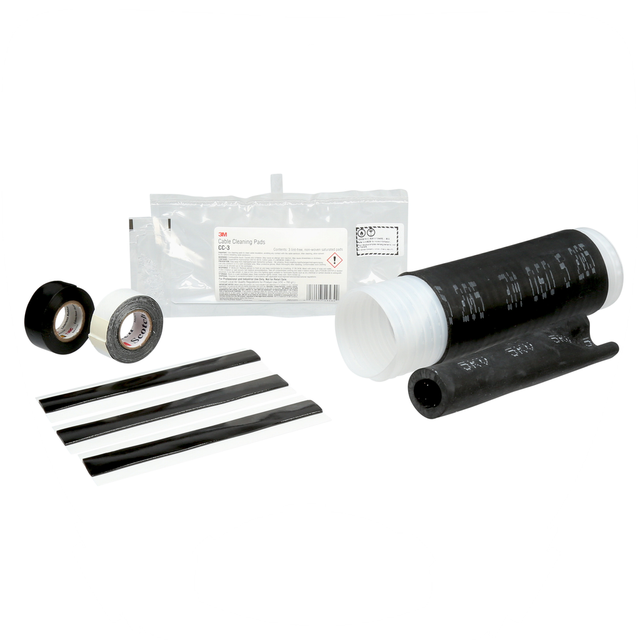

Kit Includes(3) Adapter Sleeves
Maximum Bolt Length (Metric)19.1 mm
Insulation Outside Diameter Range (Metric)8.6-13.7 mm
Maximum Operating Voltage1 kV
Product ColorBlack
