3M™ Motor Lead Pigtail Splice 5302, 1 kV, 1-Hole Lug Connection, Feeder: 2-1/0 AWG , Motor Lead: 4-1/0 AWG , 1/Case - 7000005806

SKU: 7000005806
MPN: 7000005806
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007122647
3M ID: 80008006423
5 Digit UPC: 12264
$105.17 each
Hurry up! Current stock:

Product Description

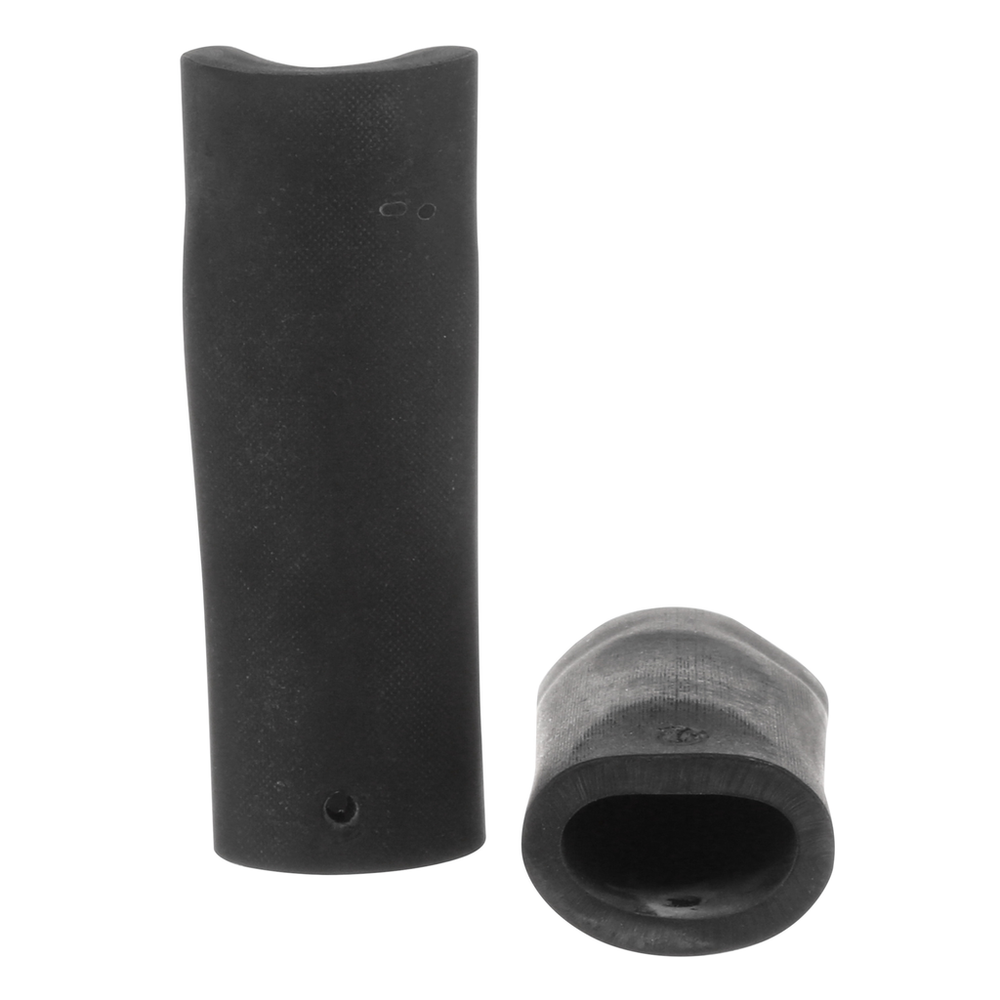

3M™ Motor Lead Pigtail Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 volts and less. The splice’s main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal. These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit makes three splices and contains the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include: • (3) Pigtail lug covers • (3) Mastic sealing strips • (3) Locking pins (kits 5302–5304 only) • (3) Tubes of silicone grease • (1) Instruction sheet

Features

  • Designed to use with copper compression, 1-hole lugs
  • CSA Certified and RoHS 2011/65/EU Compliant
  • Splices motor lead cables to incoming feeder cables
  • For pigtail (stub) connections at 1000V or less
  • Slip-on lug cover is made of durable EPDM rubber
  • Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Splice TypePigtail Only
ApplicationCross Linked Polyethylene Cable; Ethylene Propylene Rubber Cable; For Insulating and Sealing Motor Lead Connections for Copper Conductors; Polyethylene Cable
Maximum Feeder Lead Size1/0 AWG
Maximum Motor Lead Size1/0 AWG
Application/IndustryCommercial Construction
Maximum Operating Voltage1 kV
Maximum Bolt Length (Metric)19.1 mm
Product ColorBlack
Insulation Outside Diameter Range0.34-0.54 in
Insulation Outside Diameter0.34-0.54 Inch
Maximum Bolt Length3/4 in
Packaging1/Case
Units per Case1.0
Lug Cover Length4.2 in
Cable ShieldingNon-shielded
Kit Includes(3) Pigtail Lug Covers
Lug Cover Inner Diameter0.95 in
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation Outside Diameter Range (Metric)8.6 - 13.7 mm
Lug Cover Inner Diameter (Metric)24.1 mm
Lug Cover Length (Metric)106.7 mm
Range Feeder Cable (AWG & kcmil)2-1/0
