3M™ Motor Lead Pigtail Splice 5300, 1 kV, 1-Hole Lug Connection, Feeder: 14-10 AWG , Motor Lead: 16-1/0-AWG , 1/Case - 7000005804

SKU: 7000005804
MPN: 7000005804
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007083177
3M ID: 80008006407
5 Digit UPC: 8317
$54.69 each
Hurry up! Current stock:

Product Description

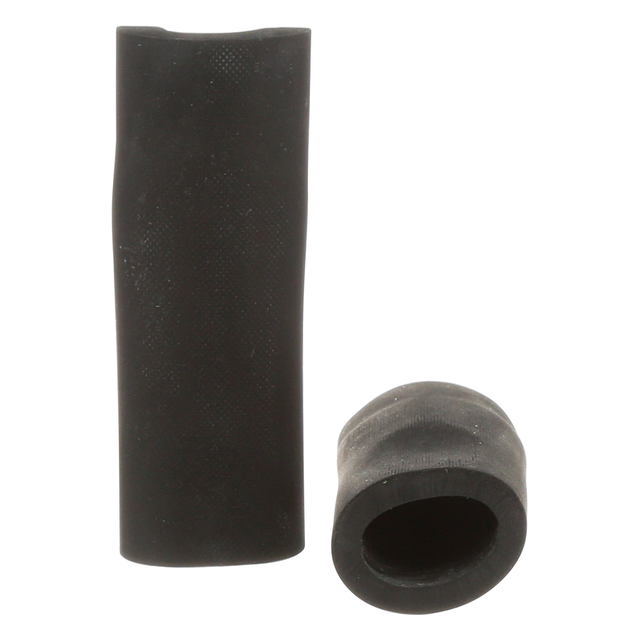

3M™ Motor Lead Pigtail Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 volts and less. The splice’s main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal. These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit makes three splices and contains the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include: • (3) Pigtail lug covers • (3) Mastic sealing strips • (3) Locking pins (kits 5302–5304 only) • (3) Tubes of silicone grease • (1) Instruction sheet

Features

  • Designed to use with copper compression, 1-hole lugs
  • Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet
  • Slip-on lug cover is made of durable EPDM rubber
  • Splices motor lead cables to incoming feeder cables
  • For pigtail (stub) connections at 1000V or less
  • CSA Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Range Feeder Cable (AWG & kcmil)14-10
Maximum Feeder Lead Size10 AWG
Product ColorBlack
Maximum Motor Lead Size12 AWG
Lug Cover Length (Metric)53.3 mm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation Outside Diameter Range0.12-0.21 in
ApplicationCross Linked Polyethylene Cable; Ethylene Propylene Rubber Cable; For Insulating and Sealing Motor Lead Connections for Copper Conductors; Polyethylene Cable
Insulation Outside Diameter Range (Metric)3.0 - 5.3 mm
Maximum Bolt Length (Metric)9.5 mm
Application/IndustryCommercial Construction
Maximum Bolt Length3/8 in
Lug Cover Length2.1 in
Insulation Outside Diameter0.12-0.21 Inch
Cable ShieldingNon-shielded
Lug Cover Inner Diameter0.45 in
Splice TypePigtail Only
Units per Case1.0
Lug Cover Inner Diameter (Metric)11.4 mm
Kit Includes(3) Pigtail Lug Covers
Maximum Operating Voltage1 kV
