3M Products & Supplies

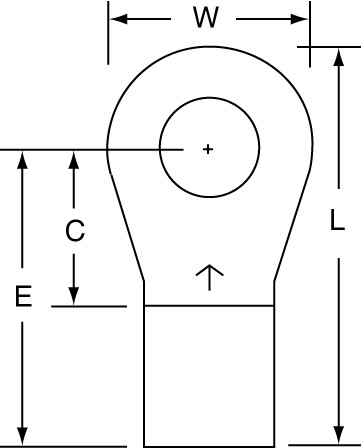

3M™ Non-Insulated Brazed Seam Ring Tongue Terminal, 11-56S-W, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163497

Sold As: 1000-Pack
SKU: 7100163497
MPN: 7100163497
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007279419
3M ID: 80601376124
MPN: 11-56S-W
$178.36 ($0.18 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Barrel StyleBrazed
Maximum Operating Temperature (Celsius)175.0
UL File NumberE23438
Connection TypeCrimp
Terminal TypeRing
Maximum Operating Temperature (Celsius) UOMDegree
Country of OriginUnited States
Barrel Length (Imperial)0.25 Inch
Terminal StyleStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialNon-insulated
Ring TypeStandard
