3M Products & Supplies

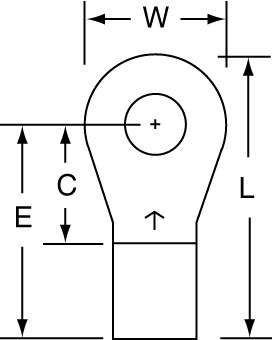

3M™ Non-Insulated Brazed Seam Ring Tongue Terminal 14-10S-W, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163749

Sold As: 1000-Pack
SKU: 7100163749
MPN: 7100163749
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007290742
3M ID: 80601387923
MPN: 14-10S-W
$269.72 ($0.27 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Minimum Conductor Size (Metric)8.37 mm²
Connection TypeCrimp
Minimum Stud Diameter (Metric)5.0
Maximum Conductor Size (Imperial)8 AWG
UL File NumberE23438
Ring TypeStandard
Minimum Conductor Size (Imperial)8 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleStandard
Maximum Conductor Size (Metric)8.37
Country of OriginUnited States
Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Imperial) UOMin
Barrel StyleBrazed
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius)175.0
Insulation MaterialNon-insulated
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeRing
