3M Products & Supplies

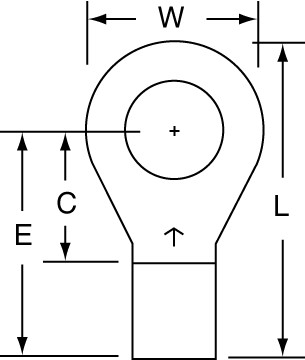

3M™ Non-Insulated Brazed Seam Ring Tongue Terminal 14-56-W, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163751

Sold As: 1000-Pack
SKU: 7100163751
MPN: 7100163751
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007290780
3M ID: 80601387964
MPN: 14-56-W
$367.90 ($0.37 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)8.37 mm²
UL File NumberE23438
Maximum Conductor Size (Imperial)8 AWG
Connection TypeCrimp
Minimum Stud Diameter (Metric)7.95
Terminal StyleStandard
Maximum Conductor Size (Metric)8.37
Country of OriginUnited States
Minimum Stud Diameter (Imperial) UOMin
Barrel StyleBrazed
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Metric) UOMmm
Ring TypeStandard
Barrel Length (Imperial)0.25 Inch
Insulation MaterialNon-insulated
Minimum Conductor Size (Imperial)8 AWG
Maximum Operating Temperature (Celsius)175.0
Terminal TypeRing
