3M Products & Supplies

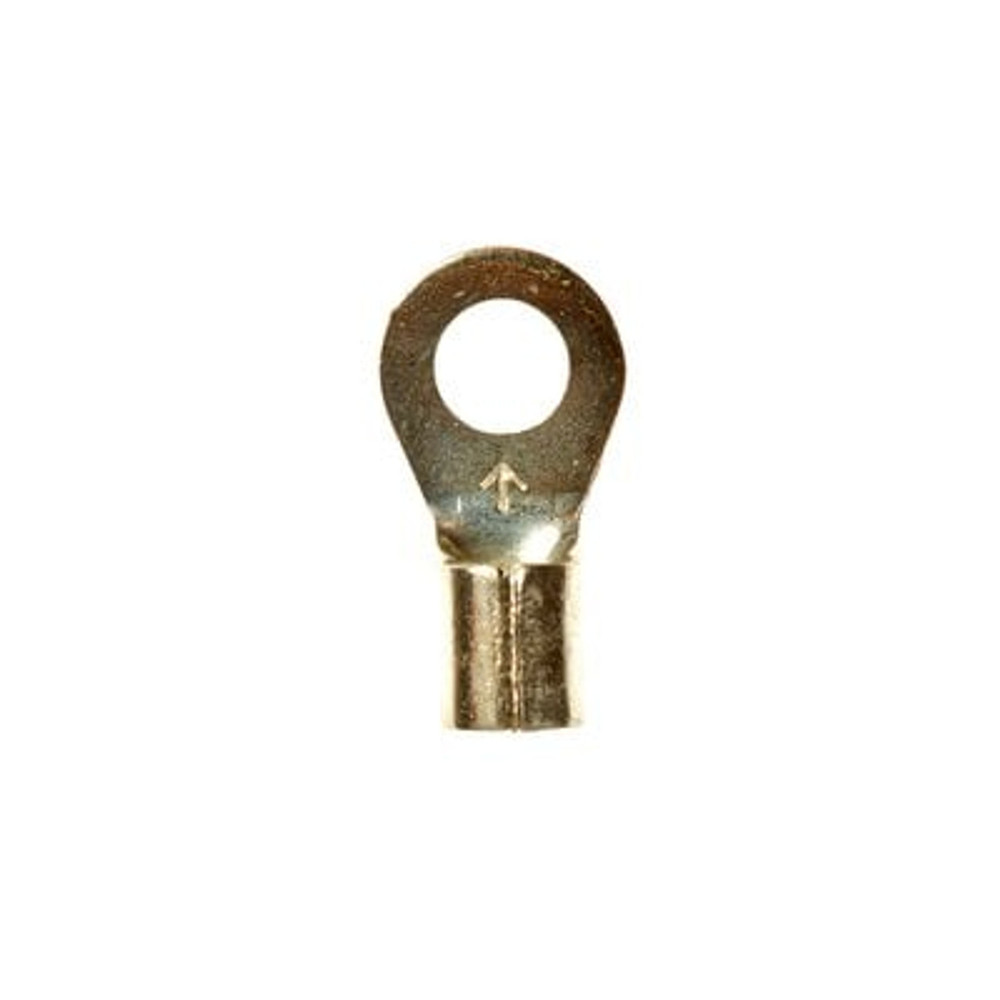

3M™ Non-Insulated Brazed Seam Ring Tongue Terminal 16-10-W, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163763

Sold As: 500-Pack
SKU: 7100163763
MPN: 7100163763
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007291305
3M ID: 80601388483
MPN: 16-10-W
$397.07 ($0.79 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Connection TypeCrimp
Terminal TypeRing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UOMDegree
Country of OriginUnited States
Insulation MaterialNon-insulated
UL File NumberE23438
Barrel Length (Imperial)0.25 Inch
Ring TypeStandard
Barrel StyleBrazed
Maximum Operating Temperature (Celsius)175.0
Terminal StyleStandard
