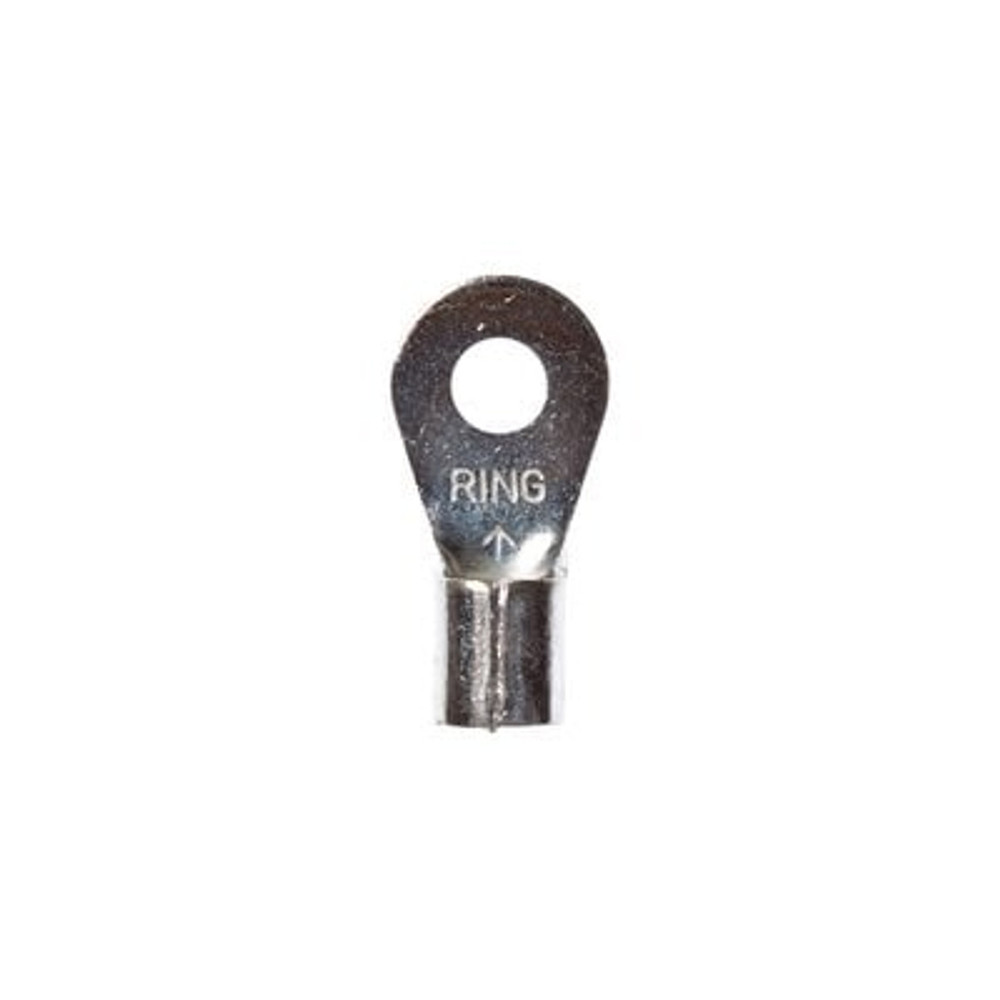

3M™ Non-Insulated Brazed Seam Ring Tongue Terminal 16-500S-W, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163768

Sold As: 500-Pack
SKU: 7100163768
MPN: 7100163768
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007291367
3M ID: 80601388541
MPN: 16-500S-W
$524.41 ($1.05 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Ring TypeStandard
Minimum Conductor Size (Imperial)4 AWG
Connection TypeCrimp
Country of OriginUnited States
Minimum Conductor Size (Metric)21.2 mm²
UL File NumberE23438
Minimum Stud Diameter (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius)175.0
Terminal StyleStandard
Maximum Conductor Size (Imperial)4 AWG
Maximum Conductor Size (Metric)21.2
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialNon-insulated
Barrel StyleBrazed
Minimum Stud Diameter (Metric)12.7
Terminal TypeRing
