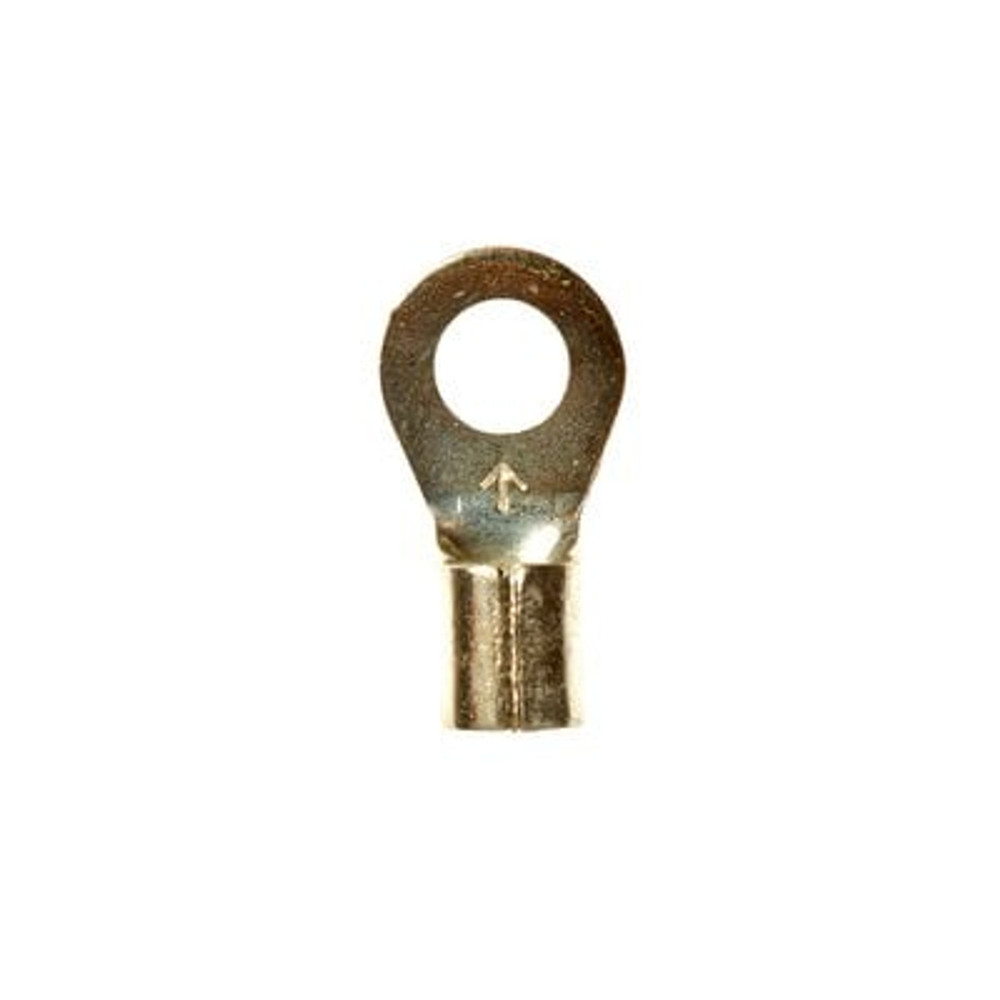

3M™ Non-Insulated Brazed Seam Ring Tongue Terminal 16-14-W, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163764

Sold As: 500-Pack
SKU: 7100163764
MPN: 7100163764
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007291312
3M ID: 80601388491
MPN: 16-14-W
$397.07 ($0.79 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)21.2 mm²
Terminal StyleStandard
Barrel Length (Imperial)0.25 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Metric) UOMmm
Insulation MaterialNon-insulated
Minimum Conductor Size (Imperial)4 AWG
Minimum Stud Diameter (Metric)6.35
Ring TypeStandard
Maximum Conductor Size (Metric)21.2
UL File NumberE23438
Minimum Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius)175.0
Maximum Conductor Size (Imperial)4 AWG
Country of OriginUnited States
Terminal TypeRing
Connection TypeCrimp
Barrel StyleBrazed
