3M Products & Supplies

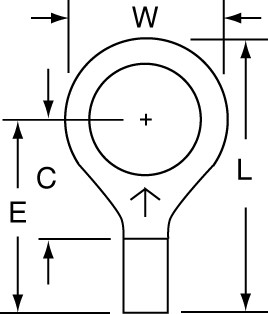

3M™ Non-Insulated Brazed Seam Ring Tongue Terminal 16-38-W, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163766

Sold As: 500-Pack
SKU: 7100163766
MPN: 7100163766
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007291336
3M ID: 80601388517
MPN: 16-38-W
$397.07 ($0.79 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Barrel StyleBrazed
Insulation MaterialNon-insulated
Minimum Conductor Size (Metric)21.2 mm²
Minimum Stud Diameter (Metric) UOMmm
UL File NumberE23438
Terminal TypeRing
Connection TypeCrimp
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)175.0
Terminal StyleStandard
Minimum Conductor Size (Imperial)4 AWG
Country of OriginUnited States
Minimum Stud Diameter (Imperial) UOMin
Ring TypeStandard
Maximum Conductor Size (Imperial)4 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)21.2
Minimum Stud Diameter (Metric)9.525
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
