3M Products & Supplies

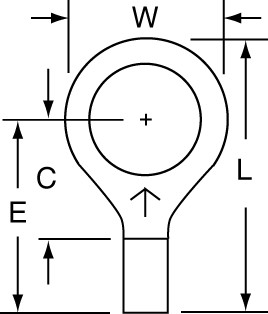

3M™ Non-Insulated Butted Seam Ring Tongue Terminal 12-38, Max. Temp. 347 °F (175 °C) for bare terminals - 7100163582

Sold As: 1000-Pack
SKU: 7100163582
MPN: 7100163582
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007283287
3M ID: 80601380209
MPN: 12-38
$111.54 ($0.11 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Minimum Stud Diameter (Metric)9.525
Maximum Conductor Size (Metric)2.08
Barrel Length (Imperial)0.25 Inch
Terminal TypeRing
Insulation MaterialNon-insulated
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleStandard
Minimum Conductor Size (Imperial)16 AWG
Connection TypeCrimp
Minimum Conductor Size (Metric)1.31 mm²
Minimum Stud Diameter (Imperial) UOMin
Barrel StyleBrazed
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)175.0
Ring TypeStandard
UL File NumberE23438
Country of OriginUnited States
Minimum Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Imperial)14 AWG
