3M Products & Supplies

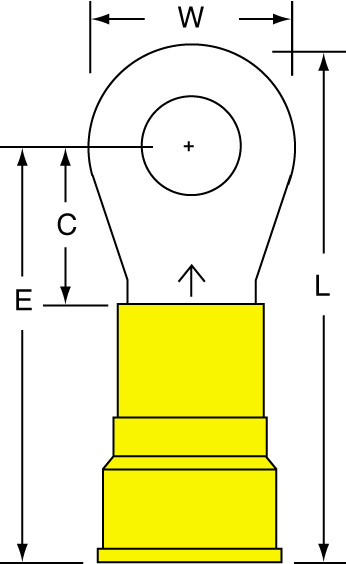

3M™ Nylon Insulated Brazed Seam Ring Tongue Terminal, 14-56-WN, standard-style ring tongue fits around the stud - 7100164214

Sold As: 1000-Pack
SKU: 7100164214
MPN: 7100164214
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082354
3M ID: 80610153928
MPN: 14-56-WN
$614.36 ($0.61 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Barrel StyleBrazed
Maximum Conductor Size (Metric)8.37
Minimum Conductor Size (Imperial)8 AWG
Minimum Conductor Size (Metric)8.37 mm²
Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Metric) UOMmm
Insulation MaterialNylon
Terminal StyleStandard
UL File NumberE23438
Ring TypeStandard
Minimum Stud Diameter (Metric)7.95
Terminal TypeRing
Maximum Conductor Size (Imperial)8 AWG
Maximum Operating Temperature (Celsius)175.0
Minimum Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Connection TypeCrimp
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
