3M Products & Supplies

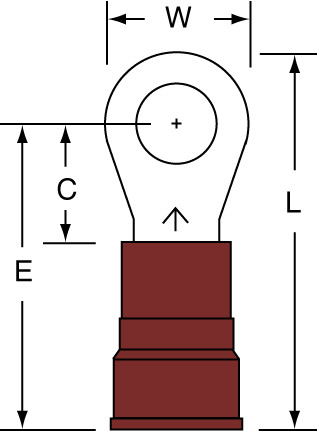

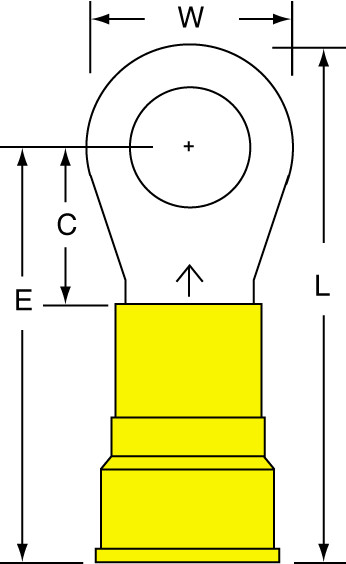

3M™ Nylon Insulated Brazed Seam Ring Tongue Terminal, 14-38-WN, standard-style ring tongue fits around the stud - 7100164215

Sold As: 1000-Pack
SKU: 7100164215
MPN: 7100164215
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082361
3M ID: 80610153936
MPN: 14-38-WN
$367.90 ($0.37 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Barrel Length (Imperial)0.25 Inch
Country of OriginUnited States
UL File NumberE23438
Minimum Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius)175.0
Connection TypeCrimp
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric) UOMmm
Terminal StyleStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)8.37
Minimum Stud Diameter (Metric)9.525
Minimum Conductor Size (Metric)8.37 mm²
Barrel StyleBrazed
Maximum Conductor Size (Imperial)8 AWG
Terminal TypeRing
Insulation MaterialNylon
Ring TypeStandard
Minimum Conductor Size (Imperial)8 AWG
