3M Products & Supplies

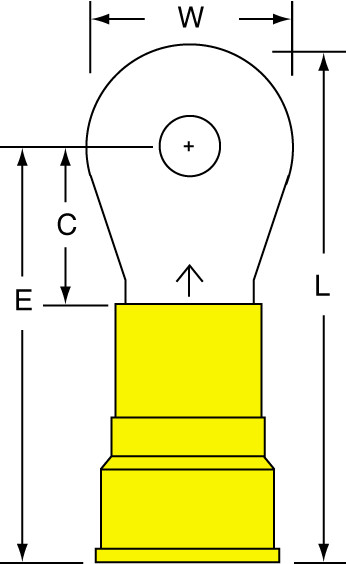

3M™ Nylon Insulated Brazed Seam Ring Tongue Terminal, 16-10-WN, standard-style ring tongue fits around the stud - 7100164222

Sold As: 1000-Pack
SKU: 7100164222
MPN: 7100164222
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082552
3M ID: 80610154124
MPN: 16-10-WN
$1,123.73 ($1.12 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Connection TypeCrimp
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)21.2
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeRing
Minimum Stud Diameter (Imperial) UOMin
UL File NumberE23438
Ring TypeStandard
Minimum Conductor Size (Metric)21.2 mm²
Minimum Stud Diameter (Metric) UOMmm
Terminal StyleStandard
Maximum Operating Temperature (Celsius)175.0
Insulation MaterialNylon
Barrel StyleBrazed
Maximum Conductor Size (Imperial)4 AWG
Minimum Conductor Size (Imperial)4 AWG
Minimum Stud Diameter (Metric)5.0
Country of OriginUnited States
