3M Products & Supplies

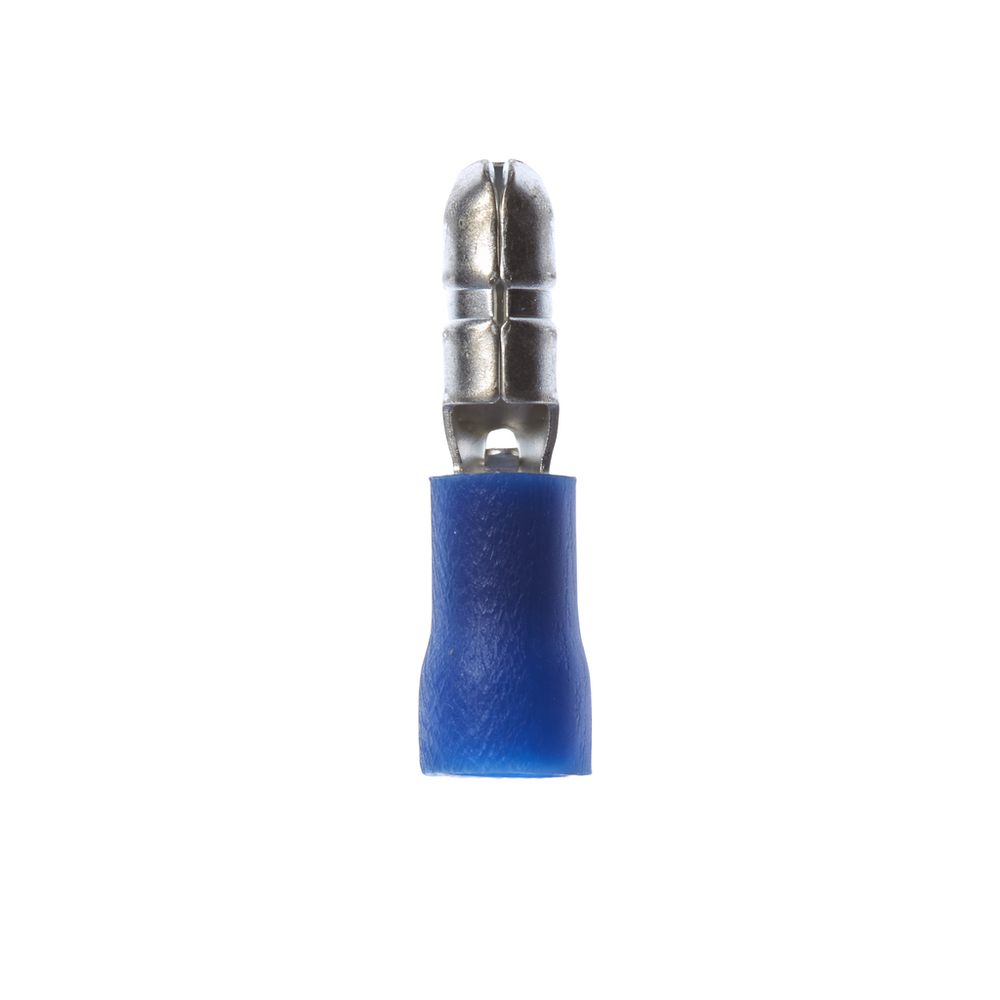

3M™ Nylon Insulated with Insulation Grip Bullet Style Male Disconnect, 82M-180-NB-A, Max. Temp. -40 to 221 °F (-40 to 105 °C) - 7100165192

Sold As: 1000-Pack
SKU: 7100165192
MPN: 7100165192
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138981488
3M ID: 80611444938
MPN: 82M-156-P-A
$111.54 ($0.11 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • This male disconnect terminal offers excellent holding force
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
  • Allows for quick and easy disconnect of wires

Specifications

Maximum Conductor Size (Metric)1 mm²
Connection Width (Metric)4.572
Minimum Conductor Size (Imperial)22 AWG
Disconnect TypeMale
Country of OriginTaiwan
Connection Width (Imperial)0.18
Minimum Conductor Size (Metric).34 mm²
Connection Width (Metric) UOMmm
Terminal TypeDisconnect
Connection Width (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)18 AWG
