3M Products & Supplies

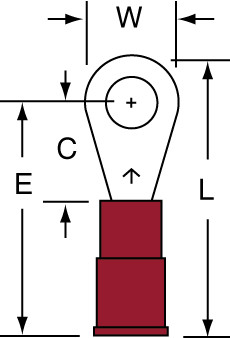

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal, 11-8S-NB, standard-style ring tongue fits around the stud - 7100163460

Sold As: 1000-Pack
SKU: 7100163460
MPN: 7100163460
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007278832
3M ID: 80601375548
MPN: 11-8S-NB
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Imperial)18 AWG
Minimum Stud Diameter (Metric)4.0
Insulation MaterialNylon with Insulation Grip
Terminal TypeRing
Maximum Conductor Size (Metric)0.823
Terminal StyleStandard
Minimum Conductor Size (Metric)0.326 mm²
Minimum Conductor Size (Imperial)22 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)175.0
Connection TypeCrimp
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Length (Imperial)0.25 Inch
Country of OriginUnited States
Barrel StyleBrazed
Ring TypeStandard
