3M Products & Supplies

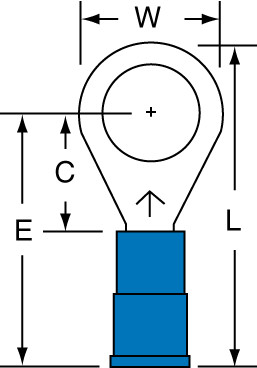

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal 12-8-NB, standard-style ring tongue fits around the stud - 7000132194

Sold As: 1000-Pack
SKU: 7000132194
MPN: 7000132194
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50054007282889
3M ID: 80601379805
MPN: 12-8-NB
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Barrel StyleBrazed
Minimum Stud Diameter (Metric)4.0
Maximum Conductor Size (Imperial)14 AWG
Minimum Conductor Size (Imperial)16 AWG
Minimum Stud Diameter (Metric) UOMmm
Terminal StyleStandard
Insulation MaterialNylon with Insulation Grip
Ring TypeStandard
Maximum Conductor Size (Metric)2.08
Barrel Length (Imperial)0.25 Inch
Country of OriginUnited States
Minimum Stud Diameter (Imperial) UOMin
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Connection TypeCrimp
Maximum Operating Temperature (Celsius)175.0
Minimum Conductor Size (Metric)1.31 mm²
Terminal TypeRing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
