3M Products & Supplies

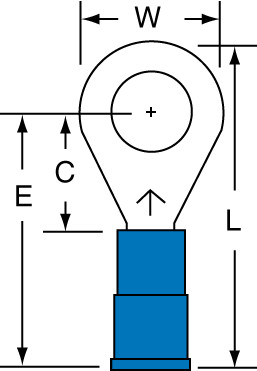

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal 12-4S-NB, standard-style ring tongue fits around the stud - 7100163548

Sold As: 1000-Pack
SKU: 7100163548
MPN: 7100163548
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007282822
3M ID: 80601379748
MPN: 12-4S-NB
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Maximum Operating Temperature (Celsius)175.0
Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Metric)2.5
Minimum Conductor Size (Metric)1.31 mm²
Barrel StyleBrazed
Terminal StyleStandard
Maximum Conductor Size (Imperial)14 AWG
Terminal TypeRing
UL File NumberE23438
Minimum Conductor Size (Imperial)16 AWG
Connection TypeCrimp
Ring TypeStandard
Minimum Stud Diameter (Imperial) UOMin
Insulation MaterialNylon with Insulation Grip
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Country of OriginUnited States
Maximum Conductor Size (Metric)2.08
Minimum Stud Diameter (Metric) UOMmm
