3M Products & Supplies

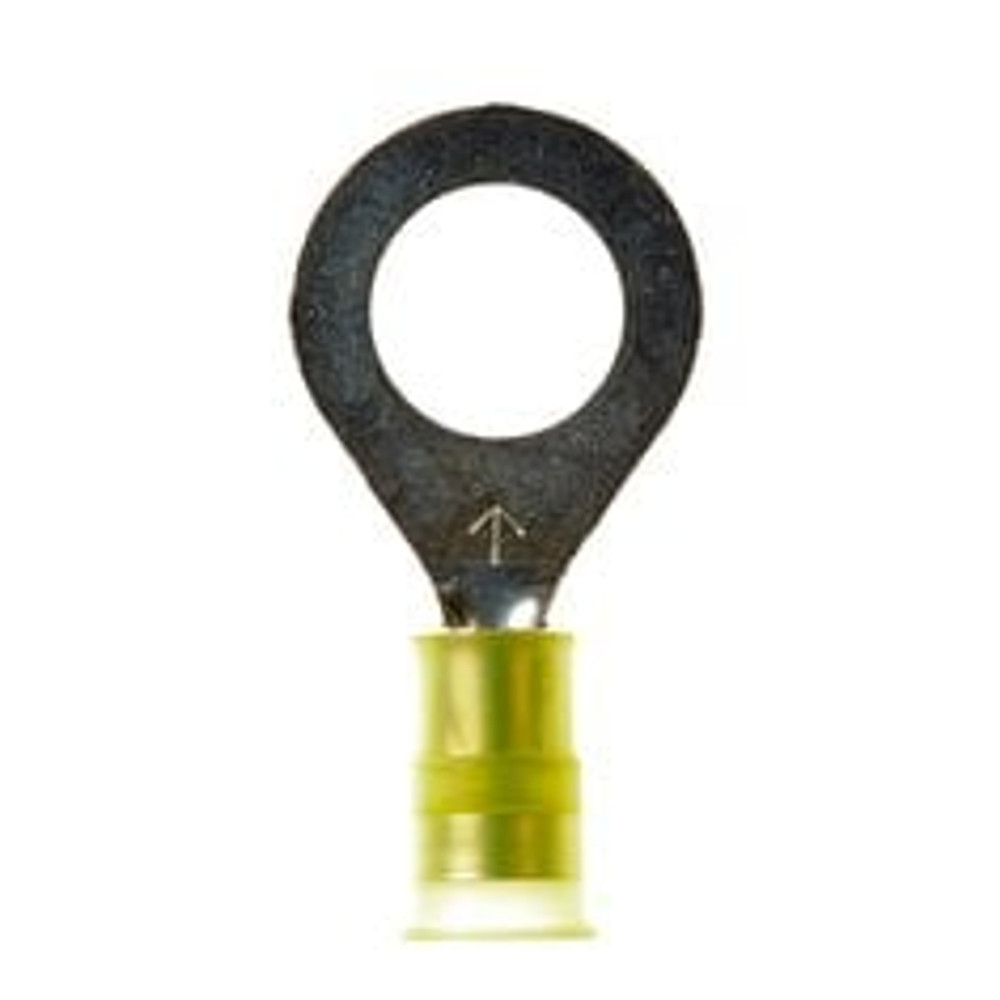

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal 13-4S-NB, standard-style ring tongue fits around the stud - 7100163646

Sold As: 1000-Pack
SKU: 7100163646
MPN: 7100163646
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007286912
3M ID: 80601384060
MPN: 13-4S-NB
$326.65 ($0.33 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Ring TypeStandard
Connection TypeCrimp
Maximum Conductor Size (Metric)5.26
Minimum Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric) UOMmm
Minimum Stud Diameter (Metric)2.5
Maximum Operating Temperature (Celsius)175.0
Minimum Conductor Size (Imperial)12 AWG
Barrel Length (Imperial)0.25 Inch
Barrel StyleBrazed
Maximum Conductor Size (Imperial)10 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleStandard
Insulation MaterialNylon with Insulation Grip
Terminal TypeRing
Minimum Conductor Size (Metric)3.31 mm²
UL File NumberE23438
