3M Products & Supplies

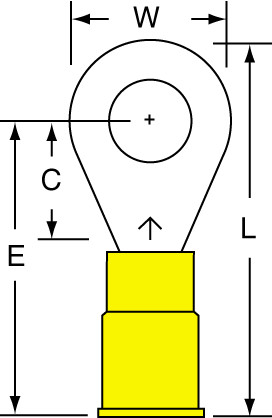

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal 13-14-NB, standard-style ring tongue fits around the stud - 7100163653

Sold As: 1000-Pack
SKU: 7100163653
MPN: 7100163653
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007286981
3M ID: 80601384136
MPN: 13-14-NB
$269.72 ($0.27 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Barrel Length (Imperial)0.25 Inch
Terminal TypeRing
Maximum Conductor Size (Metric)5.26
Country of OriginUnited States
Maximum Operating Temperature (Celsius)175.0
Ring TypeStandard
Maximum Conductor Size (Imperial)10 AWG
Minimum Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Minimum Conductor Size (Metric)3.31 mm²
Terminal StyleStandard
Minimum Conductor Size (Imperial)12 AWG
Insulation MaterialNylon with Insulation Grip
Barrel StyleBrazed
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection TypeCrimp
Minimum Stud Diameter (Metric)6.35
Minimum Stud Diameter (Metric) UOMmm
