3M Products & Supplies

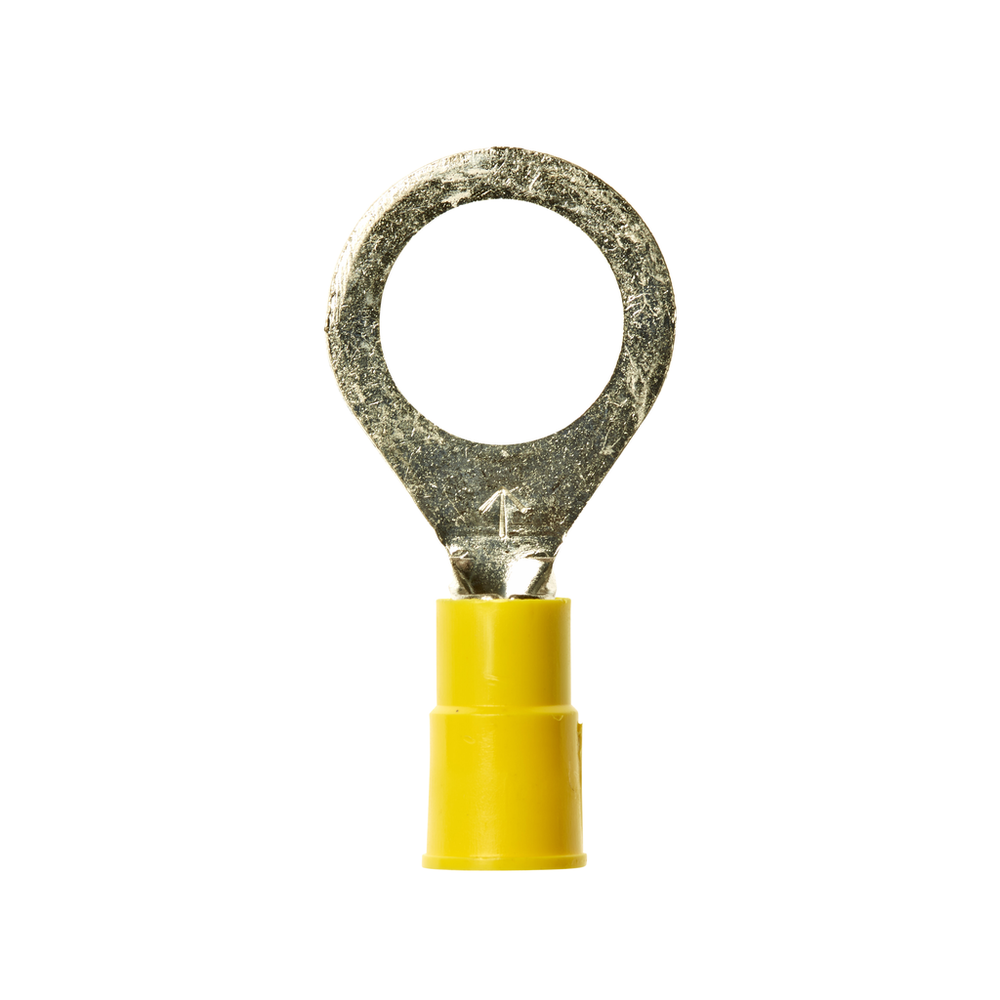

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal 13-500-NB, standard-style ring tongue fits around the stud - 7100163659

Sold As: 1000-Pack
SKU: 7100163659
MPN: 7100163659
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007287049
3M ID: 80601384193
MPN: 13-500-NB
$318.42 ($0.32 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleStandard
Insulation MaterialNylon with Insulation Grip
Minimum Conductor Size (Metric)3.31 mm²
Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric) UOMmm
UL File NumberE23438
Barrel StyleBrazed
Barrel Length (Imperial)0.25 Inch
Terminal TypeRing
Maximum Operating Temperature (Celsius)175.0
Country of OriginUnited States
Ring TypeStandard
Maximum Conductor Size (Imperial)10 AWG
Maximum Conductor Size (Metric)5.26
Minimum Stud Diameter (Metric)12.7
Connection TypeCrimp
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)12 AWG
