3M Products & Supplies

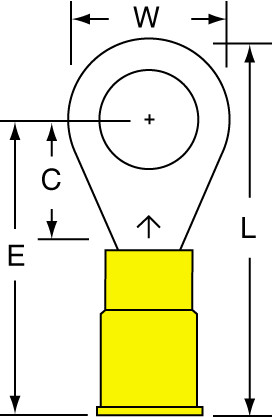

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal 13-56S-NB, standard-style ring tongue fits around the stud - 7100163654

Sold As: 1000-Pack
SKU: 7100163654
MPN: 7100163654
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007286998
3M ID: 80601384144
MPN: 13-56S-NB
$269.72 ($0.27 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Maximum Conductor Size (Metric)5.26
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel StyleBrazed
Maximum Operating Temperature (Celsius)175.0
Minimum Stud Diameter (Metric) UOMmm
Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric)7.95
UL File NumberE23438
Maximum Conductor Size (Imperial)10 AWG
Terminal StyleStandard
Country of OriginUnited States
Insulation MaterialNylon with Insulation Grip
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)12 AWG
Connection TypeCrimp
Terminal TypeRing
Ring TypeStandard
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
