3M Products & Supplies

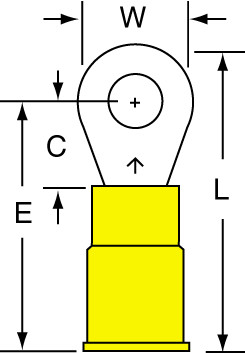

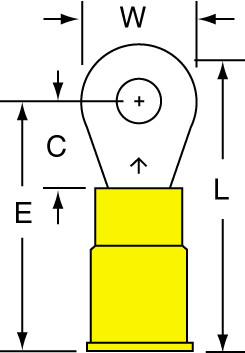

3M™ Nylon Insulated with Insulation Grip Ring Tongue Terminal 13-6S-NB, standard-style ring tongue fits around the stud - 7100163647

Sold As: 1000-Pack
SKU: 7100163647
MPN: 7100163647
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007286929
3M ID: 80601384078
MPN: 13-6S-NB
$221.02 ($0.22 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Maximum Conductor Size (Metric)5.26
Country of OriginUnited States
Minimum Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Barrel StyleBrazed
Minimum Stud Diameter (Metric)3.5
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)10 AWG
Terminal StyleStandard
UL File NumberE23438
Connection TypeCrimp
Minimum Stud Diameter (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Ring TypeStandard
Terminal TypeRing
Maximum Operating Temperature (Celsius)175.0
Insulation MaterialNylon with Insulation Grip
Minimum Conductor Size (Metric)3.31 mm²
