3M Products & Supplies

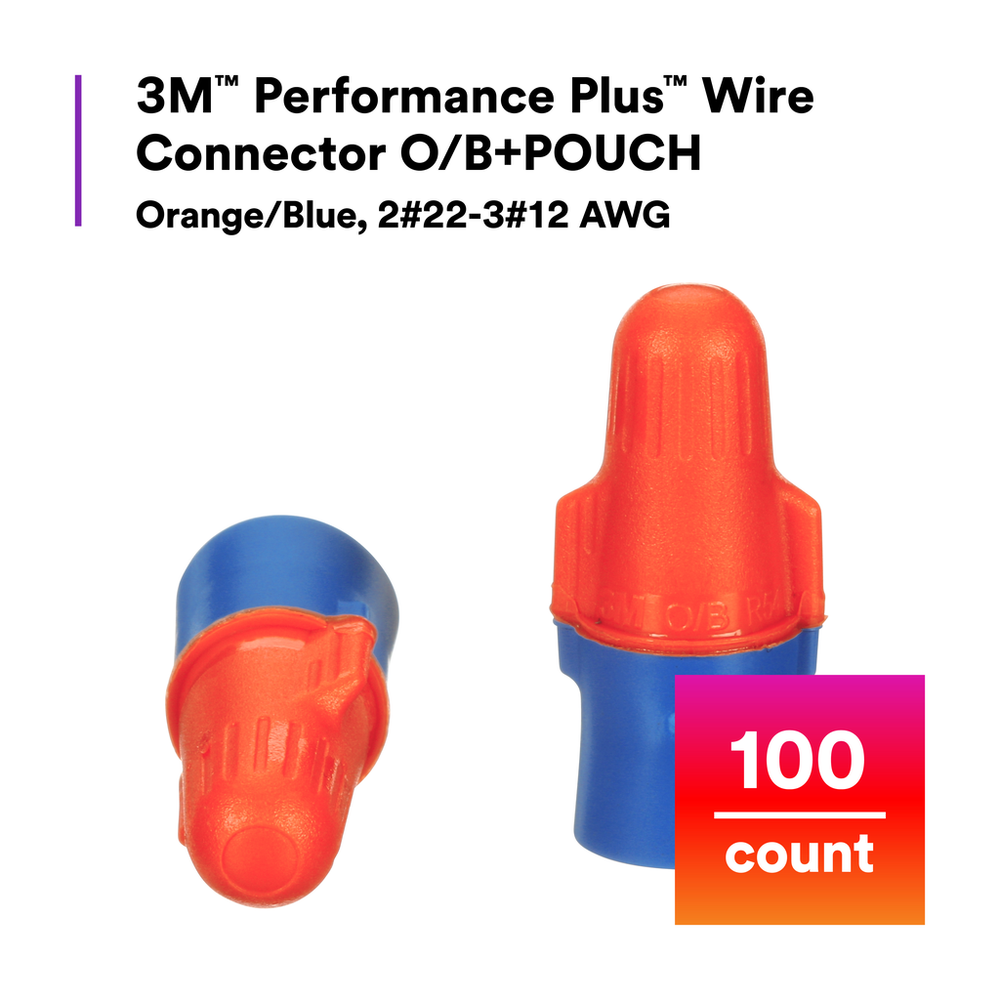

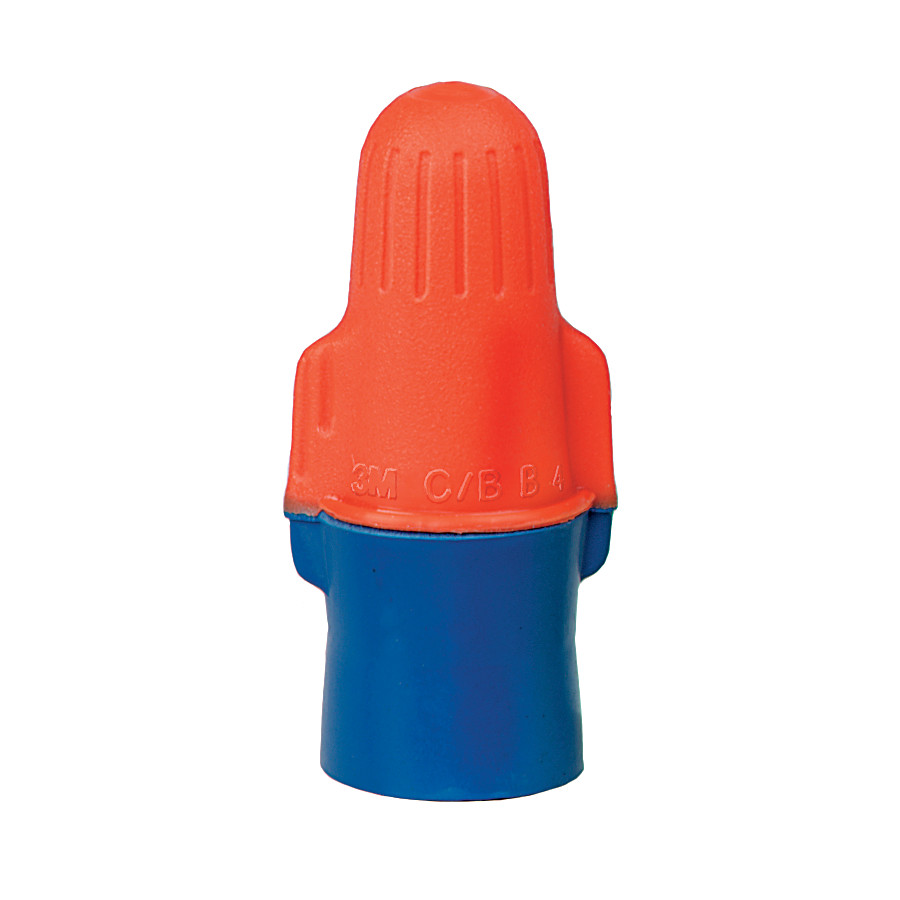

3M™ Performance Plus™ Wire Connector O/B+POUCH, 100/Pouch, 1000/Case - 7100127195

Name: 3M™ Performance Plus™ Wire Connector O/B+POUCH, 100/Pouch, 1000/Case - 7100127195
Brand: 3M Products & Supplies
SKU: 7100127195
Price: 167.82 USD
Availability: InStock

Sold As: 1000-Pack

SKU: 7100127195

MPN: 7100127195

Stock Item: Stock items typically ship within 2-3 business days

UPC: 10054007431524

3M ID: 80000209728

5 Digit UPC: 43152

$167.82 ($0.17 / Count)

Hurry up! Current stock:

Quantity:

Product Description

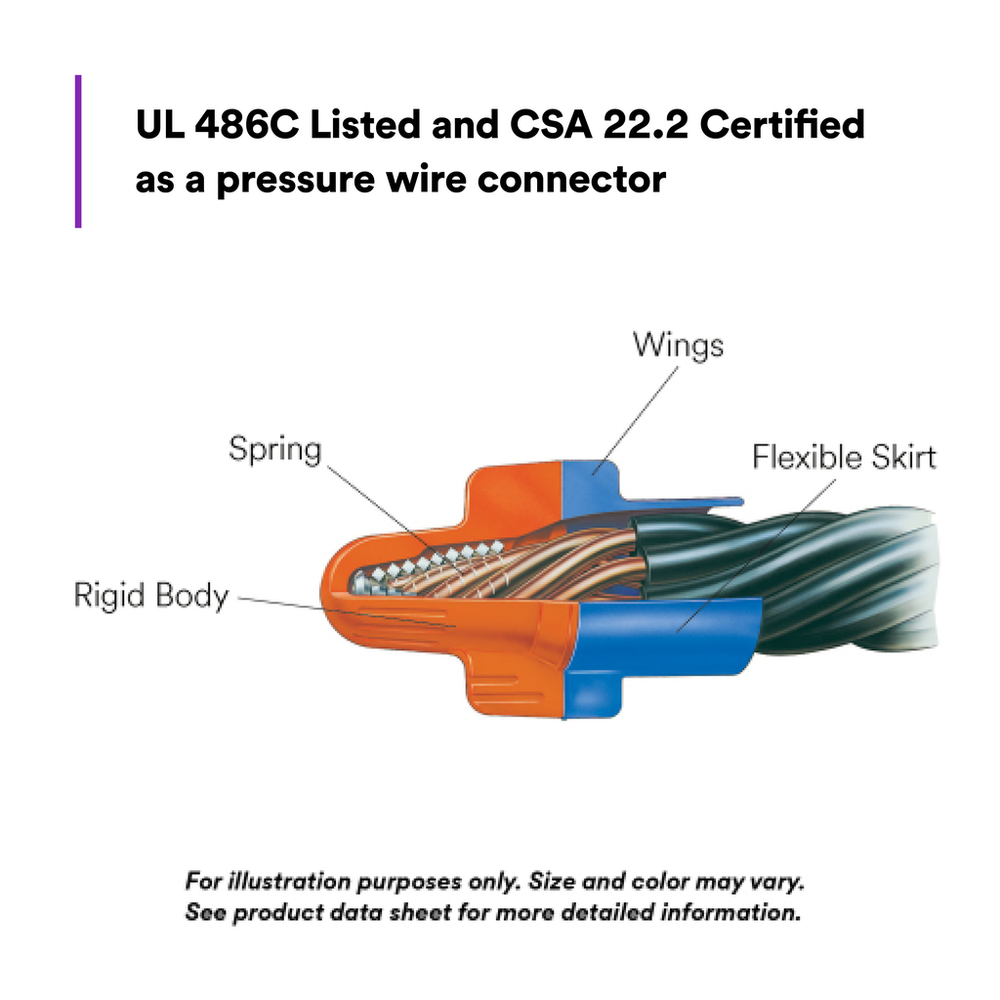

3M™ Performance Plus™ Wire Connectors O/B+ are constructed to work with a wire range between 2 #22 to 3 #12 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus™ connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.

Features

Dual color coded: one connector does the job of two traditional connectors in the majority of applications
Flexible spring expands for greater wire range and reuse
Strong bite for a secure, reliable connection
UL Listed

Spec Sheet

Downloads

Specifications

Country of Origin	United States
Product Color	Blue
Flame Retardant	Yes
Maximum Operating Temperature (Fahrenheit)	221.0
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Boxes per Case	10.0
Maximum Conductor Size (Metric)	4
Insulation Material	Polypropylene & Thermoplastic Elastomer
Maximum Operating Temperature (Celsius) UOM	Degree
Specifications Met	CSA, UL Listed
Maximum Operating Temperature (Celsius)	105.0
Connection Type	Wire
Maximum Conductor Size (Imperial)	12 AWG
Grease Filling Against Corrosion	No
Minimum Operating Temperature (Celsius)	0.0
Minimum Conductor Size (Imperial)	22 AWG
Maximum Voltage Rating	600 V
Units per Case	1000.0
Connector Style	Twist On
Minimum Operating Temperature (Fahrenheit)	0.0
Packaging	Box
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Insulation Color	Orange/Blue
Minimum Conductor Size (Metric)	.34 mm²
Product Type	Connector
