3M™ Performance Plus™ Wire Connectors O/B+ - 7010351774

Name: 3M™ Performance Plus™ Wire Connectors O/B+ - 7010351774
Brand: 3M Products & Supplies
SKU: 7010351774
Price: 100.04 USD
Availability: InStock

Sold As: 500-Pack

SKU: 7010351774

MPN: 7010351774

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00054007431534

3M ID: 80611614746

MPN: O/B+JUG BKN

$100.04 ($0.20 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Performance Plus™ Wire Connectors O/B+ are constructed to work with a wire range between 2 #22 to 3 #12 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus™ connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.

Features

Flexible spring expands for greater wire range and reuse

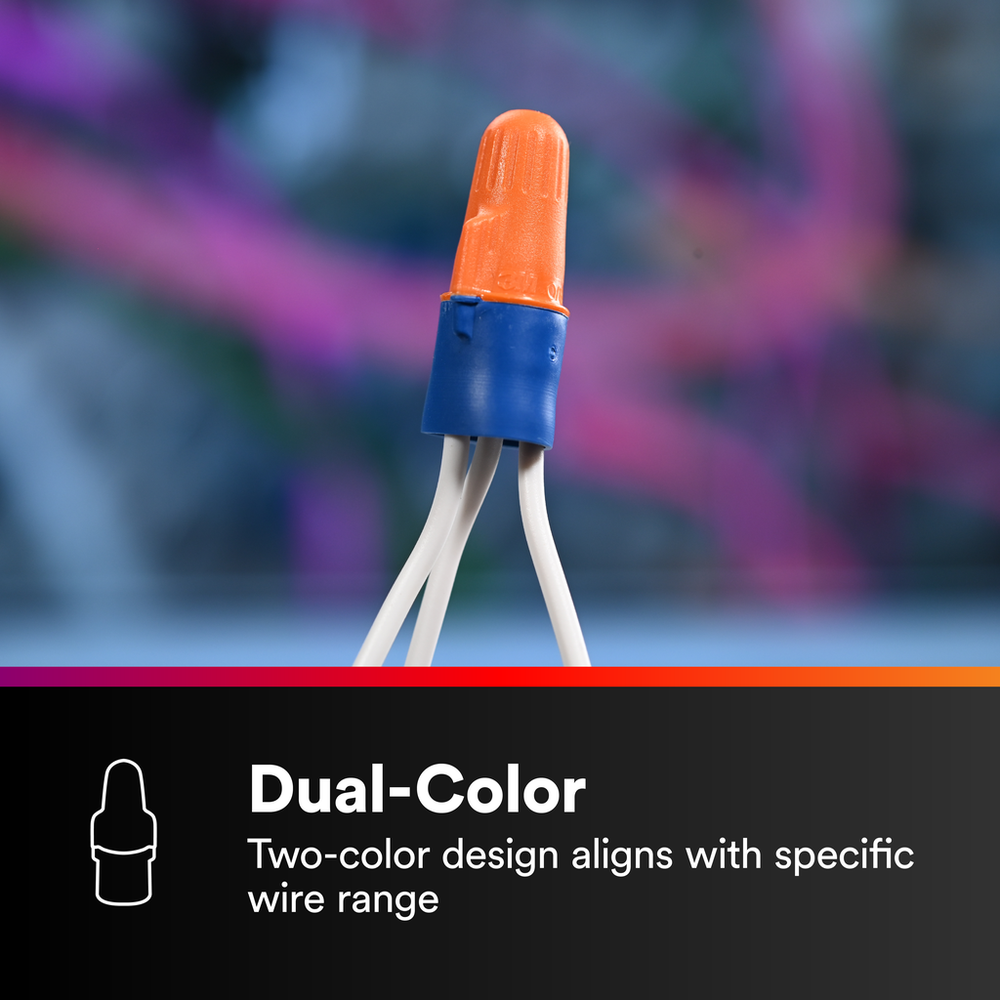

Dual color coded: one connector does the job of two traditional connectors in the majority of applications
UL Listed
Strong bite for a secure, reliable connection

Downloads

Safety Data Sheet

Specifications

Maximum Operating Temperature (Fahrenheit) UOM	Degree
Maximum Operating Temperature (Celsius) UOM	Degree
Connection Type	Pigtail
Product Color	Blue
Minimum Conductor Size (Imperial)	22 AWG
Maximum Operating Temperature (Celsius)	105.0
Connector Style	Twist On
Country of Origin	United States
Maximum Conductor Size (Metric)	4
Minimum Conductor Size (Metric)	.34 mm²
Minimum Operating Temperature (Celsius)	0.0
Maximum Conductor Size (Imperial)	12 AWG
Minimum Operating Temperature (Fahrenheit)	0.0
Product Type	Connector
Maximum Operating Temperature (Fahrenheit)	221.0
Flame Retardant	Yes
