3M™ Performance Plus™ Wire Connector O/B+JUG, 500 per Jug, 10000/Case - 7000133222

Name: 3M™ Performance Plus™ Wire Connector O/B+JUG, 500 per Jug, 10000/Case - 7000133222
Brand: 3M Products & Supplies
SKU: 7000133222
Price: 1310.7 USD
Availability: InStock

Sold As: 10000-Pack

SKU: 7000133222

MPN: 7000133222

Stock Item: Stock items typically ship within 2-3 business days

UPC: 30054007431535

3M ID: 80611454531

5 Digit UPC: 43153

$1,310.70 ($0.13 / Count)

Hurry up! Current stock:

Quantity:

Product Description

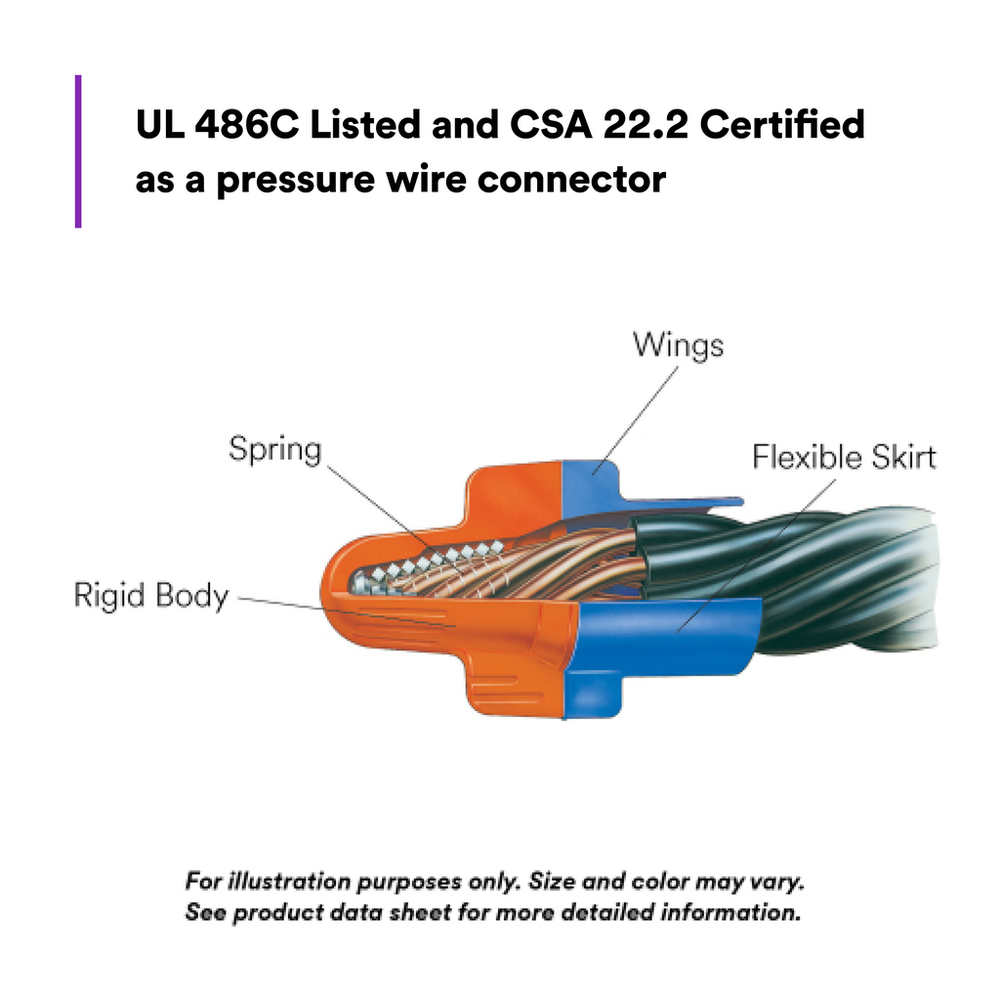

3M™ Performance Plus™ Wire Connectors O/B+ are constructed to work with a wire range between 2 #22 to 3 #12 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus™ connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.

Features

Flexible spring expands for greater wire range and reuse
Dual color coded: one connector does the job of two traditional connectors in the majority of applications
UL Listed

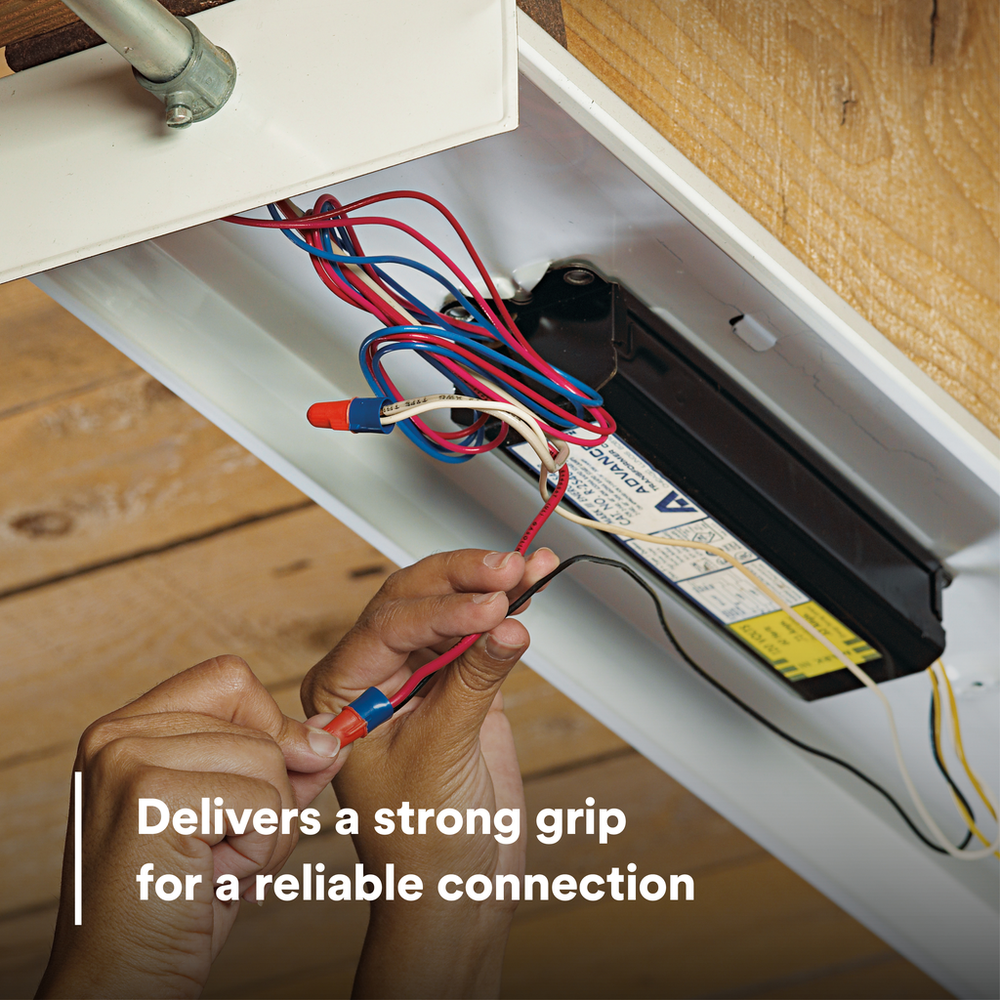

Strong bite for a secure, reliable connection

Downloads

Safety Data Sheet

Document Brochures

Document Catalogs

Specifications

Country of Origin	United States
Minimum Operating Temperature (Fahrenheit)	0.0
Minimum Conductor Size (Metric)	.34 mm²
Maximum Operating Temperature (Celsius)	105.0
Maximum Voltage Rating	600 V
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Specifications Met	CSA, UL Listed
Maximum Operating Temperature (Fahrenheit)	221.0
Packaging	Jug
Connection Type	Wire
Maximum Operating Temperature (Celsius) UOM	Degree
Minimum Operating Temperature (Celsius)	0.0
Boxes per Case	20.0
Maximum Conductor Size (Metric)	4
Minimum Conductor Size (Imperial)	22 AWG
Units per Case	10000.0
Flame Retardant	Yes
Product Type	Connector
Product Color	Blue
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Maximum Conductor Size (Imperial)	12 AWG
Connector Style	Twist On
