3M Products & Supplies

3M™ Performance Plus™ Wire Connector R/Y+JUG, 500 per Jug, 4000/Case - 7000058824

Name: 3M™ Performance Plus™ Wire Connector R/Y+JUG, 500 per Jug, 4000/Case - 7000058824
Brand: 3M Products & Supplies
SKU: 7000058824
Price: 671.28 USD
Availability: InStock

Sold As: 4000-Pack

SKU: 7000058824

MPN: 7000058824

Stock Item: Stock items typically ship within 2-3 business days

UPC: 10054007431555

3M ID: 80611454515

5 Digit UPC: 43155

$671.28 ($0.17 / Count)

Hurry up! Current stock:

Quantity:

Product Description

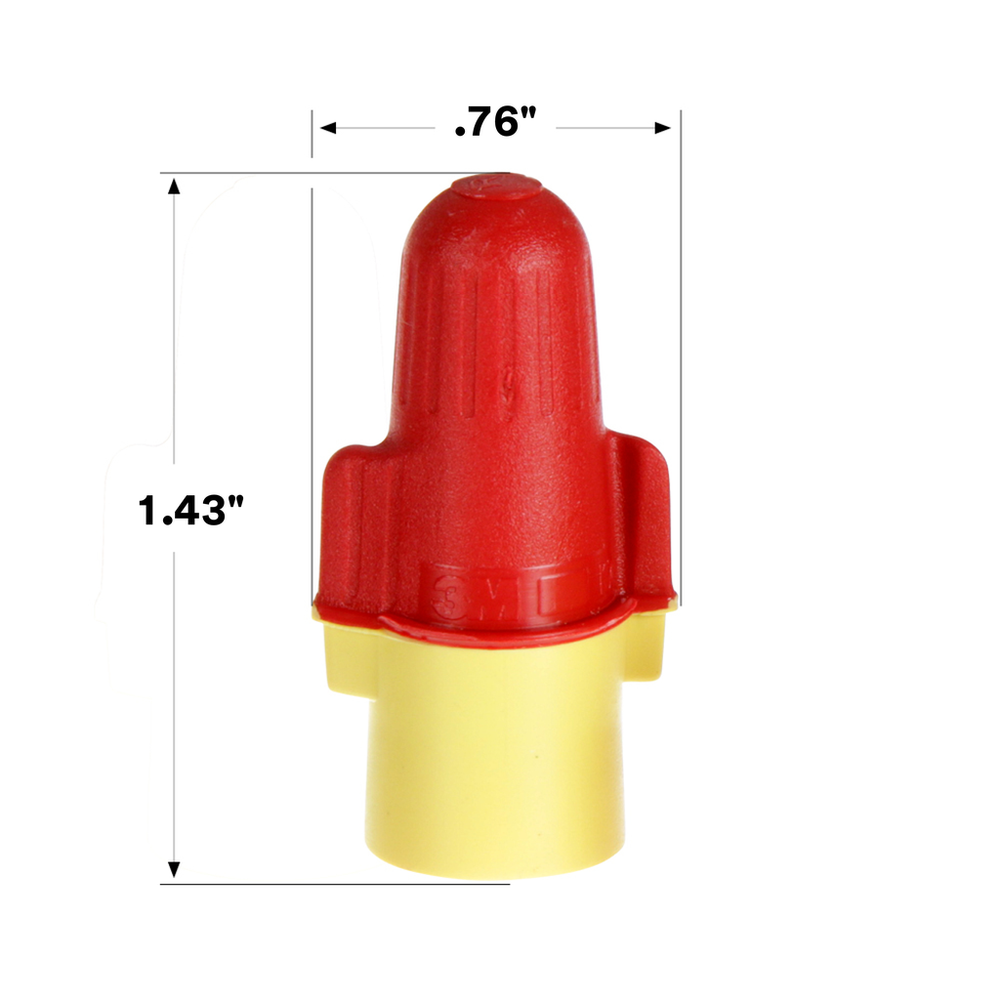

3M™ Performance Plus™ Wire Connectors R/Y+ are constructed to work with a wire range between 2 #18 to 2 #8 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus™ connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.

Features

UL Listed
Dual color coded: one connector does the job of two traditional connectors in the majority of applications
Strong bite for a secure, reliable connection
Flexible spring expands for greater wire range and reuse

Downloads

Document Brochures

Document Catalogs

Specifications

Country of Origin	United States
Product Color	Red
Minimum Operating Temperature (Fahrenheit)	0.0
Maximum Voltage Rating	600 V
Product Type	Connector
Packaging	Jug
Boxes per Case	8.0
Grease Filling Against Corrosion	No
Maximum Operating Temperature (Celsius)	105.0
Units per Case	4000.0
Maximum Conductor Size (Imperial)	8 AWG
Maximum Conductor Size (Metric)	10
Flame Retardant	Yes
Specifications Met	CSA, UL Listed
Connector Style	Twist On
Maximum Operating Temperature (Fahrenheit)	221.0
Maximum Operating Temperature (Fahrenheit) UOM	Degree
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Connection Type	Wire
Minimum Conductor Size (Imperial)	22 AWG
Minimum Conductor Size (Metric)	.34 mm²
Maximum Operating Temperature (Celsius) UOM	Degree
Minimum Operating Temperature (Celsius)	0.0
