3M™ Performance Plus™ Wire Connector T/Y+JUG, 500 per Jug, 10000/Case - 7000133223

Name: 3M™ Performance Plus™ Wire Connector T/Y+JUG, 500 per Jug, 10000/Case - 7000133223
Brand: 3M Products & Supplies
SKU: 7000133223
Price: 1310.7 USD
Availability: InStock

Sold As: 10000-Pack

SKU: 7000133223

MPN: 7000133223

Stock Item: Stock items typically ship within 2-3 business days

UPC: 10051128552190

3M ID: 80611454549

5 Digit UPC: 55219

$1,310.70 ($0.13 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Performance Plus™ Wire Connectors T/Y+ are constructed to work with a wire range between 2 #22 to 3 #12 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus™ connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.

Features

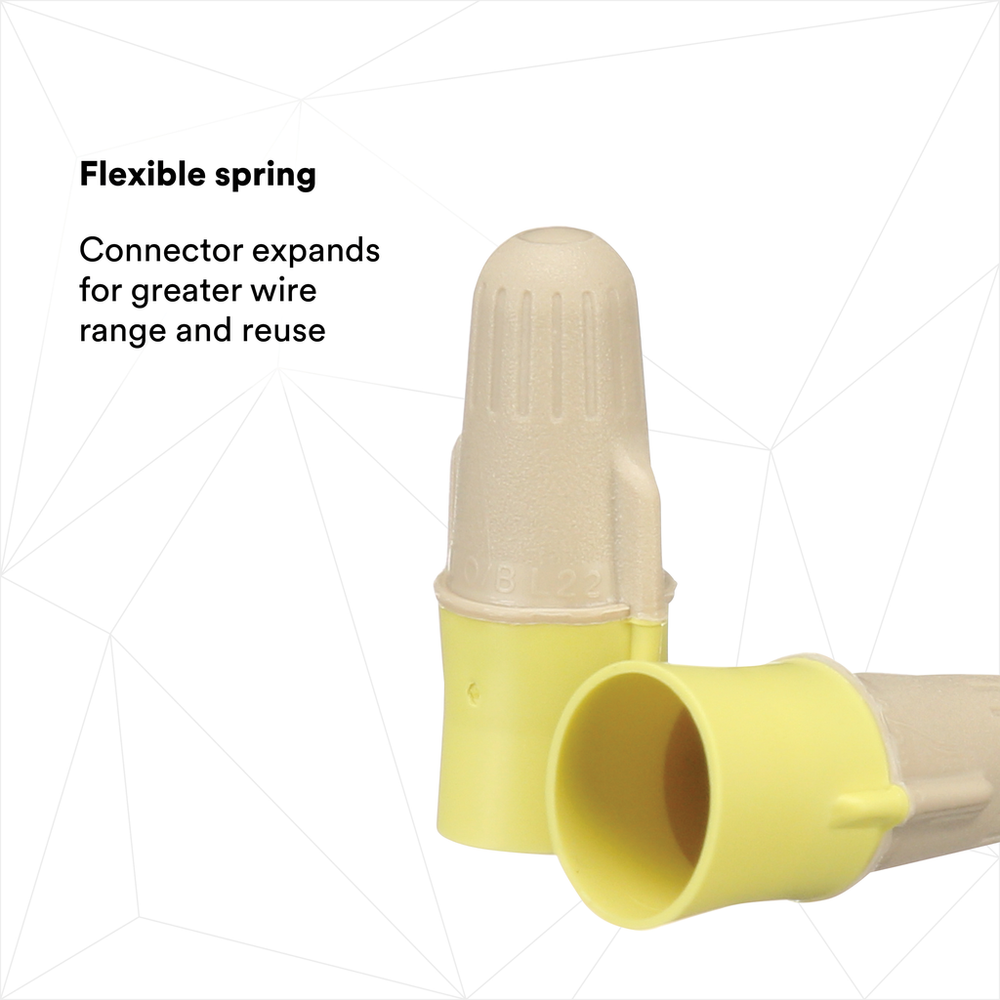

Flexible spring expands for greater wire range and reuse

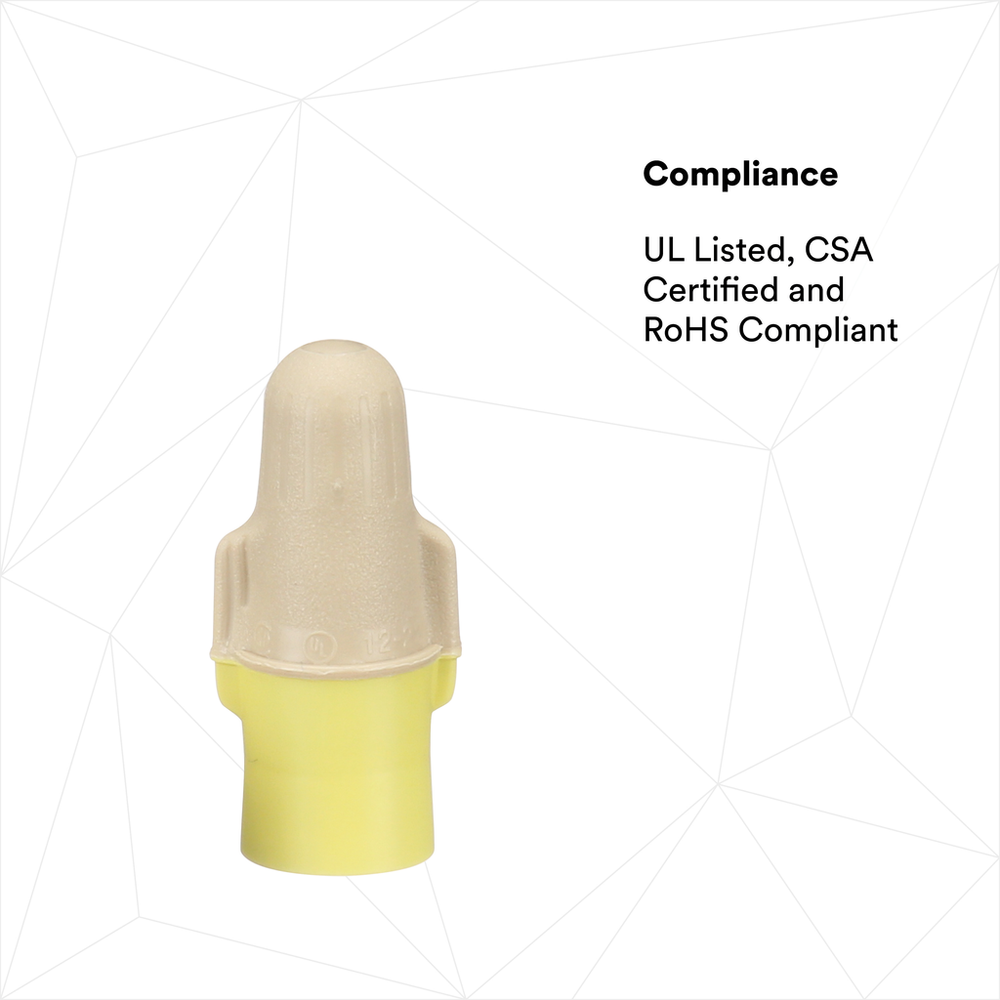

UL Listed

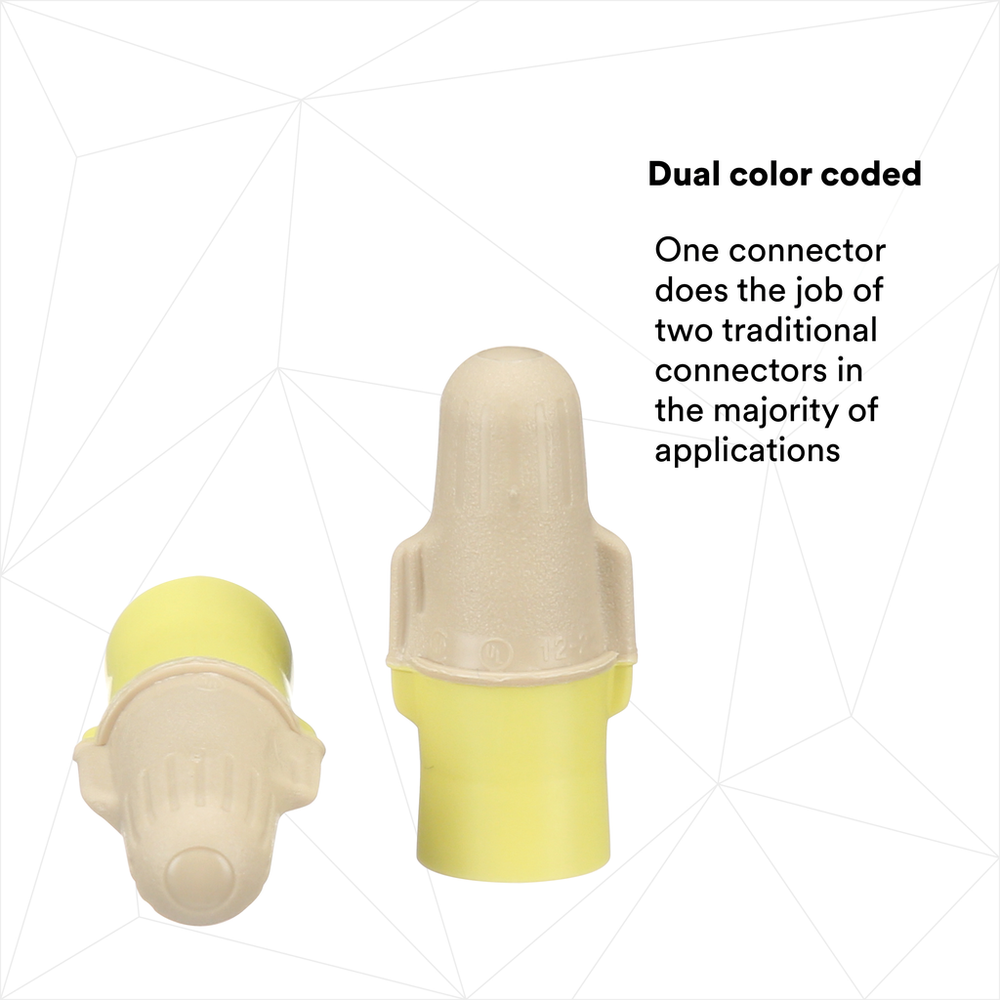

Dual color coded: one connector does the job of two traditional connectors in the majority of applications

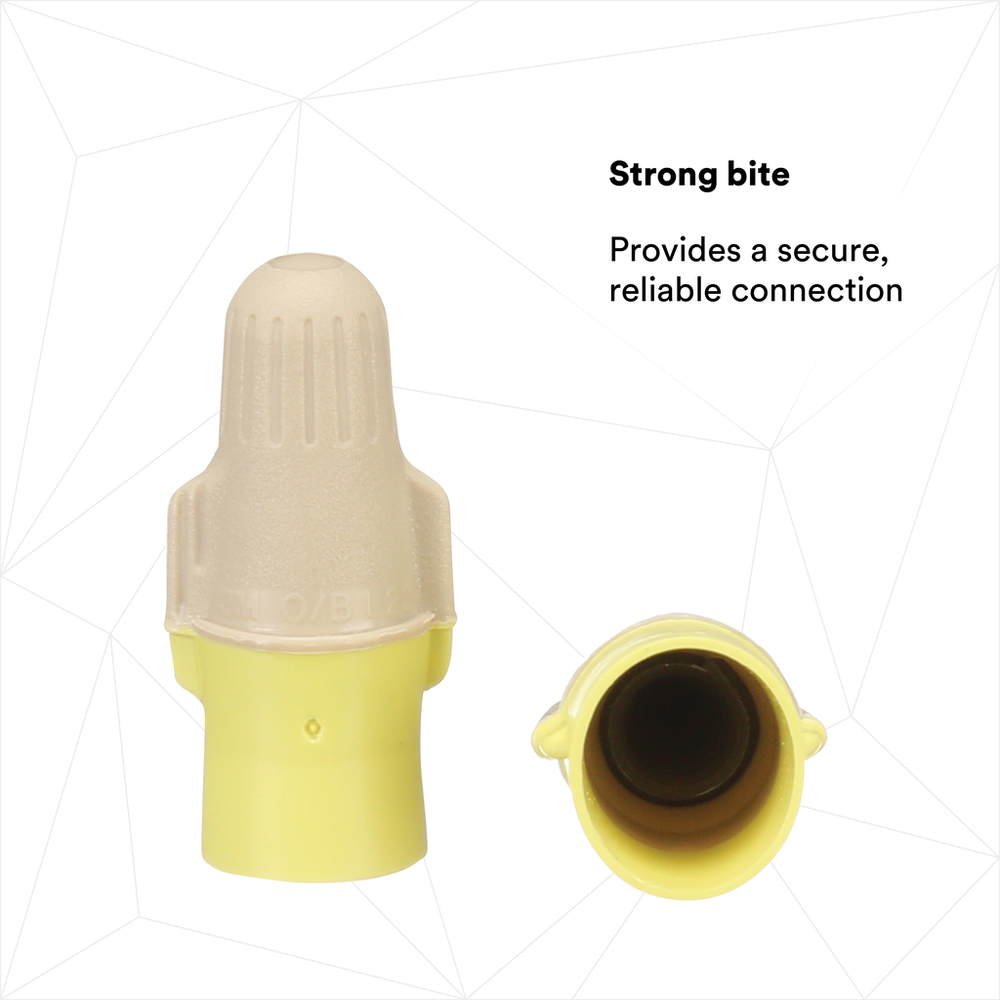

Strong bite for a secure, reliable connection

Spec Sheet

Downloads

Document Catalogs

Spec Sheet

Document Brochures

Specifications

Country of Origin	United States
Flame Retardant	Yes
Maximum Conductor Size (Imperial)	12 AWG
Product Color	Tan
Maximum Operating Temperature (Fahrenheit) UOM	Degree
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Minimum Operating Temperature (Celsius)	0.0
Units per Case	10000.0
Maximum Operating Temperature (Fahrenheit)	221.0
Minimum Conductor Size (Imperial)	22 AWG
Packaging	Jug
Maximum Voltage Rating	600 V
Connector Style	Twist On
Maximum Conductor Size (Metric)	4
Product Type	Connector
Minimum Conductor Size (Metric)	.34 mm²
Connection Type	Wire
Maximum Operating Temperature (Celsius) UOM	Degree
Minimum Operating Temperature (Fahrenheit)	0.0
Maximum Operating Temperature (Celsius)	105.0
Specifications Met	CSA, UL Listed
