3M Products & Supplies

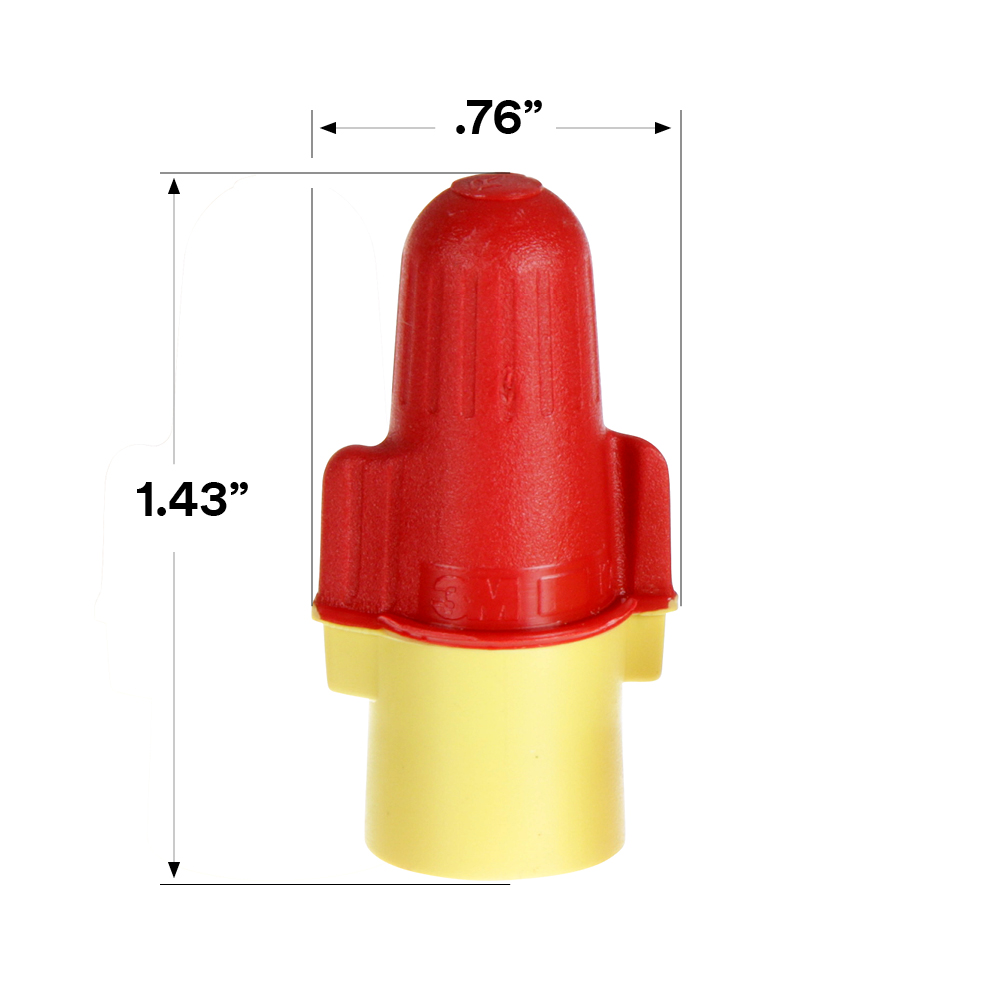

3M™ Performance Plus™ Wire Connectors R/Y+KEG, 17000 per Keg, 17000/DR - 7000133219

Sold As: 17000-Pack
SKU: 7000133219
MPN: 7000133219
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128579435
3M ID: 80611450679
5 Digit UPC: 57943
$2,826.74 ($0.17 / Count)
Hurry up! Current stock:

Product Description

3M™ Performance Plus™ Wire Connectors R/Y+ are constructed to work with a wire range between 2 #18 to 2 #8 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus™ connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.

Features

  • Flexible spring expands for greater wire range and reuse
  • UL Listed
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • Strong bite for a secure, reliable connection

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)10
Flame RetardantYes
Connector StyleTwist On
PackagingKeg
Units per Case17000.0
Maximum Operating Temperature (Celsius)105.0
Specifications MetCSA, UL Listed
Maximum Operating Temperature (Fahrenheit)221.0
Connection TypeWire
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)0.0
Minimum Conductor Size (Imperial)22 AWG
Maximum Voltage Rating600 V
Product ColorRed
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)8 AWG
Product TypeConnector
Minimum Conductor Size (Metric).34 mm²
Minimum Operating Temperature (Fahrenheit)0.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
