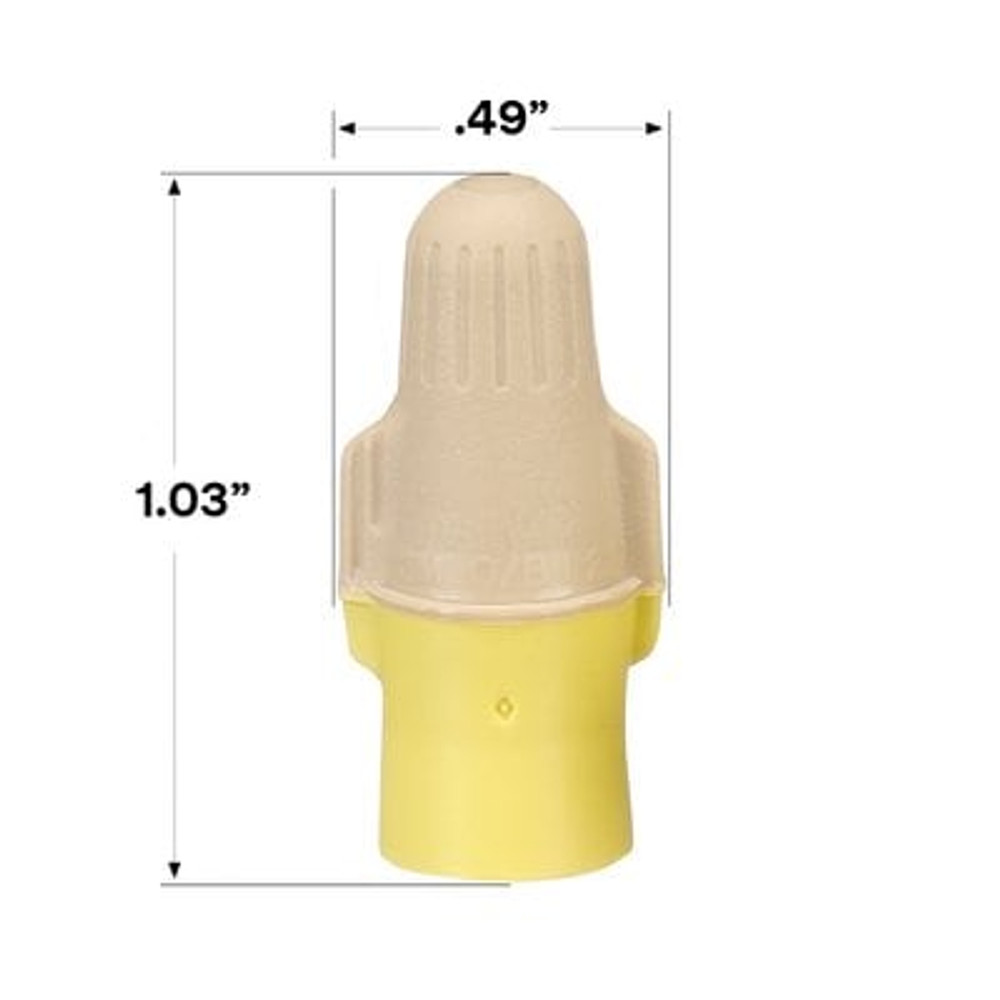

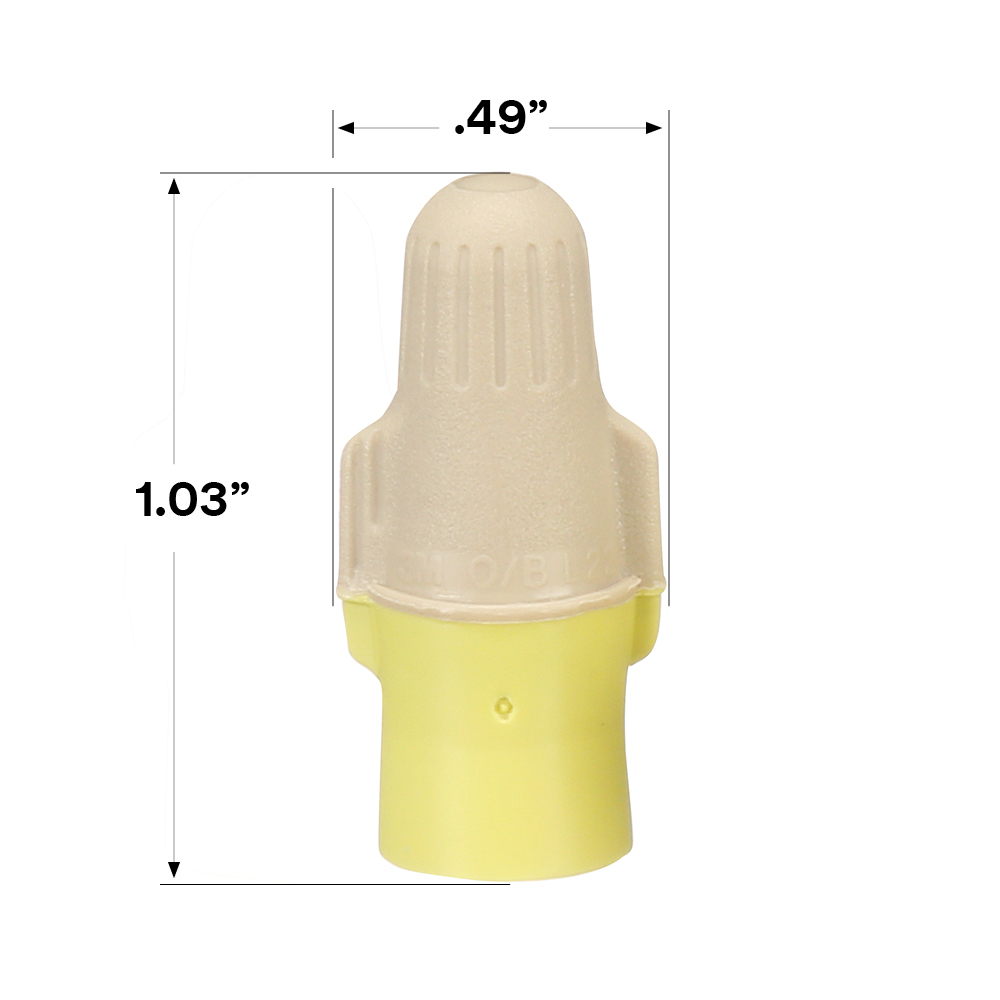

3M™ Performance Plus™ Wire Connector T/Y+KEG, 40,000 per Ke, 40000/DR - 7000133268

Sold As: 40000-Pack
SKU: 7000133268
MPN: 7000133268
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128586235
3M ID: 80611457682
5 Digit UPC: 58623
$5,186.26 ($0.13 / Count)
Hurry up! Current stock:

Product Description

3M™ Performance Plus™ Wire Connectors T/Y+ are constructed to work with a wire range between 2 #22 to 3 #12 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus™ connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.

Features

  • UL Listed
  • Flexible spring expands for greater wire range and reuse
  • Strong bite for a secure, reliable connection
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications

Downloads

Specifications

Country of OriginUnited States
Connection TypeWire
Maximum Operating Temperature (Fahrenheit)221.0
Flame RetardantYes
PackagingKeg
Product ColorTan
Connector StyleTwist On
Minimum Operating Temperature (Fahrenheit)0.0
Maximum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric).34 mm²
Minimum Operating Temperature (Celsius)0.0
Maximum Conductor Size (Metric)4
Maximum Voltage Rating600 V (1000 V in signs, lighting fixtures and luminaries)
Product TypeConnector
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius)105.0
Specifications MetCSA, UL Listed
Maximum Operating Temperature (Fahrenheit) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case40000.0
