3M Products & Supplies

3M™ Performance Plus™ Wire Connector B/G+JUG, 250 per Jug, 2000/Case - 7000058825

Sold As: 2000-Pack
SKU: 7000058825
MPN: 7000058825
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007431510
3M ID: 80611454556
5 Digit UPC: 43151
$947.05 ($0.47 / Count)
Hurry up! Current stock:

Product Description

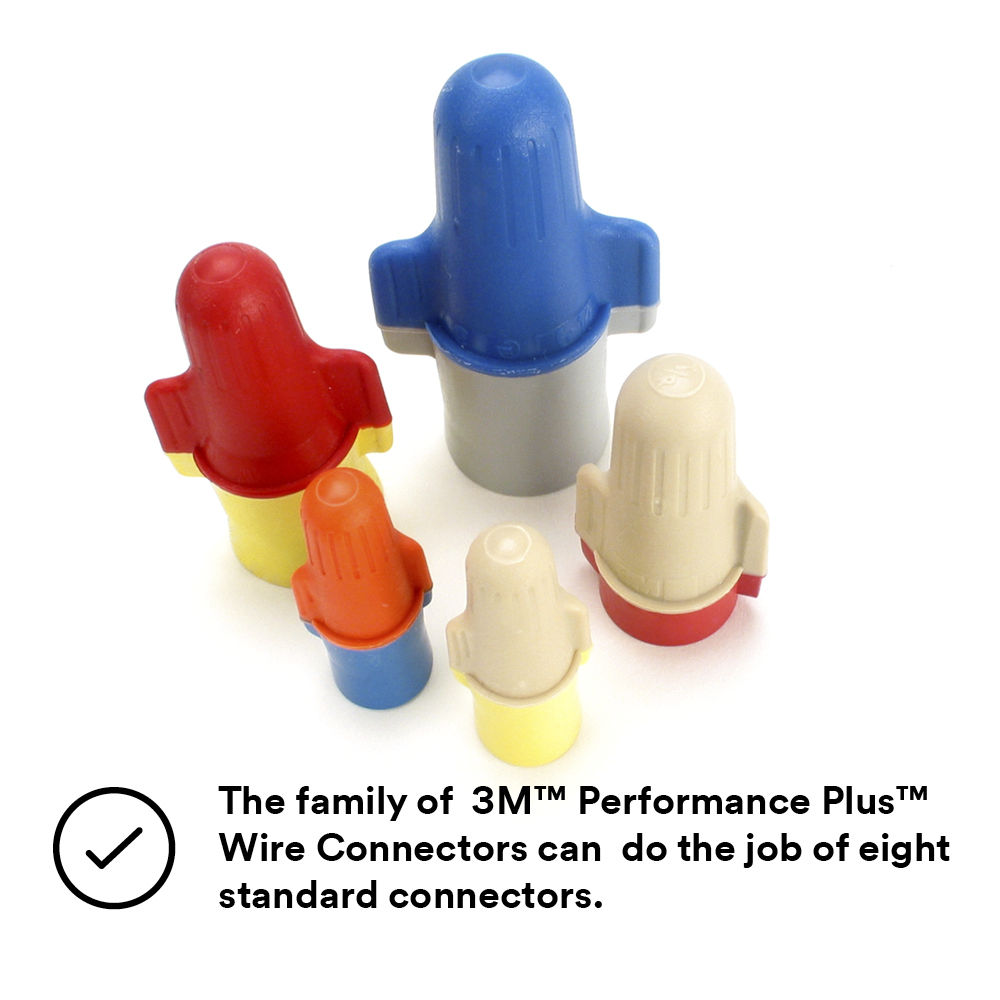

3M™ Performance Plus™ Wire Connectors B/G+ are constructed to work with a wire range between 4 #14 to 6 #10 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus™ connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.

Features

  • Strong bite for a secure, reliable connection

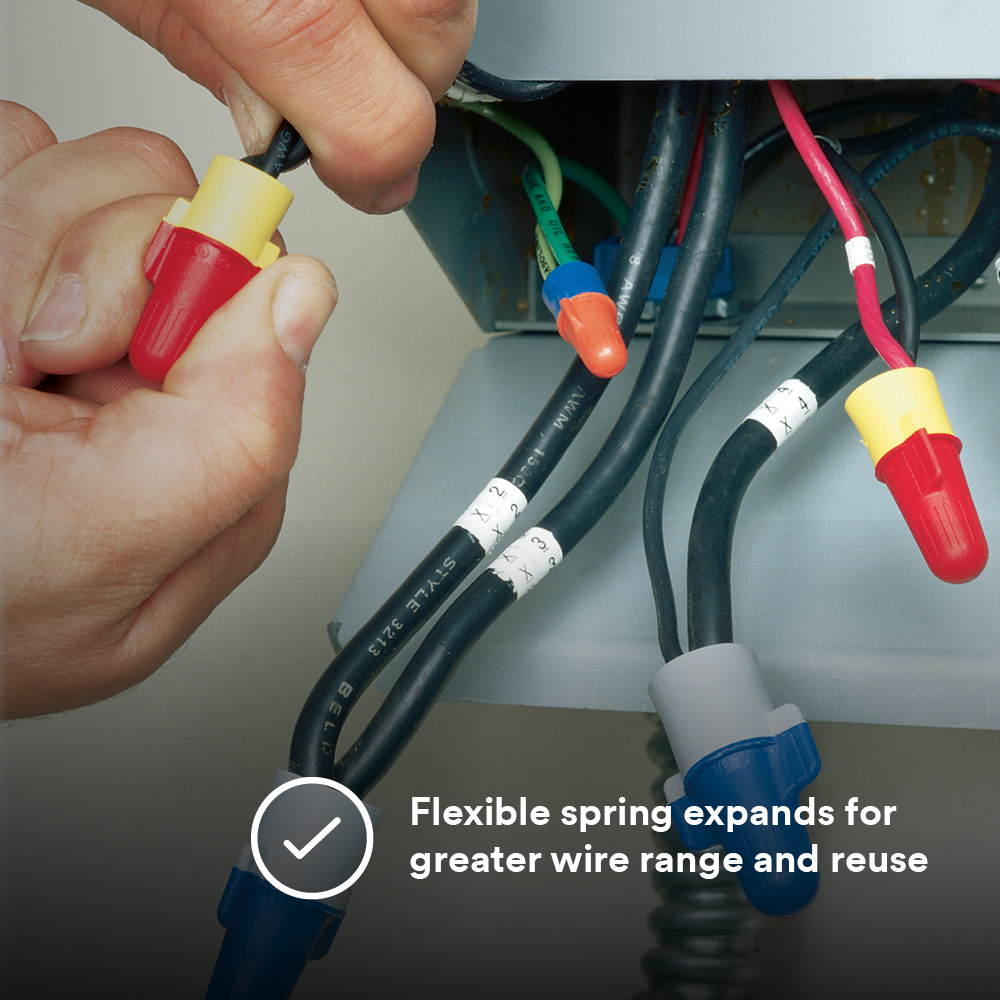

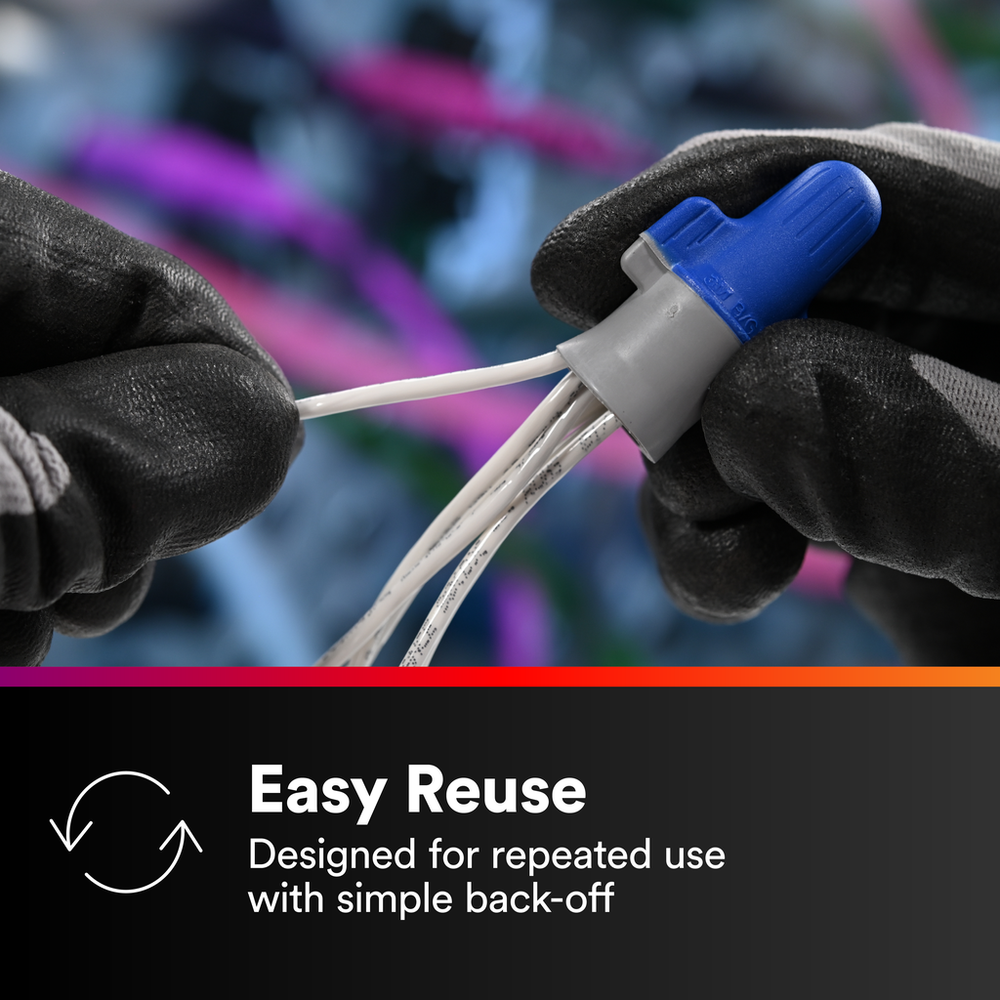

  • Flexible spring expands for greater wire range and reuse
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • UL Listed
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
PackagingJug
Maximum Conductor Size (Metric)16
Specifications MetCSA, UL Listed
Flame RetardantYes
Boxes per Case8.0
Connector StyleTwist On
Maximum Voltage Rating600 V (1000 V in signs, lighting fixtures and luminaries)
Maximum Conductor Size (Imperial)6 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Metric)2.5 mm²
Product ColorBlue
Minimum Operating Temperature (Fahrenheit)0.0
Product TypeConnector
Minimum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)0.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection TypeWire
Maximum Operating Temperature (Celsius)105.0
