3M™ Performance Plus™ Wire Connectors B/G+ - 7010351775

Name: 3M™ Performance Plus™ Wire Connectors B/G+ - 7010351775
Brand: 3M Products & Supplies
SKU: 7000058825
Price: 947.05 USD
Availability: InStock

Sold As: 2000-Pack

SKU: 7000058825

MPN: 7000058825

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00054007431510

3M ID: 80611454556

5 Digit UPC: 43151

$947.05 ($0.47 / Count)

Hurry up! Current stock:

Quantity:

Product Description

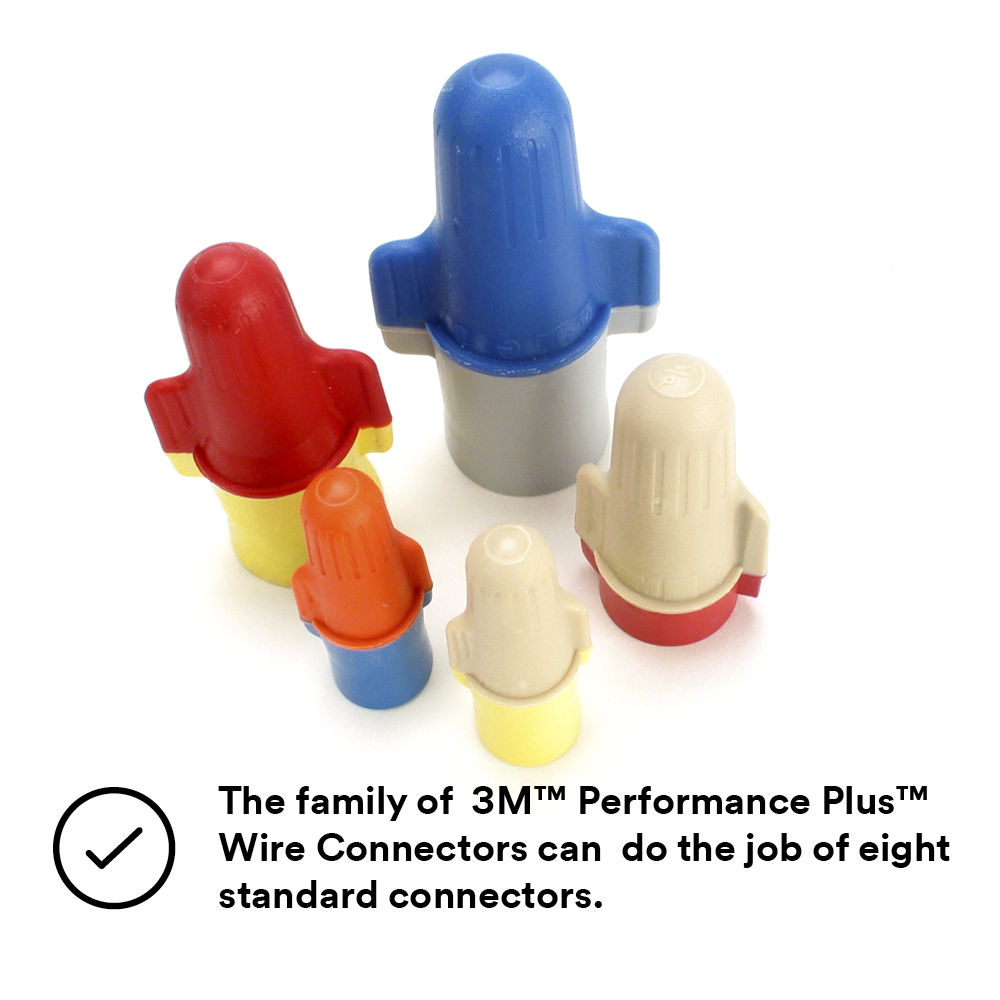

3M™ Performance Plus™ Wire Connectors B/G+ are constructed to work with a wire range between 4 #14 to 6 #10 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus™ connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.

Features

Dual color coded: one connector does the job of two traditional connectors in the majority of applications
UL Listed
Flexible spring expands for greater wire range and reuse
Strong bite for a secure, reliable connection

Specifications

Country of Origin	United States
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Maximum Conductor Size (Metric)	16
Flame Retardant	Yes
Connector Style	Twist On
Maximum Conductor Size (Imperial)	6 AWG
Maximum Operating Temperature (Fahrenheit)	221.0
Minimum Conductor Size (Metric)	2.5 mm²
Product Color	Blue
Minimum Operating Temperature (Fahrenheit)	0.0
Product Type	Connector
Minimum Conductor Size (Imperial)	14 AWG
Maximum Operating Temperature (Celsius) UOM	Degree
Minimum Operating Temperature (Celsius)	0.0
Connection Type	Pigtail
Maximum Operating Temperature (Celsius)	105.0
