3M Products & Supplies

3M Performance Plus Wire Connector T/R+POUCH, 100 per Pouch - T/R+BOX

Sold As: 1000-Pack
SKU: 7100127165
MPN: 7100127165
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128544546
3M ID: 80000209744
5 Digit UPC: 54454
$224.75 ($0.22 / Count)
Hurry up! Current stock:

Product Description

Overview

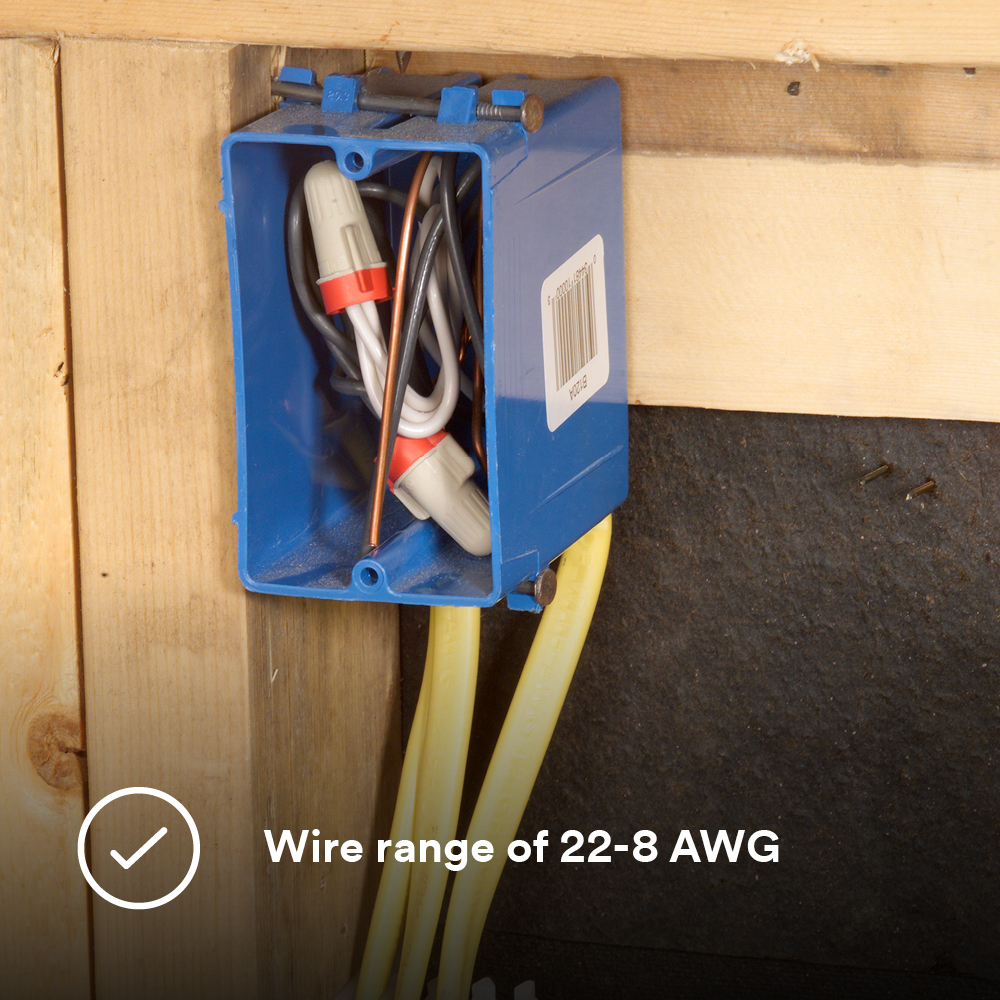

  • Use with copper conductors ranging from 22 to 8 AWG
  • The T/R+ is dual color-coded so this 1 connector replaces your traditional tan and red
  • 100 connectors/pouch or 1000/case
  • UL Listed and CSA Certified
  • One connector replaces 3 (yellow, red & tan) in the majority of all field applications
  • Made of polypropylene and thermoplastic elastomer material

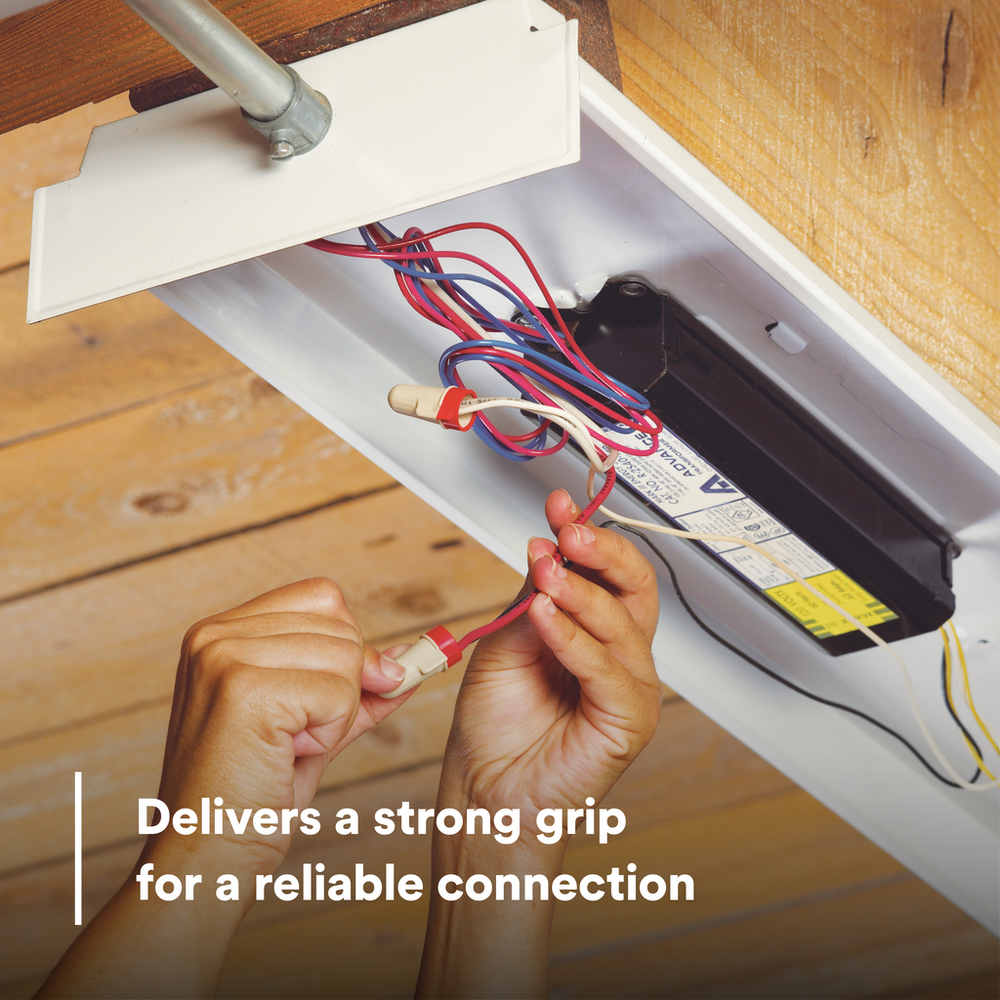

  • Offers a strong bite in a pigtail application so you get a long-lasting connection
  • Use on building wire rated 600V and on signs, fixtures or luminaires rated 1000V
  • Ideal for many applications including industrial and residential construction, automotive and appliance applications
  • Use a 3M™ Wire Connector T/R+ to electrically connect two or more conductor ends in a pigtail application and insulate the connection.
  • Tan/red connector is flame-retardant and handles well in temperatures up to 221 degrees F (105 degrees C)

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
Spec Sheet



Specifications

Maximum Operating Temperature (Celsius)105 Degree Celsius
Flame RetardantYes
Connection TypeWire
Product TypeConnector
Maximum Operating Temperature (Fahrenheit)221 Degree Fahrenheit
Connector StyleTwist On
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
PackagingPouch
Agency ApprovalsCE, CSA, UL
Minimum Wire Gauge22 AWG
Maximum Recommended Voltage Rating600 V
ColorTan/Red
Conductor Sizes22 - 8 AWG
Family3M™ Performance Plus Wire Connector
Maximum Wire Gauge8 AWG
RoHS 2011/65/EU CompliantYes
