3M Products & Supplies

3M Performance Plus Wire Connector R/Y+POUCH, 100 per pouch - R/Y+BOX

Sold As: 1000-Pack
SKU: 7100127164
MPN: 7100127164
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007431548
3M ID: 80000209736
5 Digit UPC: 43154
$233.74 ($0.23 / Count)
Hurry up! Current stock:

Product Description

Overview

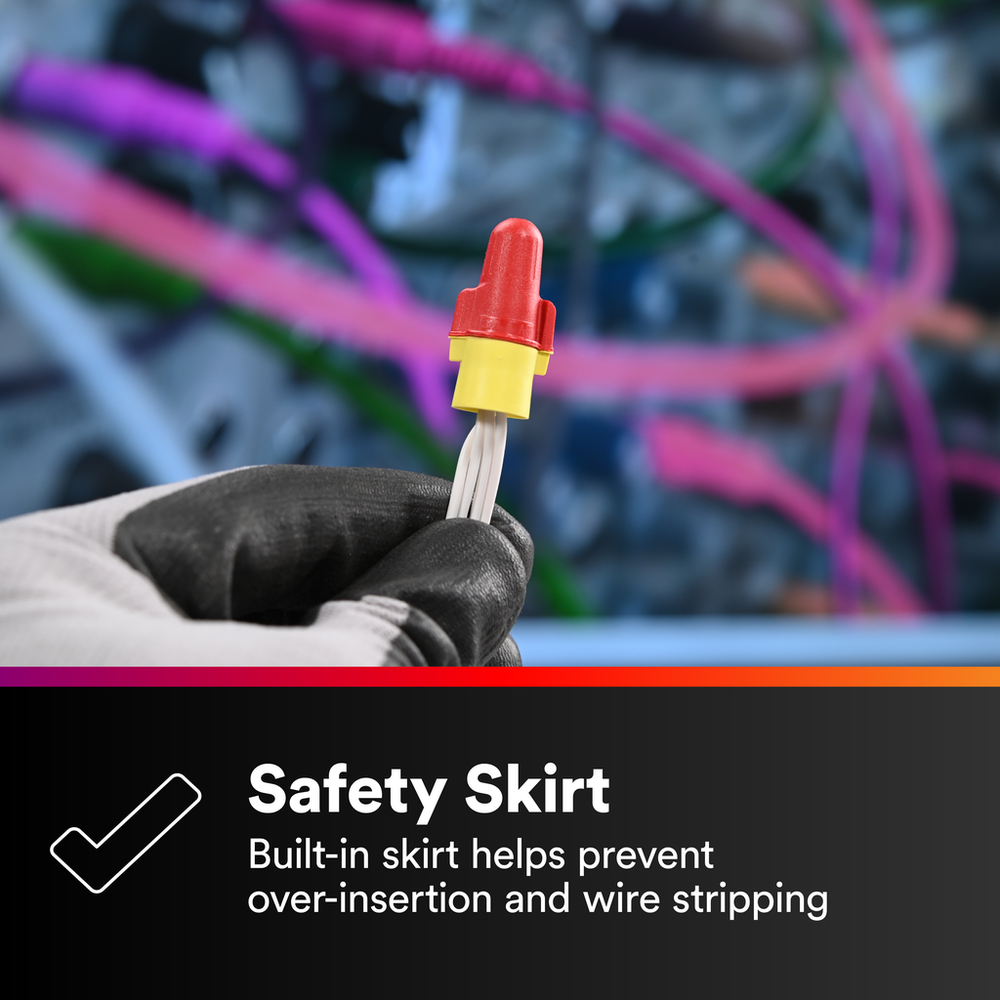

  • The R/Y+ is dual color-coded so this 1 connector replaces your traditional red and yellow connectors

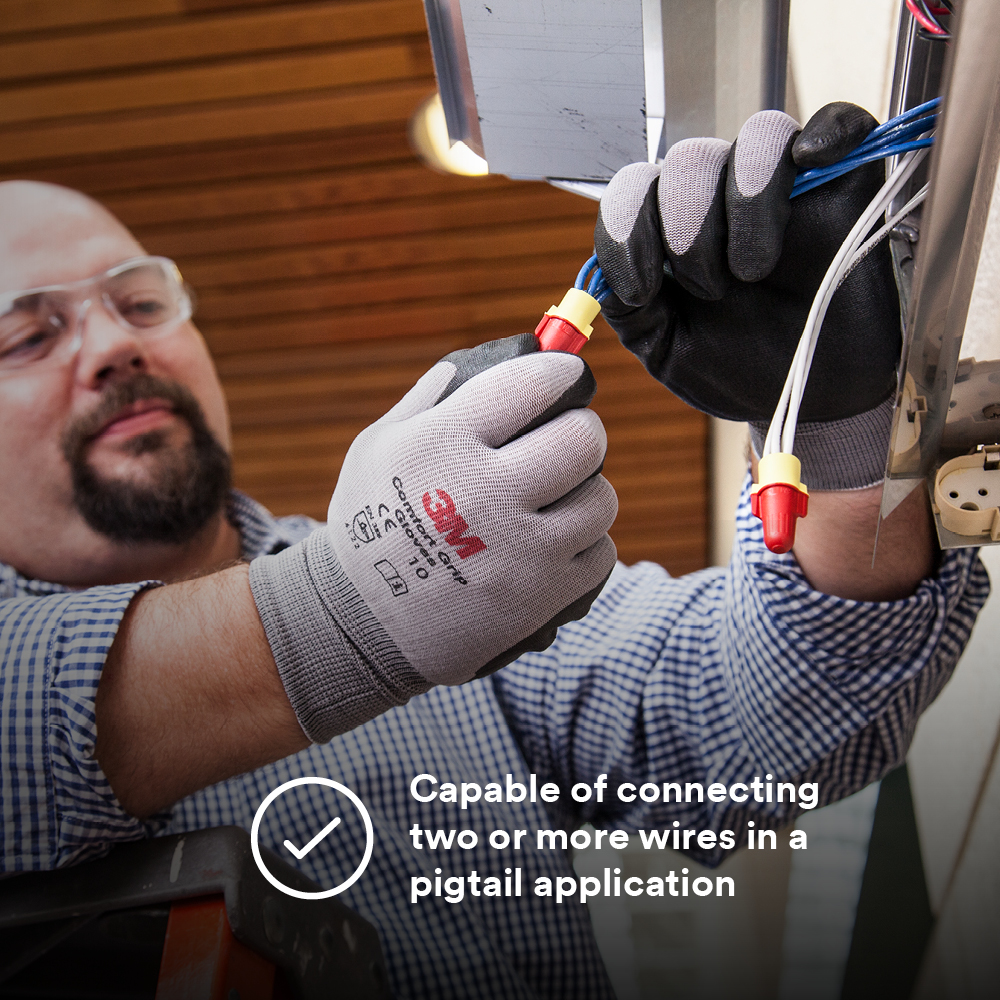

  • Offers a strong bite in a pigtail application for a long-lasting connection
  • Built with polypropylene and thermoplastic elastomer material
  • 2#18-2#8-5#12 AWG, Red with Yellow skirt, 100 per box, 1000 per case
  • Use on building wire rated 600V and on signs, fixtures or luminaires rated 1000V
  • Great for all types of jobs - from industrial and residential construction, to automotive, marine and appliance applications

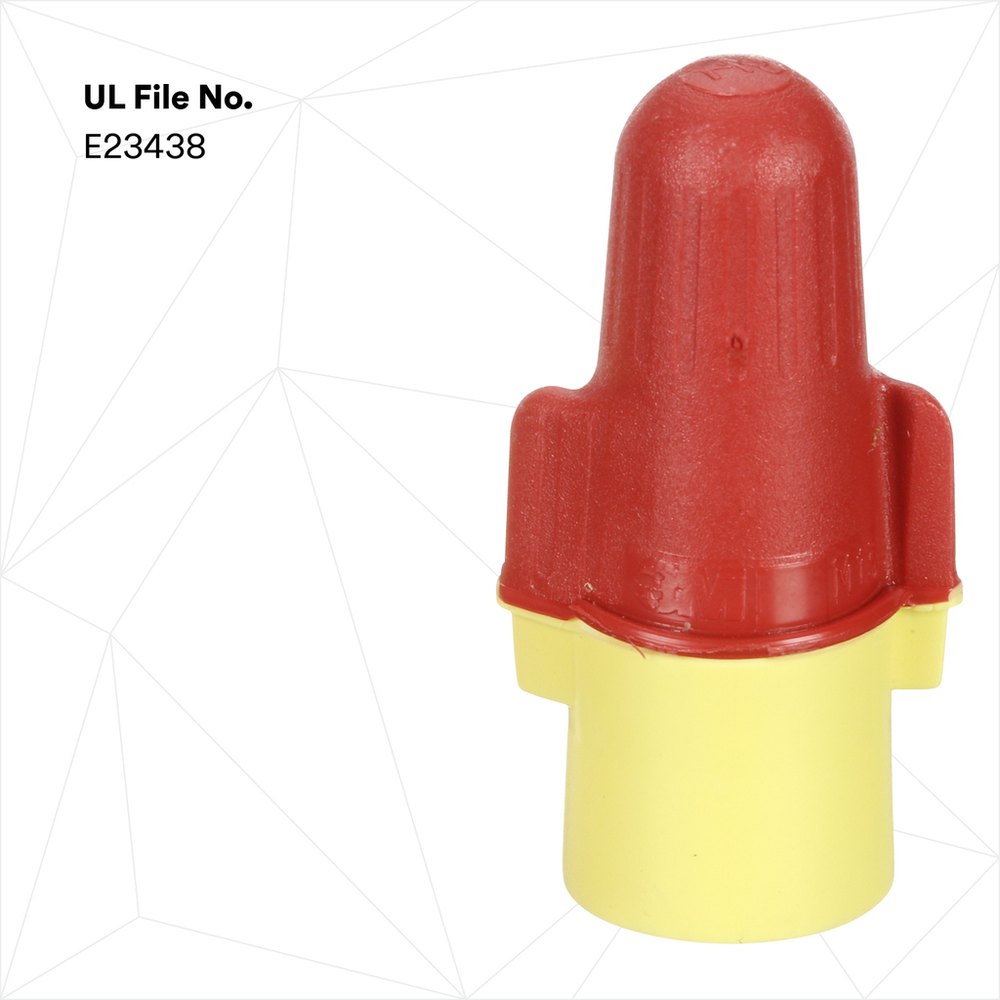

  • UL Listed and CSA Certified
  • Includes 100 connectors/pouchand 1000 connectors/case
  • Use with copper conductors ranging from 22 to 8 AWG
  • An expandable spring lets you take in more wire uptake and reuse
  • Red/yellow connector is flame-retardant and operates in temperatures up to 221 degrees F (105 degrees C)
  • R/Y + replaces both red and yellow wing style connectors.This simplifies selection of the right connector for a wide range of wiring jobs. There's also less inventory to manage, and a better chance you'll have the connector you need to do every job.

Legal Disclaimer

  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
Spec Sheet



Specifications

PackagingPouch
Maximum Operating Temperature (Celsius)105 Degree Celsius
Product TypeConnector
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection TypeWire
Flame RetardantRoHS 2011/65/EU Compliant
Maximum Operating Temperature (Fahrenheit)221 Degree Fahrenheit
Connector StyleTwist On
RoHS 2011/65/EU CompliantYes
Maximum Wire Gauge8 AWG
Agency ApprovalsUL, CE, IEC, and CSA
Family3M™ Performance Plus Wire Connector
Minimum Wire Gauge22 AWG
Conductor Sizes22 - 8 AWG
Maximum Recommended Voltage Rating600 V
ColorRed/Yellow
