3M Products & Supplies

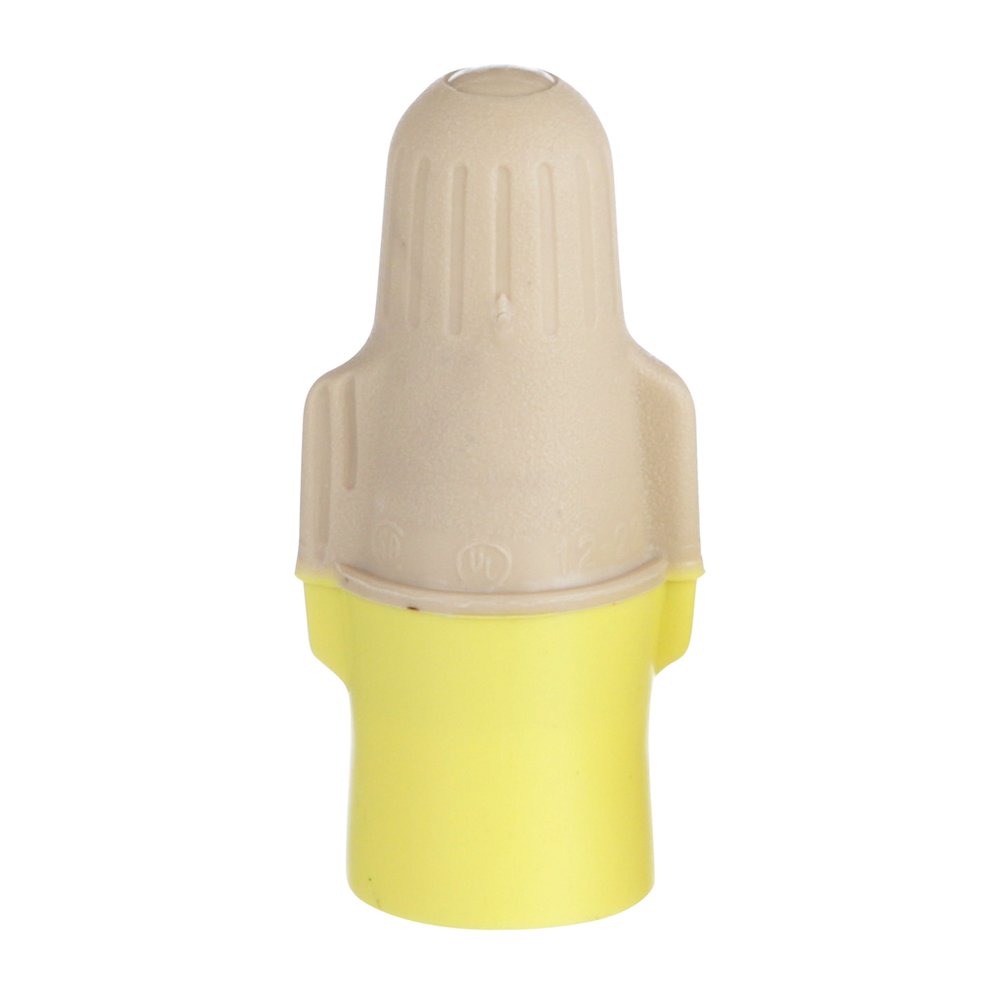

3M™ Performance Plus™ Wire Connector T/Y+POUCH, 100 per Pouch, 1000/Case - 7100127163

Sold As: 1000-Pack
SKU: 7100127163
MPN: 7100127163
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128552183
3M ID: 80000209751
5 Digit UPC: 55218
$167.82 ($0.17 / Count)
Hurry up! Current stock:

Product Description

3M™ Performance Plus™ Wire Connectors T/Y+ are constructed to work with a wire range between 2 #22 to 3 #12 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus™ connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.

Features

  • UL Listed
  • Flexible spring expands for greater wire range and reuse
  • Strong bite for a secure, reliable connection
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Product TypeConnector
Flame RetardantYes
PackagingBox
Minimum Operating Temperature (Celsius)0.0
Connection TypePigtail
Minimum Operating Temperature (Fahrenheit)0.0
Minimum Conductor Size (Imperial)22 AWG
Maximum Conductor Size (Imperial)12 AWG
Connector StyleTwist On
Units per Case1000.0
Minimum Conductor Size (Metric).34 mm²
Product ColorTan
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Specifications MetCSA, UL Listed
Maximum Voltage Rating600 V
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Metric)4
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
