3M Products & Supplies

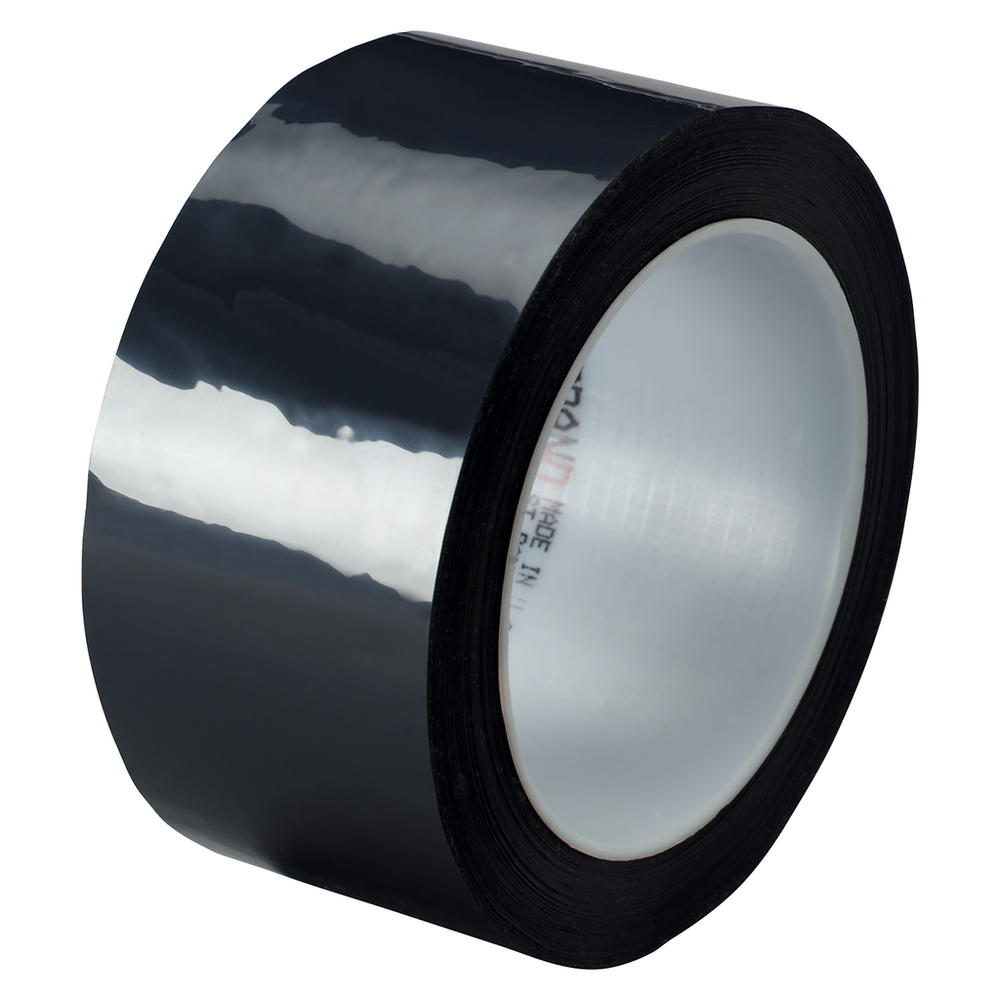

3M™ Photo Film Splicing Tape 8422, Black, 1 in x 72 yd, 2.5 mil, 2.5 mil, 36 Roll/Case - 7000048378

Sold As: 36-Pack
SKU: 7000048378
MPN: 7000048378
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200037665
3M ID: 70006002870
5 Digit UPC: 3766
$2,405.49 ($66.82 / Count)
Hurry up! Current stock:

Product Description

Designed for splicing of photographic film processing, 3M™ Photo Film Splicing Tape 8422 is a black splicing tape featuring a thin, yet strong, polyester backing. It features an aggressive, versatile rubber adhesive that is both solvent and chemical resistant.

Features

  • Aggressive rubber adhesive grabs quickly and adheres well to a variety of films
  • Used for splicing of most photographic film and web processing
  • Black is opaque to light and works for systems with automatic sensors
  • Excellent solvent and chemical resistance, especially those found in photographic processes
  • Remains flexible at -60ºF (-50ºC) and is dimensionally stable up to 300ºF (150ºC)
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginMexico
Backing Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Imperial) UOMmil
Tensile Strength (Imperial)43.0
Backing Thickness (Imperial) UOMmil
Backing MaterialPolyester
Maximum Operating Temperature (Fahrenheit)300.0
Elongation at Break140%
Overall Length (Imperial)72.0
Overall Length (Metric)65.83
Minimum Operating Temperature (Celsius)-50.0
Total Tape Thickness without Liner (Imperial)2.559
Adhesion Strength (Metric)54.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing Thickness (Imperial)1.4
Total Tape Thickness without Liner (Metric)75.0
Overall Width (Metric)25.4
Tensile Strength (Metric)754.0
IndustriesGeneral Industrial, Print
Backing Thickness (Metric)0.04
Overall Width (Imperial)1.0
Minimum Operating Temperature (Fahrenheit)-60.0
Maximum Operating Temperature (Celsius)149.0
Shelf Life UOMMonth
Number of Adhesive SidesSingle-sided
Adhesion Strength50.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Product ColorBlack
Minimum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Imperial)1.1
Backing (Carrier) Thickness (Imperial)1.4
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Adhesive TypeRubber
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture)18.0
Back Side Adhesive Thickness (Metric) UOMmm
Application MethodRoll
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Metric)0.04
Overall Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product FormRoll
Adhesion Strength (Metric) UOMN/100mm
Backing (Carrier) MaterialPolyester
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric) UOMmm
Units per Case36.0
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Thickness (Imperial)2.5
