3M Products & Supplies

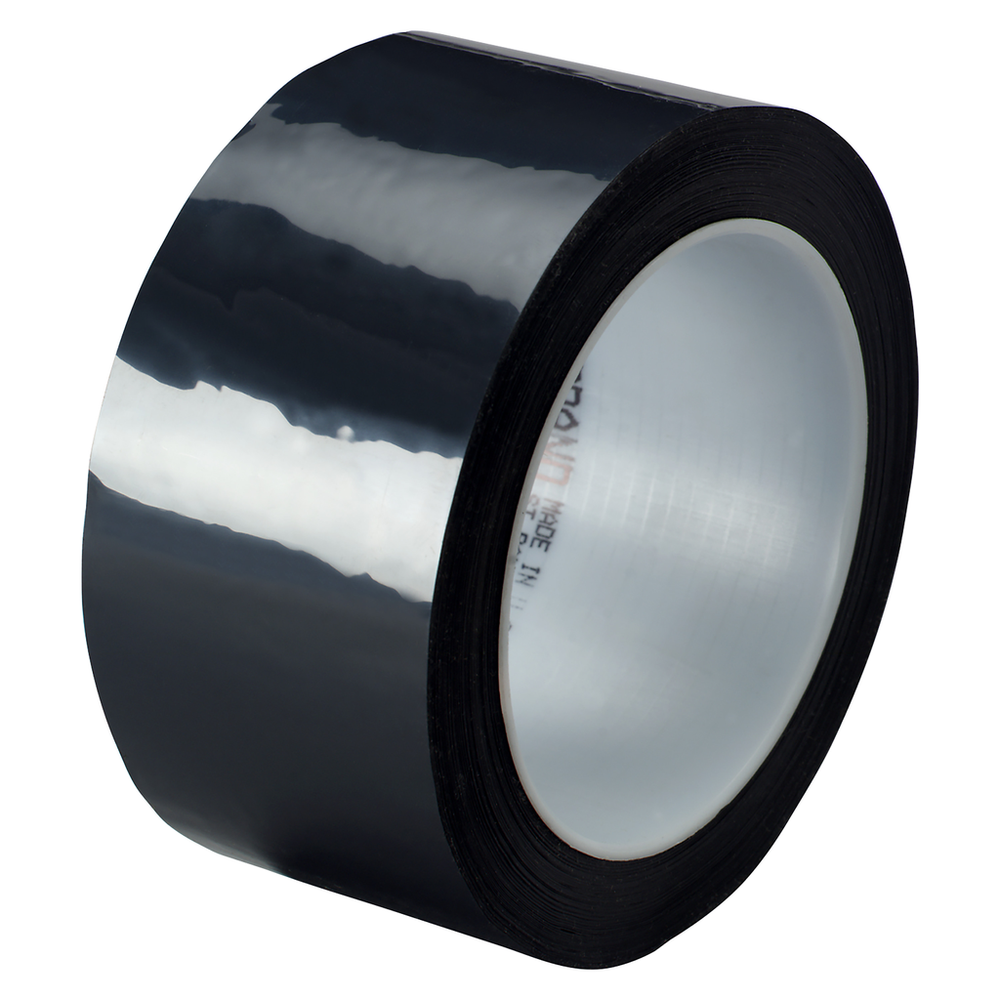

3M™ Photo Film Splicing Tape 8422, Black, 2 in x 72 yd, 2.5 mil, 2.5 mil, 24 Roll/Case - 7000048417

Sold As: 24-Pack
SKU: 7000048417
MPN: 7000048417
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200045875
3M ID: 70006026077
5 Digit UPC: 4587
$3,207.32 ($133.64 / Count)
Hurry up! Current stock:

Product Description

Designed for splicing of photographic film processing, 3M™ Photo Film Splicing Tape 8422 is a black splicing tape featuring a thin, yet strong, polyester backing. It features an aggressive, versatile rubber adhesive that is both solvent and chemical resistant.

Features

  • Excellent solvent and chemical resistance, especially those found in photographic processes
  • Used for splicing of most photographic film and web processing
  • Black is opaque to light and works for systems with automatic sensors
  • Remains flexible at -60ºF (-50ºC) and is dimensionally stable up to 300ºF (150ºC)
  • Aggressive rubber adhesive grabs quickly and adheres well to a variety of films
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginMexico
Backing MaterialPolyester
Backing Thickness (Imperial)1.4
Shelf Life in Months (From Date of Manufacture) UOMMonths
Tensile Strength (Imperial)43.0
Back Side Adhesive Thickness (Imperial)1.1
Back Side Adhesive Thickness (Imperial) UOMmil
Number of Adhesive SidesSingle-sided
IndustriesGeneral Industrial, Print
Overall Thickness (Imperial)2.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Backing Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Overall Height (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Adhesive TypeRubber
Total Tape Thickness without Liner (Metric) UOMmm
Adhesion Strength (Metric) UOMN/100mm
Product ColorBlack
Minimum Operating Temperature (Fahrenheit) UOMDegree
Elongation at Break140%
Overall Width (Imperial)2.0
Backing (Carrier) MaterialPolyester
Overall Length (Imperial)72.0
Backing (Carrier) Thickness (Metric)0.04
Units per Case24.0
Product FormRoll
Tensile Strength (Metric)753.0
Maximum Operating Temperature (Celsius)149.0
Minimum Operating Temperature (Fahrenheit)-60.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Adhesion Strength (Metric)54.0
Total Tape Thickness without Liner (Imperial)2.559
Overall Height (Metric)0.1
Shelf Life in Months (From Date of Manufacture)18.0
Backing Thickness (Metric)0.03
Overall Length (Metric) UOMm
Shelf Life UOMMonth
Backing (Carrier) Thickness (Imperial)1.4
Adhesion Strength50.0
Application MethodRoll
Back Side Adhesive Thickness (Metric) UOMmm
Tensile Strength (Imperial) UOMlb/in
Overall Length (Imperial) UOMyd
Overall Height (Imperial)2.5
Overall Width (Metric)50.8
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Thickness (Imperial) UOMmil
Overall Length (Metric)66.0
Total Tape Thickness without Liner (Metric)75.0
Minimum Operating Temperature (Celsius)-50.0
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)300.0
Backing Thickness (Imperial) UOMmil
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
